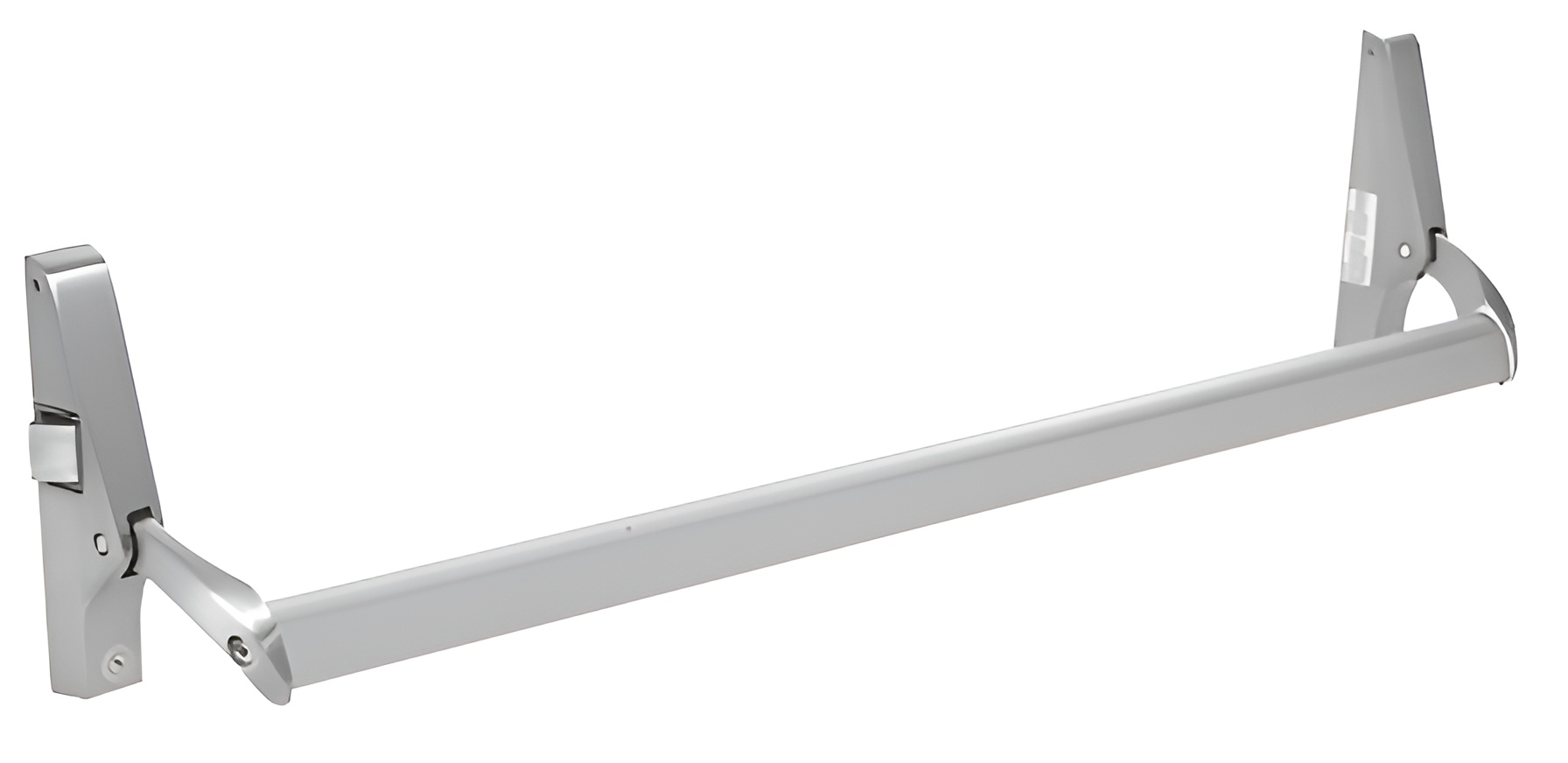

CRL DL1190LHRA Satin Aluminum Left-Hand Cross Bar Panic Exit DeviceC.R. Laurence DL1190LHRA Satin Aluminum Cross Bar Panic Exit Device - Left Hand Reverse Bevel Rim is designed for both security and life safety in a variety of commercial environments. This durable exit device features a 42-inch (1.07 m) crossbar that can be conveniently cut to size, ensuring a perfect fit for your narrow, medium, or wide stile aluminum doors, as well as hollow metal doors. The DL1190 Series is available in both Rim and Concealed Vertical Rod configurations, providing flexibility to meet your project needs. With its standard surface-mounted roller type rim strike, installation is straightforward. For added security, a keyed entry can be integrated using the optional CRL DL911SC Series rim cylinder. This device is handed and non-reversible, so it’s essential to determine the handing from the outside of the door before installation. Built from robust aluminum and finished in a sleek satin aluminum, the DL1190LHRA not only meets ANSI A156.3 Grade 1 certification but also enhances the aesthetic of any entryway. Included with your purchase is all necessary mounting hardware, making installation efficient and hassle-free. Experience peace of mind and reliable access control with C.R. Laurence's quality craftsmanship in exit solutions.
Satin Aluminum Cross Bar Panic Exit Device - Left Hand Reverse Bevel Rim
- Available as Concealed Vertical Rod and Rim Exit Devices
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This
Rim Exit Device is handed. Handing is determined from the
OUTSIDE or
LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a
LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a
RHRB (Right Hand Reverse Bevel).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Certification: ANSI A156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Door Width: 48
Finish/ Color:: Satin Aluminum
Handing: Non Handed
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 1-3/4
Model: DL1190
Panic Bar Base Height: 2
Panic Bar Projection: 4-5/8
Panic Bar Width Net: 48
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4
Panic Head Height: 7-5/16
Panic Type: Surface Vertical Rods
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL911SCKDA, DL911SCKAA
Shipping Limitations: None
Similar: 311095LC4313
UL Listed: Yes
