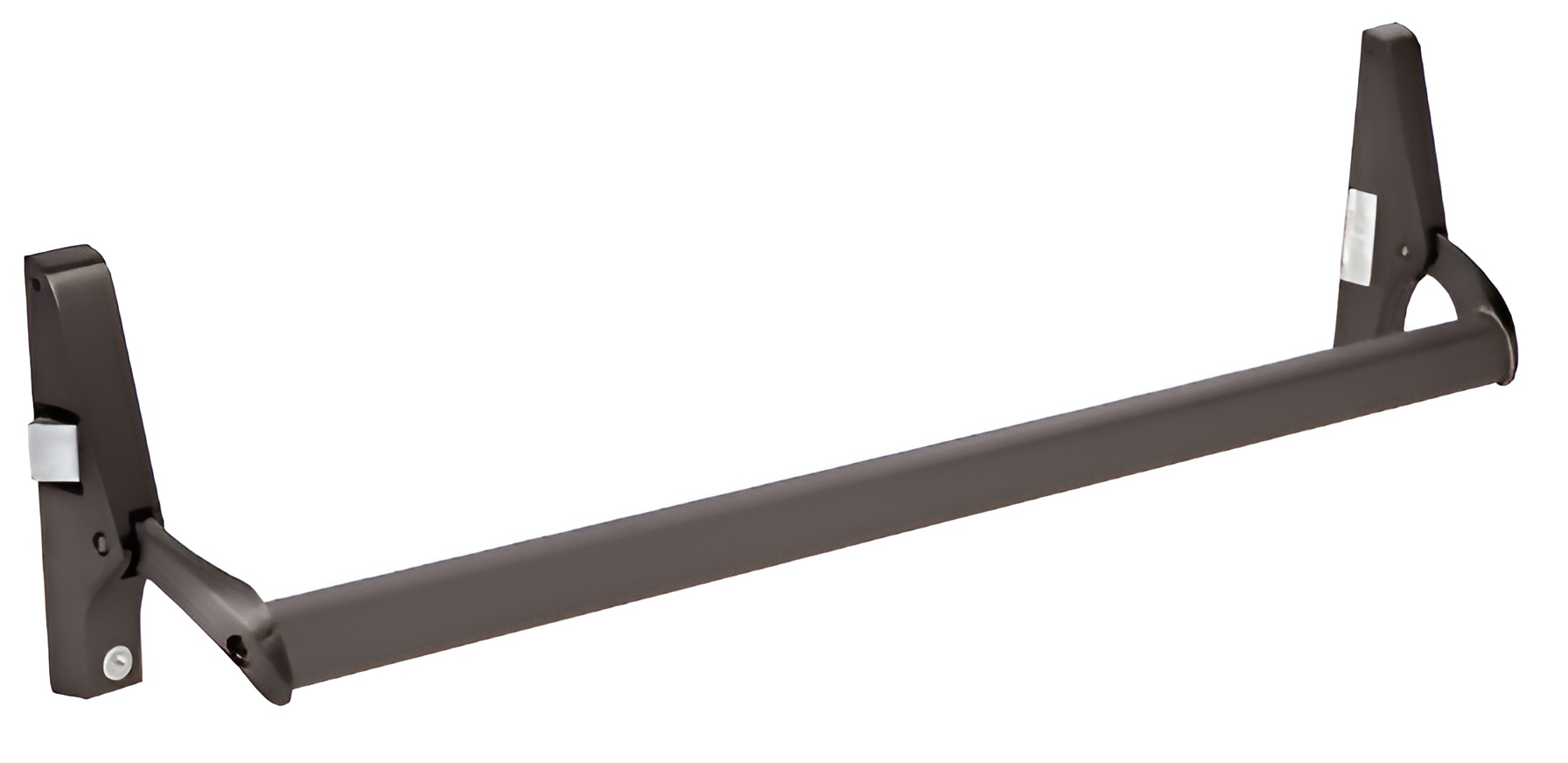

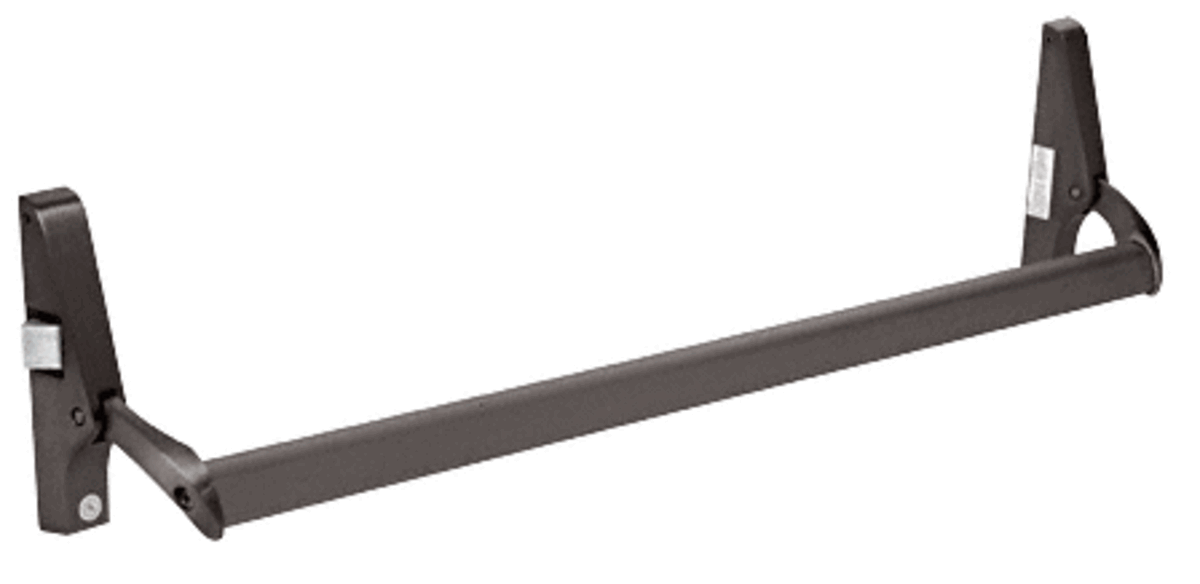

CRL DL1190LHRDU Dark Bronze Left-Hand Cross Bar Panic Exit DeviceC.R. Laurence DL1190LHRDU Dark Bronze Cross Bar Panic Exit Device - Left Hand Reverse Bevel Rim offers a robust solution for enhancing security and ensuring life safety in commercial spaces. This exit device combines durability with ease of use, making it an essential addition to any building’s access control system. Designed for versatility, the DL1190 series is compatible with narrow, medium, and wide stile aluminum doors as well as hollow metal doors. The standard 42" (1.07 m) crossbar can be easily cut to size, allowing for a perfect fit on your specific door. Available in two standard architectural finishes, the dark bronze option adds an elegant touch while ensuring long-lasting performance. The device is surface mounted with a roller type rim strike supplied for smooth operation. It features a handing configuration, specifically designed for left-hand reverse bevel applications. For keyed entry, optional cylinders from the CRL DL911SC series are available. With a certification of ANSI A156.3 Grade 1, this panic exit device is engineered for reliability. It’s suitable for doors with a thickness of 1-3/4" and a minimum stile width of 1-3/4". The DL1190LHRDU is UL listed, ensuring it meets stringent safety standards. Upgrade your exit solutions today with this dependable and efficient panic exit device.
Dark Bronze Cross Bar Panic Exit Device - Left Hand Reverse Bevel Rim
- Available as Concealed Vertical Rod and Rim Exit Devices
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This
Rim Exit Device is handed. Handing is determined from the
OUTSIDE or
LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a
LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a
RHRB (Right Hand Reverse Bevel).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Certification: ANSI A156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Door Width: 48
Field Sizeable: Yes
Finish/ Color:: Dark Bronze
Handing: Non Handed
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 1-3/4
Model: DL1190
Panic Bar Base Height: 2
Panic Bar Projection: 4-5/8
Panic Bar Width Net: 48
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4
Panic Head Height: 7-5/16
Panic Type: Surface Vertical Rods
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL911SCKDDU, DL911SCKADU
Shipping Limitations: None
Similar: 311095LC4628
UL Listed: Yes
