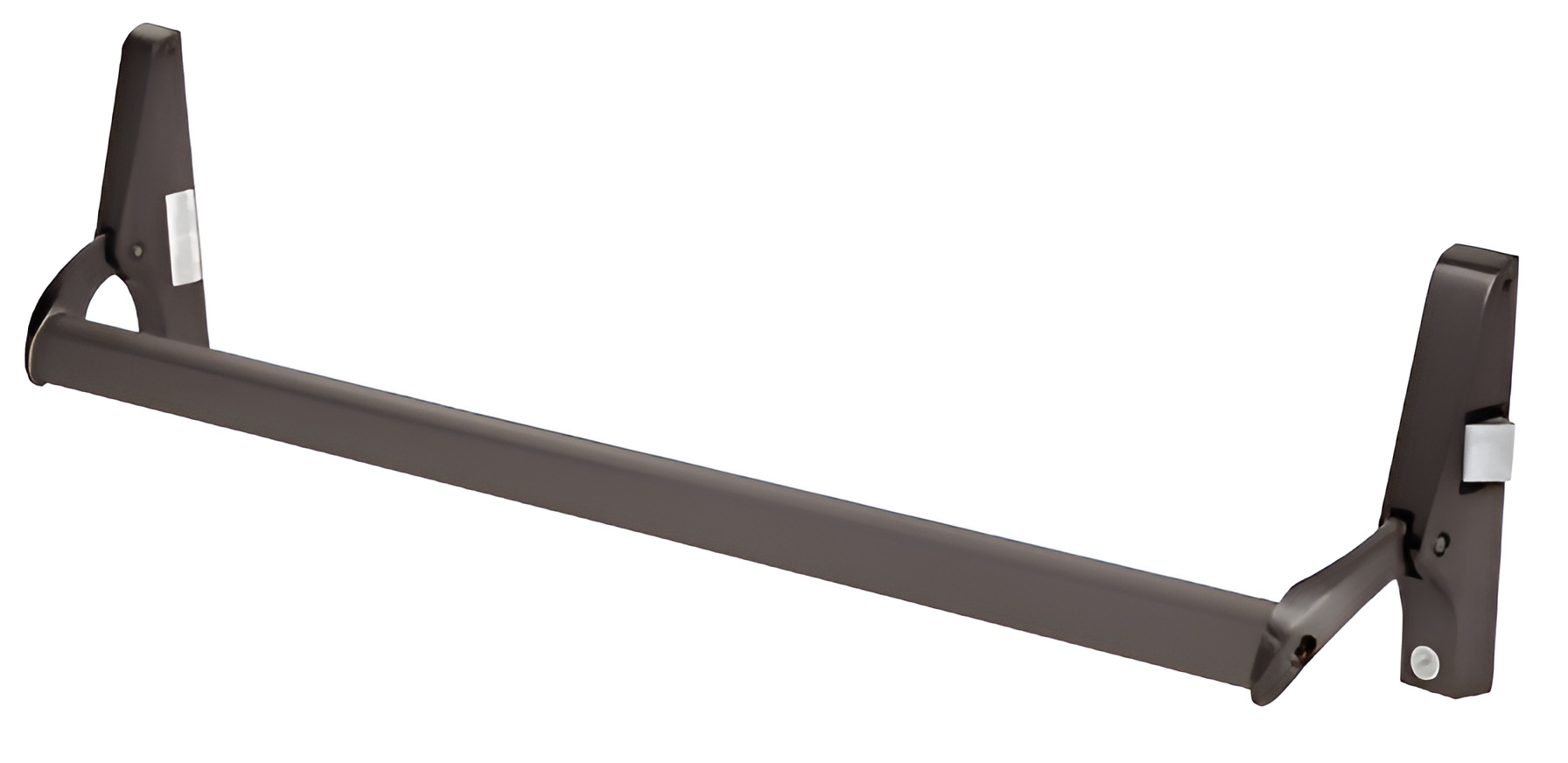

CRL DL1190RHRDU Dark Bronze Right-Hand Cross Bar Panic Exit DeviceC.R. Laurence DL1190RHRDU Dark Bronze Cross Bar Panic Exit Device - Right Hand Reverse Bevel Rim offers a reliable solution for enhancing safety and security in commercial spaces. This exit device is designed for use with narrow, medium, and wide stile aluminum or hollow metal doors, making it versatile for various applications. The 42" (1.07 m) crossbar can be effortlessly cut to size on-site, ensuring a perfect fit for your specific door dimensions. As a part of the DL1190 Series, it features a handed, non-reversible design tailored for right-hand reverse bevel configurations, ensuring precise functionality. Constructed from durable aluminum, the device comes in a striking dark bronze finish, elevating both aesthetics and performance. The standard surface-mounted roller-type rim strike is included, simplifying installation. For added security, a keyed entry can be achieved with the optional CRL DL911SC Series rim cylinder. With a panic bar base height of 2 inches and a projection of 4-5/8 inches, this exit device meets Grade 1 certification standards, assuring you of its quality and reliability. Ideal for various door types, including aluminum, wood, and hollow metal, the DL1190RHRDU is the perfect choice for enhancing safety in your building.
Dark Bronze Cross Bar Panic Exit Device - Right Hand Reverse Bevel Rim
- Available as Concealed Vertical Rod and Rim Exit Devices
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
CRL's DL1190 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 mm) length cross bar that can be field cut to fit your exact door size requirements.
DL1190 Series Rim Panics
• Handed, Non-Reversible
• For Use with Aluminum or Hollow Metal Doors
• Standard Surface Mounted Roller Type Rim Strike Supplied
• Keyed Entry Requires Optional CRL DL911SC Series, or other brand, Rim Cylinder (No Mounting Pad Required)
Product Warning:
This
Rim Exit Device is handed. Handing is determined from the
OUTSIDE or
LOCK SIDE of the door. When outside, if the hinge is on the left, the door will swing out (towards you) the panic device needs to be a
LHRB (Left Hand Reverse Bevel). If the hinge is on the right, the door will swing out (towards you) the Panic Device needs to be a
RHRB (Right Hand Reverse Bevel).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Certification: Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Door Width: 48
Finish/ Color:: Dark Bronze
Handing: Non Handed
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 1-3/4
Model: DL1190
Panic Bar Base Height: 2
Panic Bar Projection: 4-5/8
Panic Bar Width Net: 48
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4
Panic Head Height: 7-5/16
Panic Type: Surface Vertical Rods
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL911SCKDDU, DL911SCKADU
Shipping Limitations: None
Similar: 311095RC4313
UL Listed: Yes
