CRL DL2140BLH 1-1/8" Backset Narrow Stile Left Hand Deadlatch Lock

C.R. Laurence DL2140BLH 1-1/8" Backset Narrow Stile Left Hand Deadlatch Lock is designed to deliver superior security in a sleek, narrow profile. This deadlatch lock features a robust 1/2" (13 mm) throw, crafted from hardened steel for enhanced durability. It accommodates two cylinder backsets-either 31/32" (25 mm) or 1-1/8" (29 mm)-allowing for versatile installation options. One of the standout features of this lock is its field-reversible handing, making it adaptable for left-hand applications. It accepts standard 1-5/32" (29 mm) mortise key or thumbturn cylinders equipped with an AR MS-type cam, providing flexibility in keying systems. Additionally, the key-controlled dogging mechanism ensures added convenience and security. While faceplates and strikes are sold separately, they can be easily sourced with Cat. Nos. DL4515, DL4540, or DL4545 to complete the installation. The aluminum finish not only enhances the lock's aesthetic appeal but also contributes to its longevity against the elements. Ideal for aluminum narrow stile doors, the C.R. Laurence DL2140BLH combines functionality with a modern design, making it a perfect choice for both building professionals and discerning homeowners seeking reliable locking solutions.

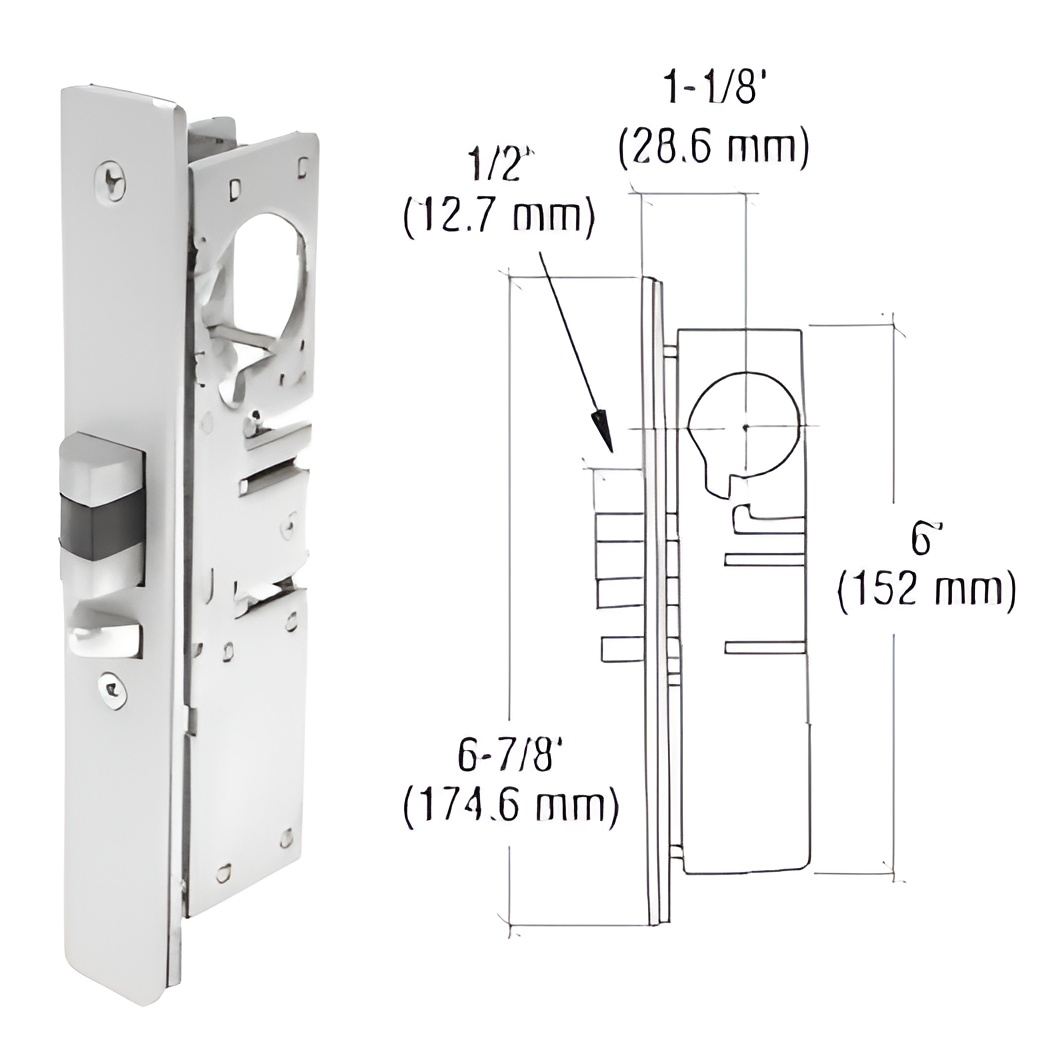

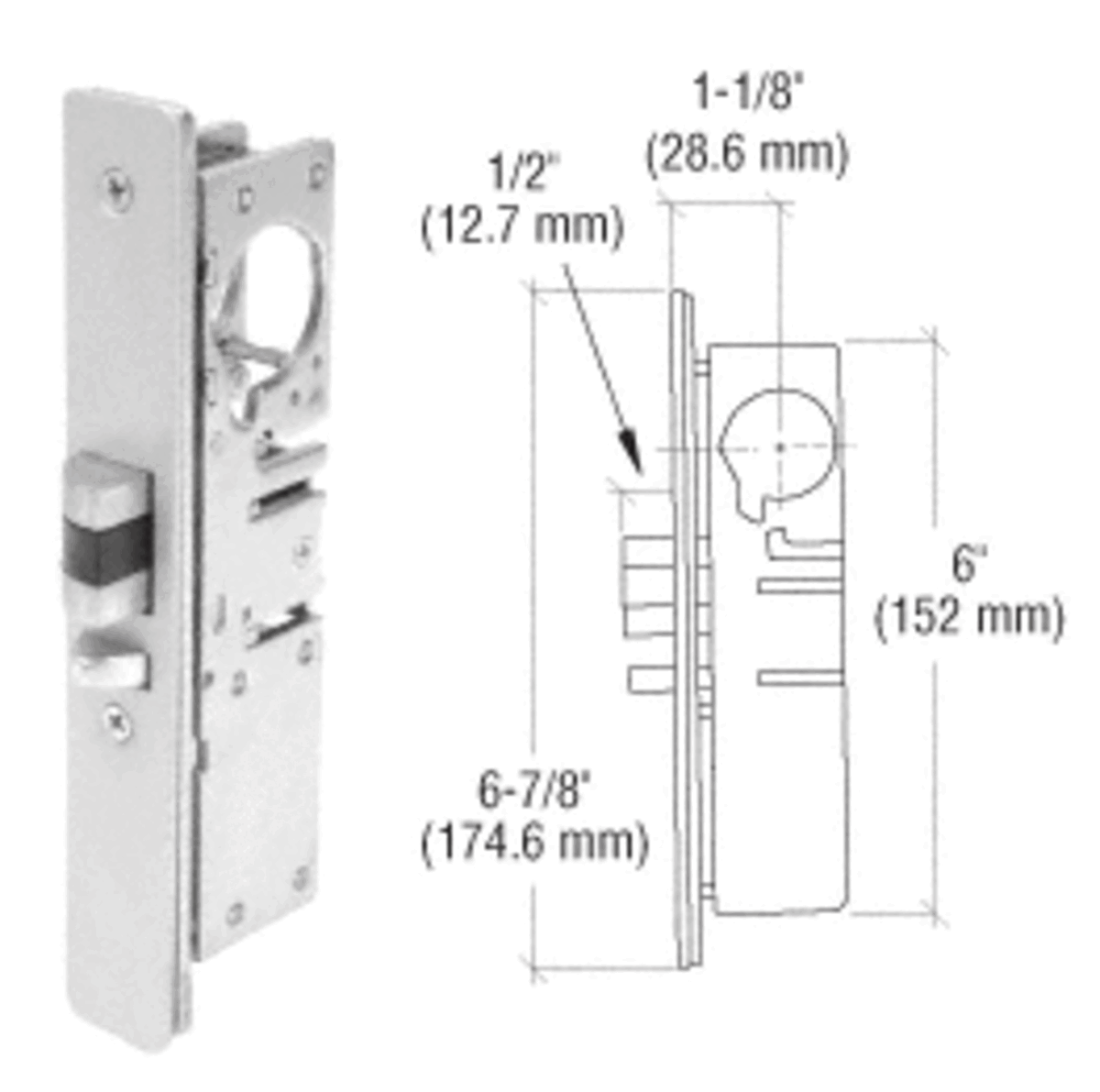

1-1/8" Backset Narrow Stile Left Hand Deadlatch Lock

• 1/2" (13 mm) Throw
• Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
• Field Reversible for Opposite Hand
• Key Controlled Dogging
• Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam
• Faceplate and Strike (Optional)
