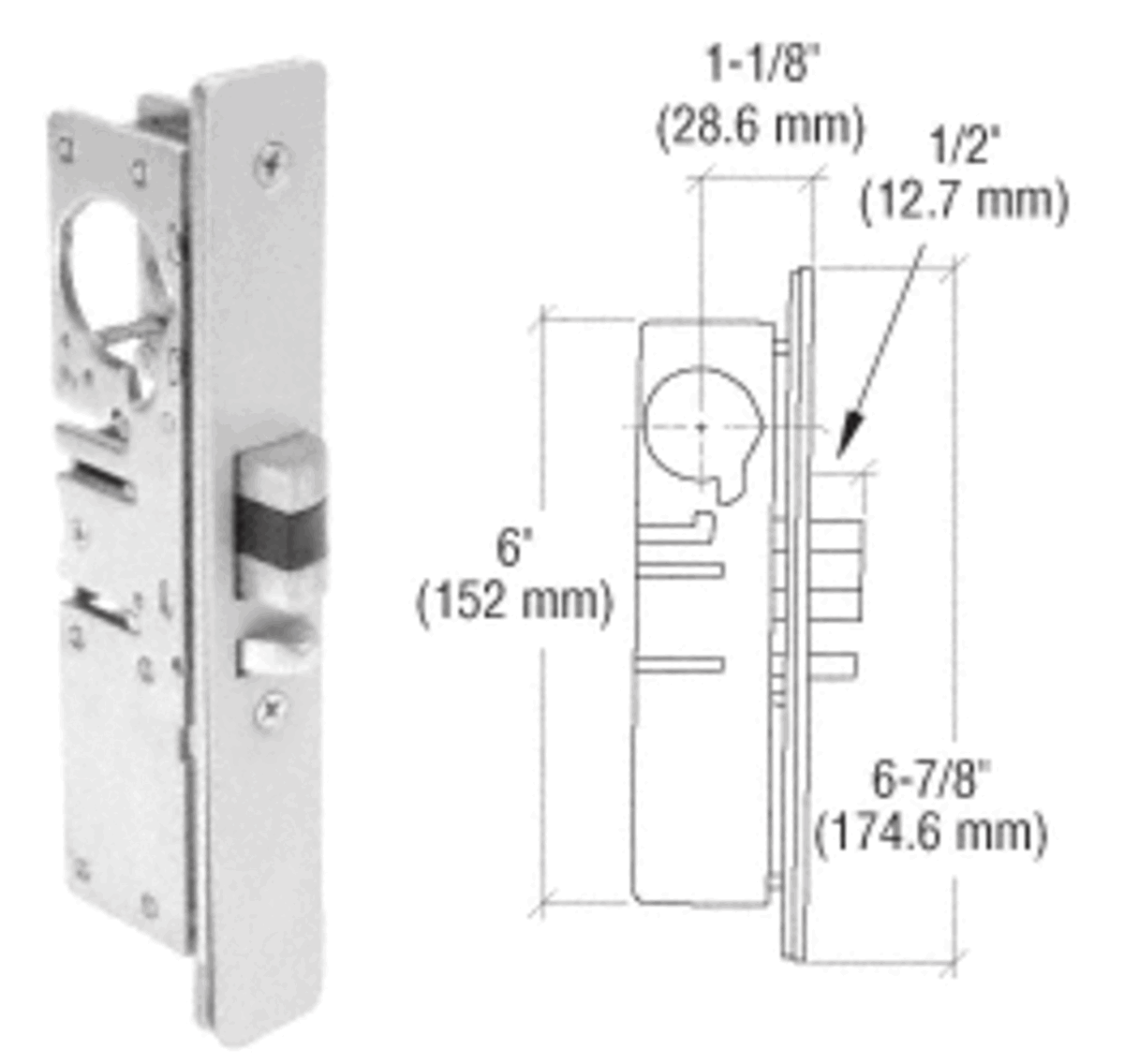

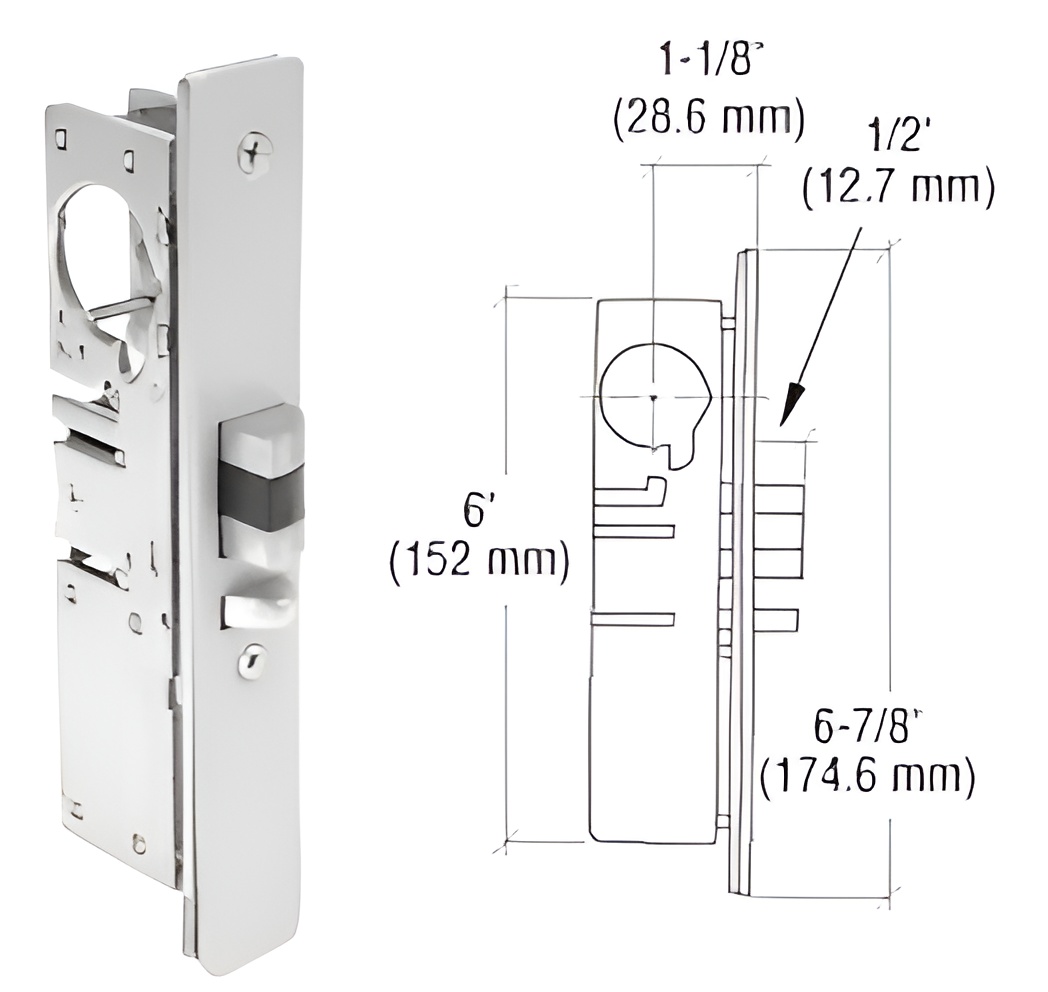

CRL DL2140BRH 1-1/8" Backset Narrow Stile Right-Hand Deadlatch Lock

C.R. Laurence DL2140BRH 1-1/8" Backset Narrow Stile Right Hand Deadlatch Lock offers a reliable solution for securing narrow aluminum doors. This robust deadlatch lock features a 1/2" (13 mm) throw made from hardened steel, ensuring maximum security without compromising on design. With adjustable cylinder backsets available at 31/32" (25 mm) or 1-1/8" (29 mm), this deadlatch is versatile enough to fit various door configurations. Designed for convenience, the DL2140BRH is field reversible, allowing for easy adaptation to opposite-hand installations. Key controlled dogging enhances security, while the lock accommodates standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders equipped with an AR MS-type cam. While faceplates and strikes are sold separately, compatible options include Cat. Nos. DL4515, DL4540, or DL4545. Finished in aluminum, this deadlatch not only provides durability but also complements a variety of architectural styles, making it a practical choice for both building professionals and discerning homeowners. Whether you’re upgrading security or completing a new construction project, the C.R. Laurence DL2140BRH is a dependable choice that combines functionality with sleek design.

1-1/8" Backset Narrow Stile Right Hand Deadlatch Lock

• 1/2" (13 mm) Throw
• Cylinder Backsets: 31/32" or 1-1/8" (25 or 29 mm)
• Field Reversible for Opposite Hand
• Key Controlled Dogging
• Lock Accepts Standard 1-5/32" (29 mm) Diameter Mortise Key or Thumbturn Cylinders with AR MS-Type Cam
• Faceplate and Strike (Optional)
