CRL DL610LEBS Brushed Stainless 6"x10" LH Center Lock with Deadlatch, Entrance Function

CRL DL610LEBS Brushed Stainless 6"x10" LH Center Lock with Deadlatch, Entrance Function

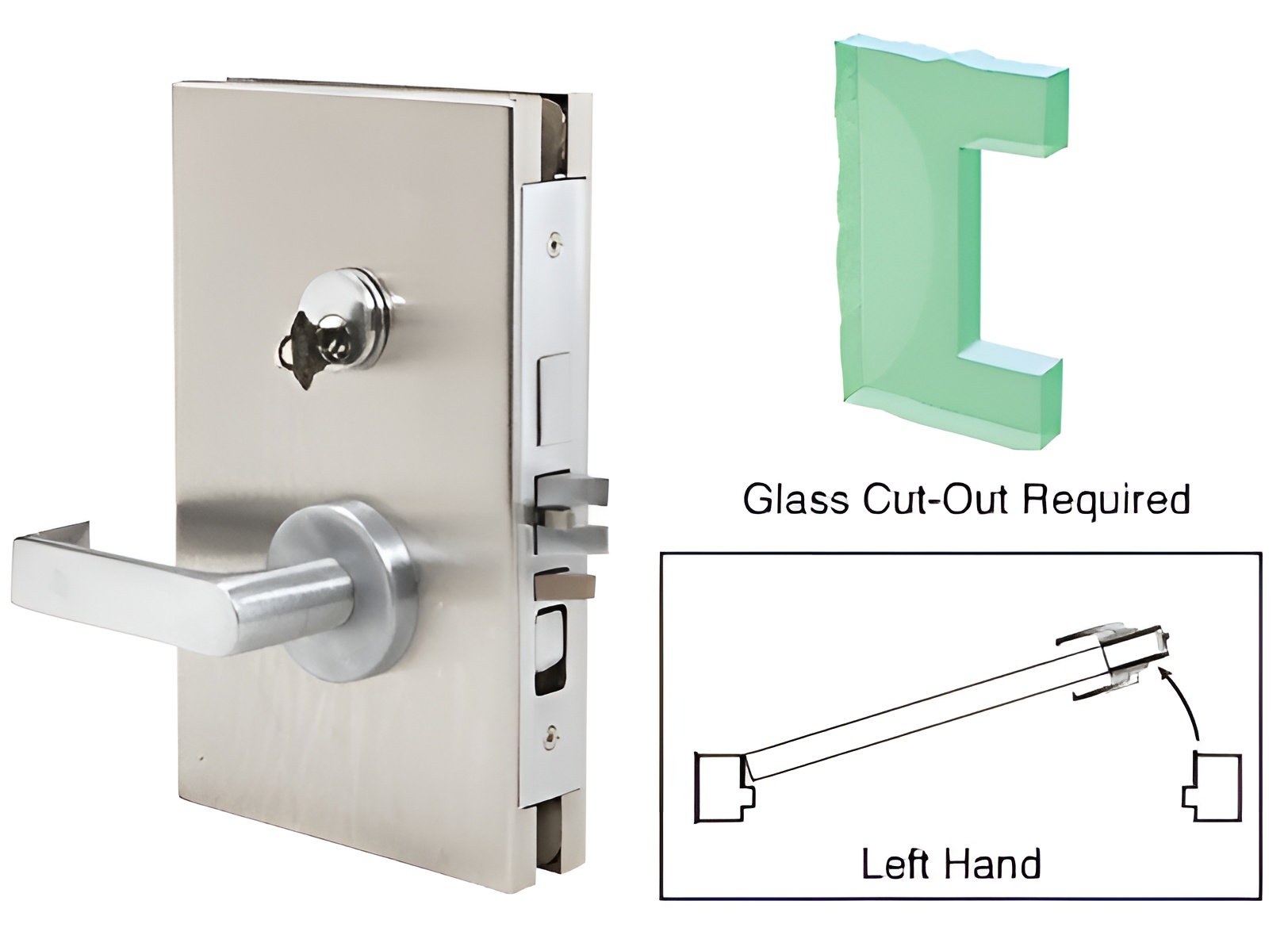

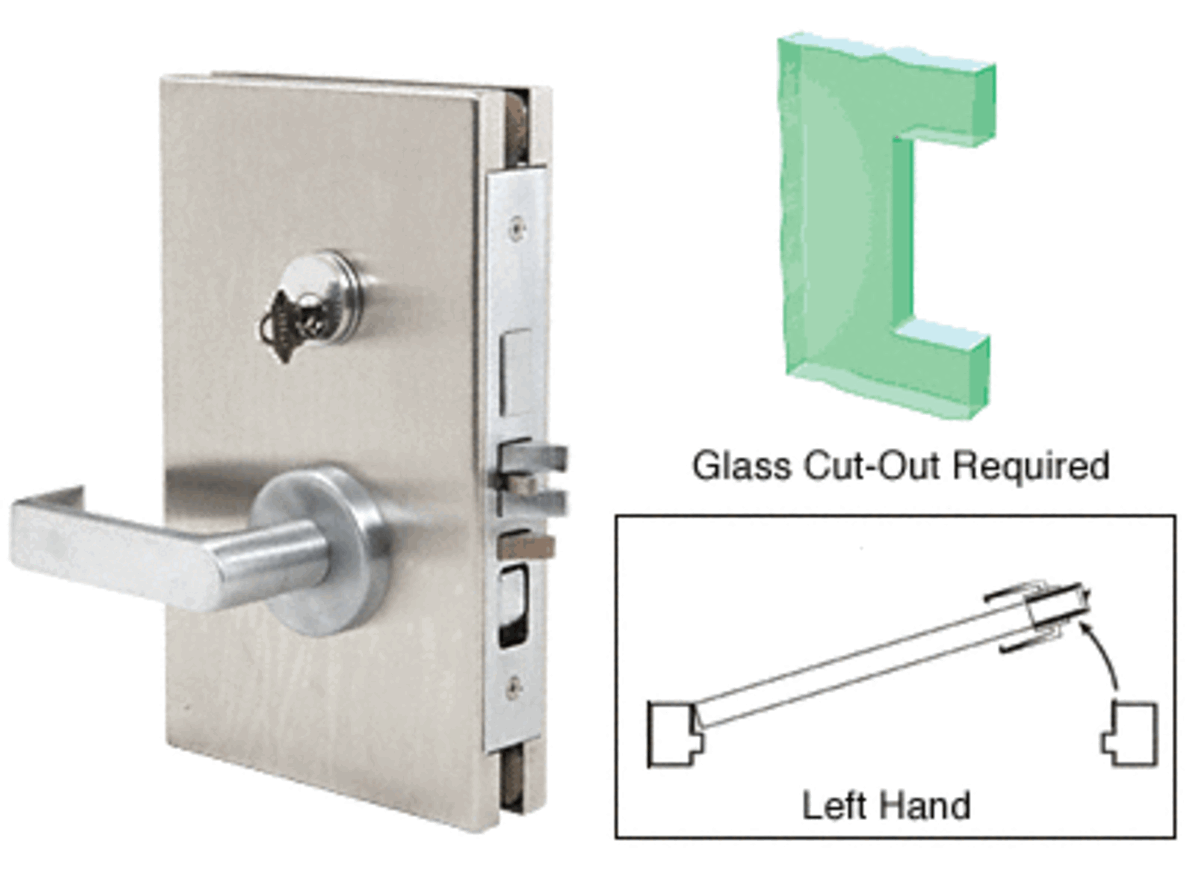

C.R. Laurence DL610LEBS Brushed Stainless 6" x 10" LH Center Lock With Deadlatch in Entrance Lock Function offers unparalleled versatility and security for your glass door installations. Designed for 1/2" (12 mm) tempered glass, this lock is available in five stunning finishes, allowing for seamless integration into any architectural design. With five different lock functions-Office, Entrance, Passage, Storeroom, and Classroom-this center lock is adaptable to various access needs. Its installation is hassle-free, requiring only a simple cut-out in the glass without the mess of cement or silicone. The deadlatch mechanism enhances security by preventing unauthorized entry, while the inside lever allows for easy exiting. Specifically, the Entrance Lock function enables operation via a lever on either side, with a key-operated deadbolt for added security. For those requiring custom solutions, special orders for different glass thicknesses and jamb mount strike plates are available. C.R. Laurence ensures a quick shipping time of under a week, making this lock an efficient choice for professionals. Ensure your glass doors are both stylish and secure with the DL610LEBS, a reliable solution for modern architecture.

Brushed Stainless 6" x 10" LH Center Lock With Deadlatch in Entrance Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate). Deadbolt is operated by key outside and thumbturn inside. Inside lever operates Latchbolt and Deadbolt simultaneously to allow exiting. NOTE: Will not work with Electric Strikes.

Passage Lock: The levers are always operable, allowing the Latchbolt to be retracted at all times.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch or unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• 6 X 10 Center Lock Installation Instructions
• CRL Stainless Steel Disclaimer
• Installation Instructions 6x10inst.pdf
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
