CRL DL610LEDU Dark Bronze 6"x10" LH Center Lock with Deadlatch, Entrance Function

CRL DL610LEDU Dark Bronze 6"x10" LH Center Lock with Deadlatch, Entrance Function

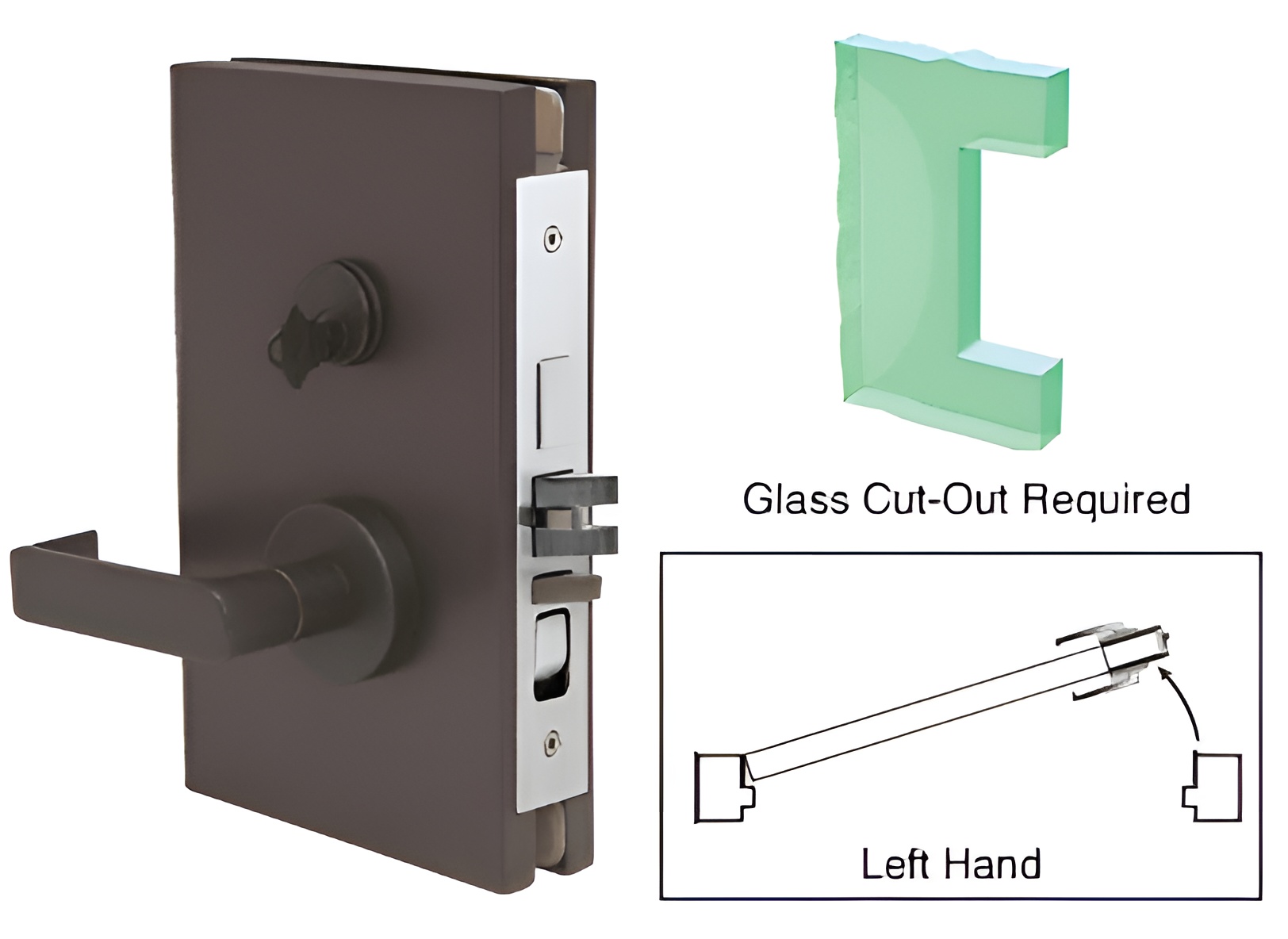

C.R. Laurence DL610LEDU Dark Bronze 6" x 10" LH Center Lock With Deadlatch in Entrance Lock Function delivers security and versatility for your glass door systems. Designed for 1/2" (12 mm) tempered glass, this center lock is available in five attractive finishes, allowing you to match it seamlessly with your architectural aesthetic. The lock offers five distinct functions: Office, Entrance, Passage, Storeroom, and Classroom, catering to various security needs. Installation is hassle-free, requiring only a simple cut-out in the glass-eliminating the mess of cement or silicone. With options for left or right-handed configurations, this lock fits your specific requirements. The Entrance Lock Function features a dual operation; the latchbolt can be activated from either side, with a deadbolt accessible via a key outside and a thumbturn inside, ensuring easy exit while maintaining security. Additional features include the ability to order jamb mount strike plates and custom units for different glass thicknesses on special request. C.R. Laurence's commitment to quality ensures that this lock ships in under a week, providing you with a reliable and efficient solution for your glass door hardware needs. Enjoy peace of mind with C.R. Laurence's expertly crafted locking solutions.

Dark Bronze 6" x 10" LH Center Lock With Deadlatch in Entrance Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate). Deadbolt is operated by key outside and thumbturn inside. Inside lever operates Latchbolt and Deadbolt simultaneously to allow exiting. NOTE: Will not work with Electric Strikes.

Passage Lock: The levers are always operable, allowing the Latchbolt to be retracted at all times.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch or unlocks outside lever. Inside lever is always operable.

Resources

• 6 X 10 Center Lock Installation Instructions
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
