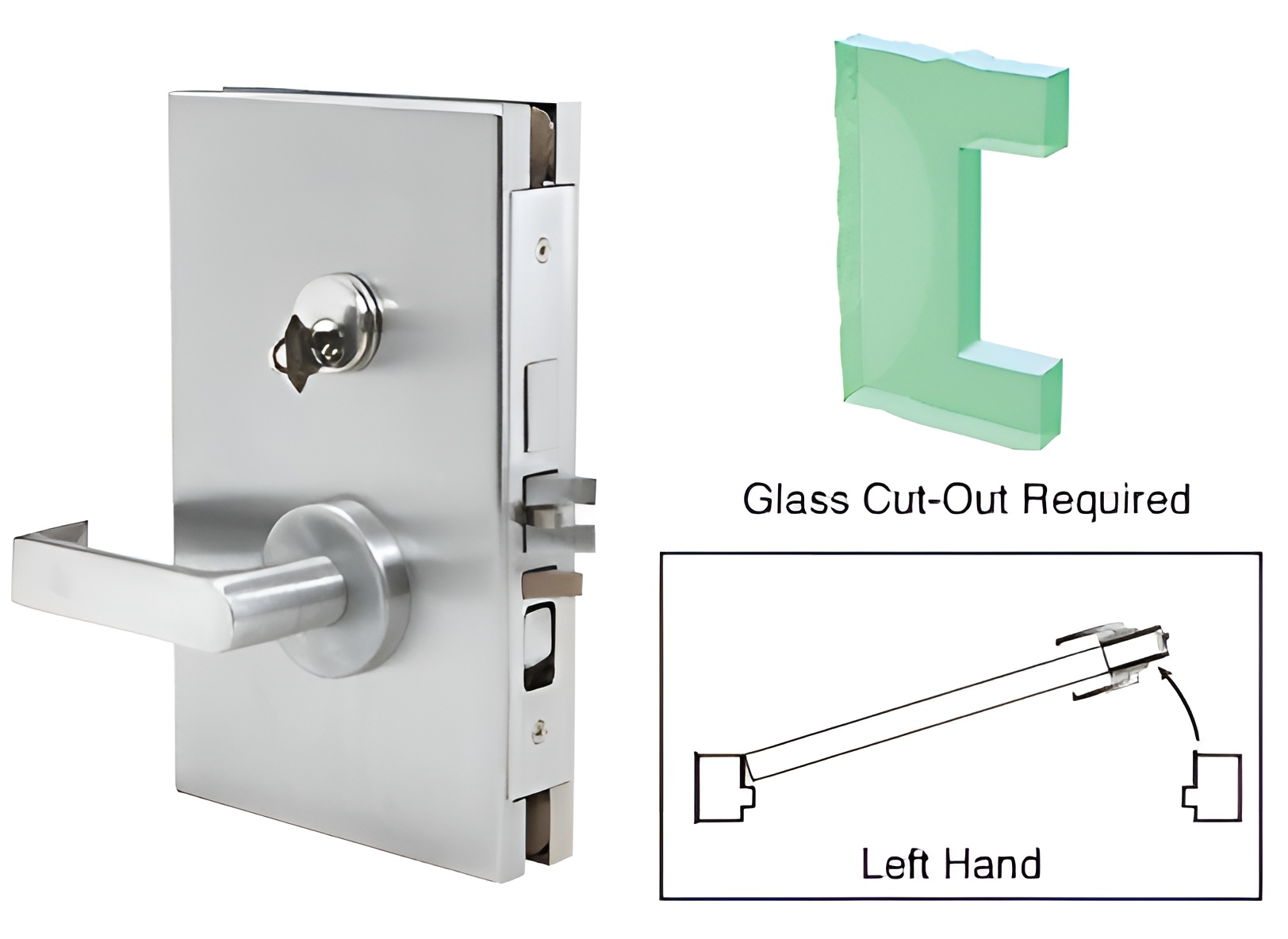

CRL DL610LESC Satin Anodized 6"x10" LH Center Lock with Deadlatch, Entrance Function

Satin Anodized 6" x 10" LH Center Lock With Deadlatch in Entrance Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate). Deadbolt is operated by key outside and thumbturn inside. Inside lever operates Latchbolt and Deadbolt simultaneously to allow exiting. NOTE: Will not work with Electric Strikes.

Passage Lock: The levers are always operable, allowing the Latchbolt to be retracted at all times.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch or unlocks outside lever. Inside lever is always operable.
