CRL DL610LPBS Brushed Stainless 6"x10" LH Center Lock with Deadlatch, Passage Function

C.R. Laurence DL610LPBS Brushed Stainless 6" x 10" LH Center Lock With Deadlatch in Passage Lock Function provides unmatched versatility and security for heavy glass doors. Designed specifically for 1/2" (12 mm) tempered glass, this center lock is available in five attractive finishes to complement any architectural style. The lock features a hassle-free installation process that eliminates the mess of cement or silicone, requiring only a simple cut-out in the glass. With five distinct lock functions-Office, Entrance, Passage, Storeroom, and Classroom-users can select the appropriate level of accessibility and security for their needs. The passage lock function allows levers to remain operable at all times, making it ideal for high-traffic areas. The durable brushed stainless steel finish not only offers a sleek look but also enhances resistance to corrosion, ensuring longevity with periodic maintenance. Each lock is available in left and right-handed configurations, accommodating various door setups. Special order options include custom units for different glass thicknesses and jamb mount strike plates. With quick shipping within a week, the DL610LPBS is a reliable choice for both building professionals and discerning homeowners seeking quality and efficiency in their locking solutions.

Brushed Stainless 6" x 10" LH Center Lock With Deadlatch in Passage Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

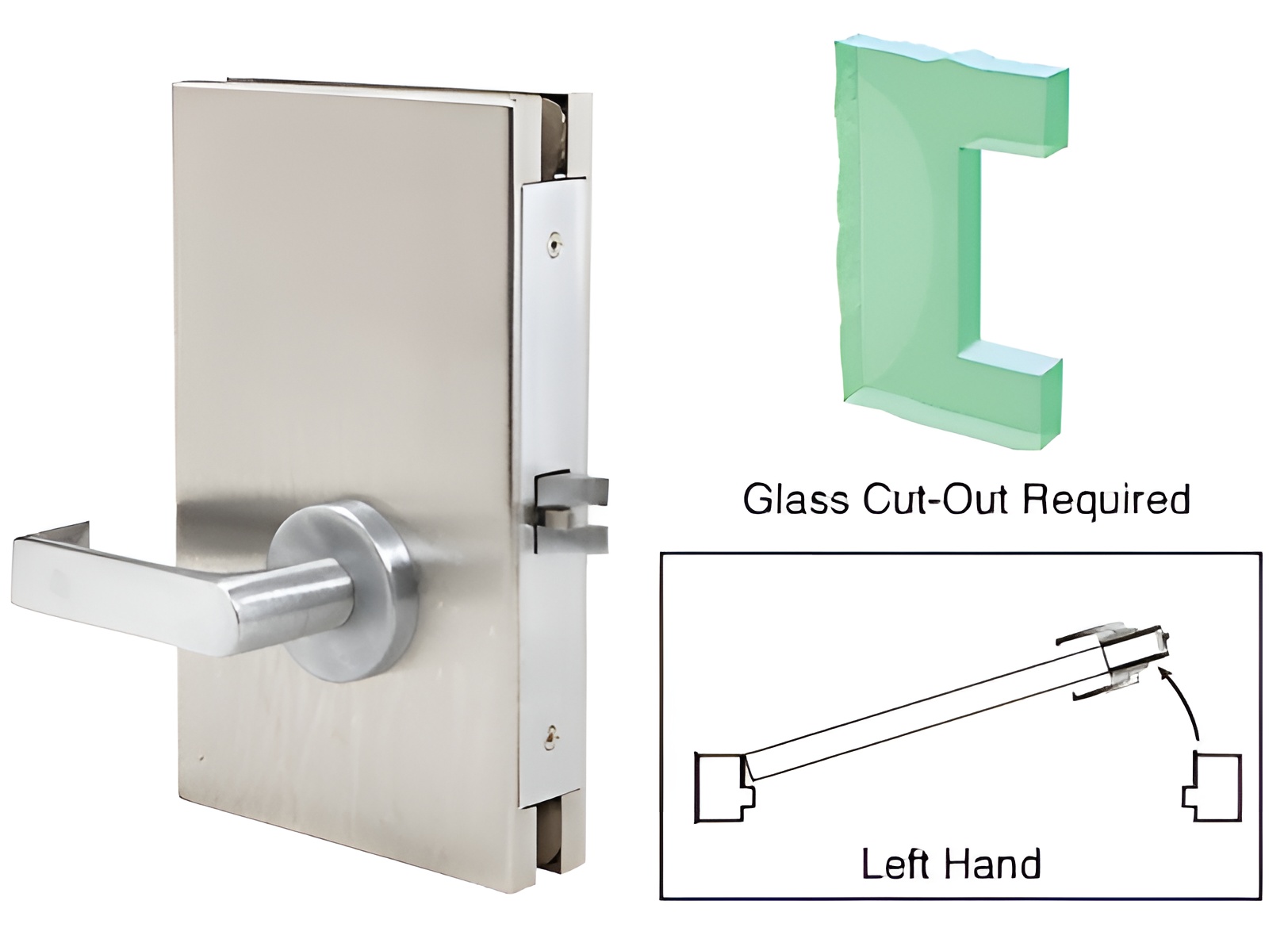

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate). Deadbolt is operated by key outside and thumbturn inside. Inside lever operates Latchbolt and Deadbolt simultaneously to allow exiting. NOTE: Will not work with Electric Strikes.

Passage Lock: The levers are always operable, allowing the Latchbolt to be retracted at all times.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch or unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• 6 X 10 Center Lock Installation Instructions
• Brass Finish Disclaimer
• CRL Stainless Steel Disclaimer
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
