CRL DL610RCBS Brushed Stainless 6"x10" RH Center Push Button Lock with Housing

CRL DL610RCBS Brushed Stainless 6"x10" RH Center Push Button Lock with Housing

C.R. Laurence DL610RCBS Brushed Stainless 6" x 10" RH Center Push Button Lock With Housing combines functionality with sleek design for modern glass doors. This versatile lock requires no electrical connections, making installation straightforward and hassle-free. It is designed to comply with A.D.A. standards, ensuring accessibility and convenience in high-traffic areas. Crafted for 1/2" (12 mm) heavy tempered glass, this lock is available in five attractive finishes to suit various aesthetic preferences. The center locks come in left and right-handed options, catering to diverse installation needs. With multiple lock functions available-including office, entrance, passage, storeroom, and classroom-this product provides tailored security solutions for different environments. The office lock function features a latchbolt operable from both sides, with a key access for added security. The entrance lock allows simultaneous retraction of both the latch and deadbolt, while the storeroom and classroom locks offer robust locking mechanisms to prevent unauthorized access. Constructed from brushed stainless steel, this lock not only resists corrosion but also enhances the overall look of your space. Regular maintenance is recommended to preserve its factory finish, ensuring long-lasting performance and elegance.

Brushed Stainless 6" x 10" RH Center Push Button Lock With Housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

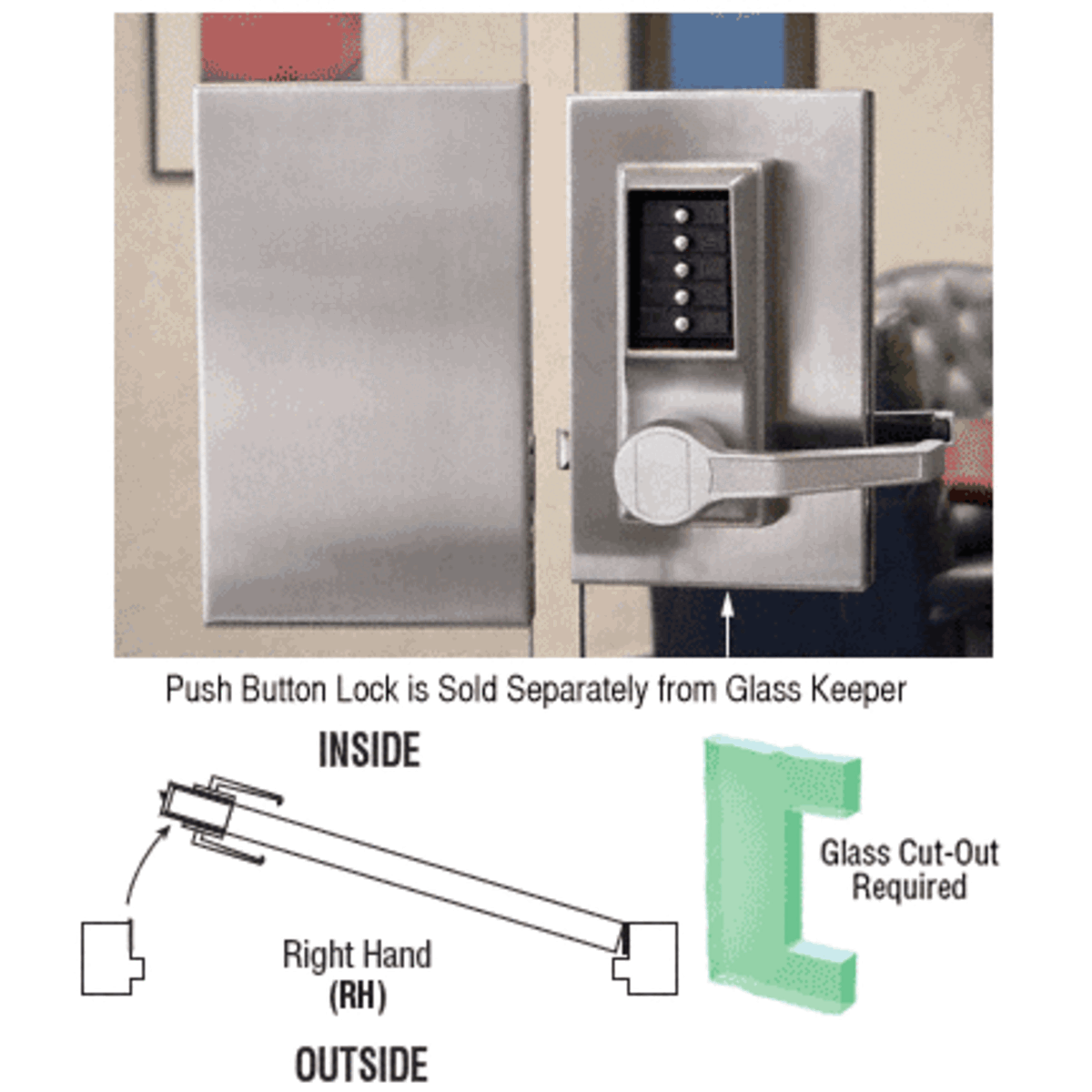

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• How to Change the Combination DL610-combination.pdf
• Template 6x10 cutout.pdf
