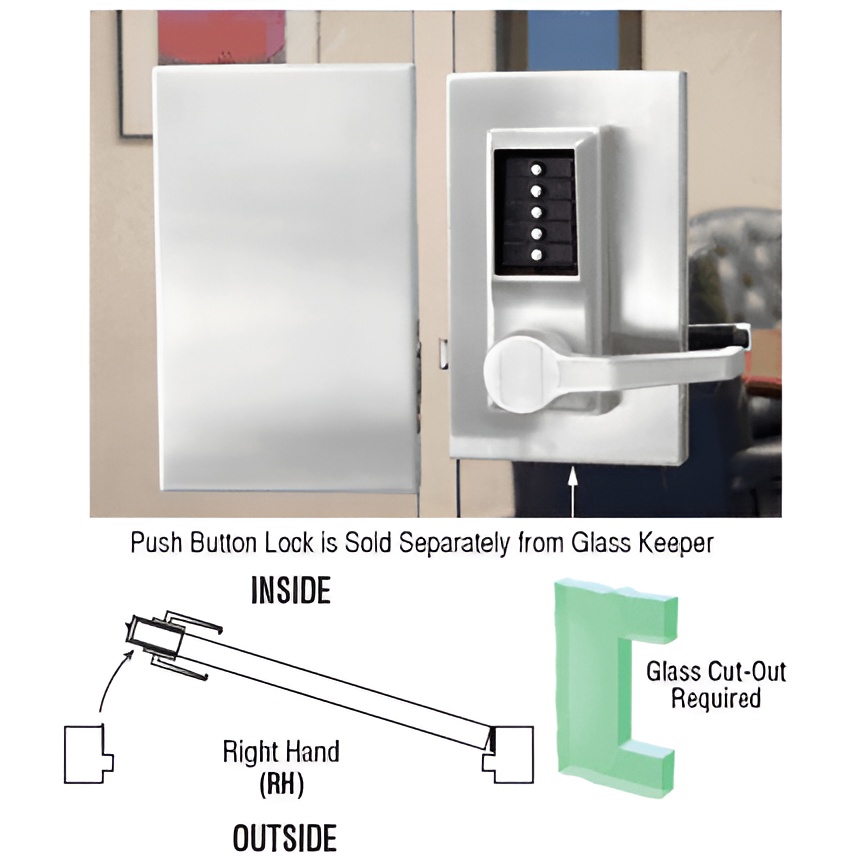

CRL DL610RCSC Satin Anodized 6"x10" RH Center Push Button Lock with Housing

CRL DL610RCSC Satin Anodized 6"x10" RH Center Push Button Lock with Housing

C.R. Laurence DL610RCSC Satin Anodized 6" x 10" RH Center Push Button Lock With Housing offers a robust and versatile locking solution for glass doors. Designed specifically for 1/2" (12 mm) heavy tempered glass, this lock requires no electrical connections, making installation straightforward and mess-free with just a simple cut-out in the glass. Available in five attractive finishes, the DL610RCSC not only enhances the aesthetic appeal of your entrance but also complies with A.D.A. standards, ensuring accessibility for all. Its diverse lock functions provide enhanced security options tailored to your needs. The Office Lock function allows operation from either side and includes a deadlocking feature to thwart unauthorized access. For added convenience, the Entrance Lock combines both latch and deadbolt features, while the Passage Lock permits easy exit without a key. The Storeroom Lock is ideal for secure storage areas, and the Classroom Lock offers flexibility with controlled access. With dimensions of 6" in width and 10" in height, this right-handed lock is as practical as it is stylish. Choose the C.R. Laurence DL610RCSC for a reliable and elegant solution to your locking needs.

Satin Anodized 6" x 10" RH Center Push Button Lock With Housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Resources

• How to Change the Combination DL610-combination.pdf
• Template 6x10 cutout.pdf
