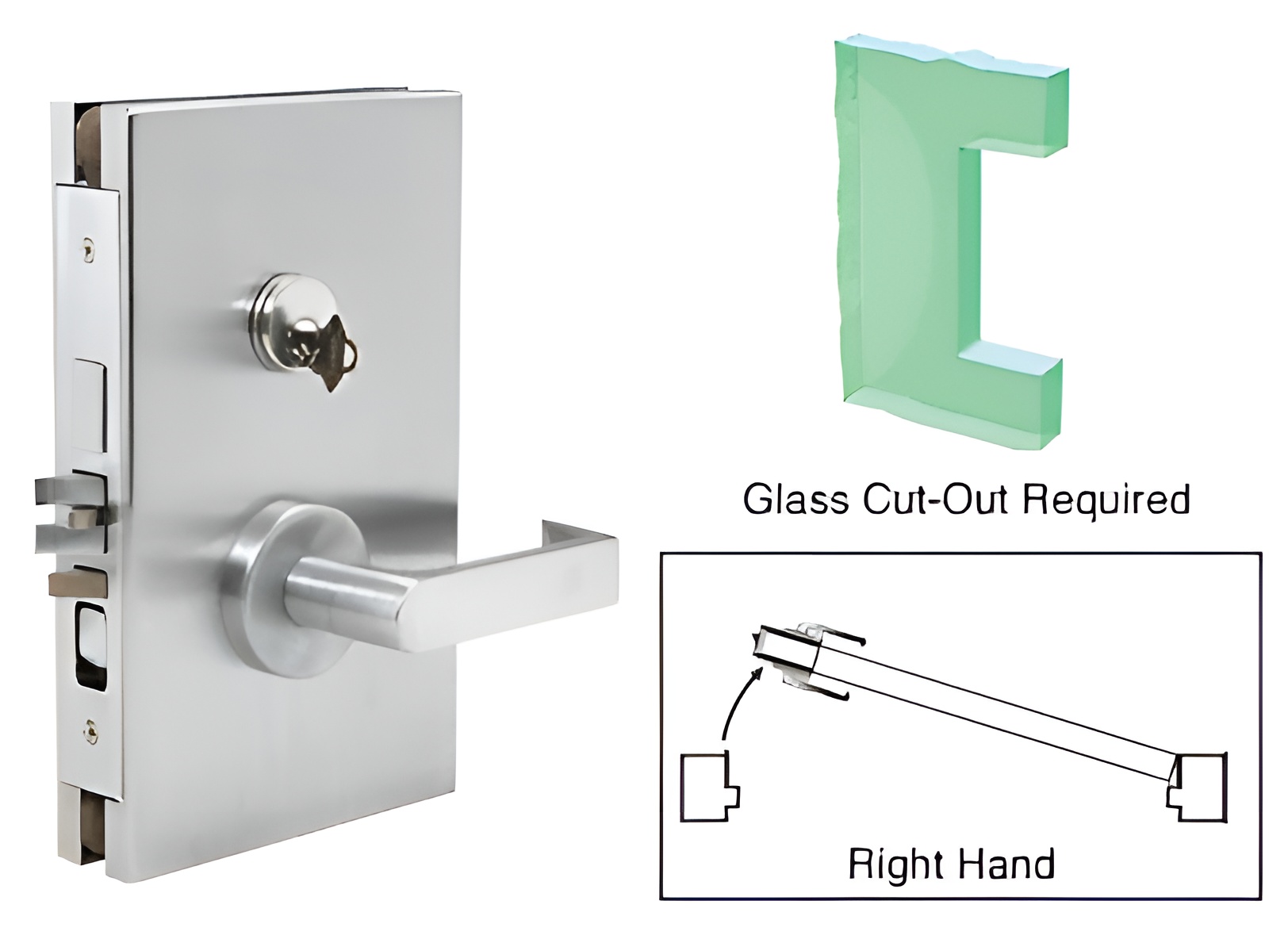

CRL DL610RESC Satin Anodized 6"x10" RH Center Lock with Deadlatch, Entrance Function

CRL DL610RESC Satin Anodized 6"x10" RH Center Lock with Deadlatch, Entrance Function

C.R. Laurence DL610RESC Satin Anodized 6" x 10" RH Center Lock With Deadlatch in Entrance Lock Function provides exceptional security and versatility for modern glass door applications. Designed for 1/2" (12 mm) tempered glass, this lock is available in five distinct finishes, allowing it to seamlessly integrate with a variety of architectural styles. With five different lock functions-Office, Entrance, Passage, Storeroom, and Classroom-this center lock caters to diverse security needs. The hassle-free installation process eliminates the mess associated with cement or silicone, requiring only a simple cut-out in the glass. The Entrance Lock function allows for convenient access, where the latch bolt can be operated via levers on both sides, while a deadbolt provides added security from the outside. Additionally, the lock is available in both right and left-handed configurations, ensuring flexibility for any installation. With a shipping time of less than a week and the option for custom units with different glass thicknesses on special order, the DL610RESC is a practical and stylish choice for commercial or residential projects. Enhance your space with this robust locking solution that prioritizes both functionality and aesthetics.

Satin Anodized 6" x 10" RH Center Lock With Deadlatch in Entrance Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Resources

• 6 X 10 Center Lock Installation Instructions
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
