CRL DL610RMPS Polished Stainless 6"x10" RH Center Lock with Deadlatch - Classroom Function

C.R. Laurence DL610RMPS Polished Stainless 6" x 10" RH Center Lock with Deadlatch in Classroom Function is designed to provide exceptional security and versatility for your glass doors. This center lock is compatible with 1/2" (12 mm) monolithic tempered glass, making it an ideal choice for both commercial and residential applications. Available in five distinct finishes, this lock not only enhances security but also complements the aesthetics of your space. With five different lock functions-Office, Entrance, Passage, Storeroom, and Classroom-you can choose the option that best fits your needs. The lock's hassle-free installation means no messy cement or silicone is required; just a simple cut-out in the glass is all that's needed. The Classroom function allows the latchbolt to be operated by lever on either side, except when the outside lever is locked with a key, ensuring that the inside lever remains always operable. With the added benefit of jamb mount strike plates available on special order, this lock offers customizable security solutions. Experience peace of mind with the C.R. Laurence DL610RMPS, a reliable choice that ships in under a week and is backed by the quality assurance of C.R. Laurence.

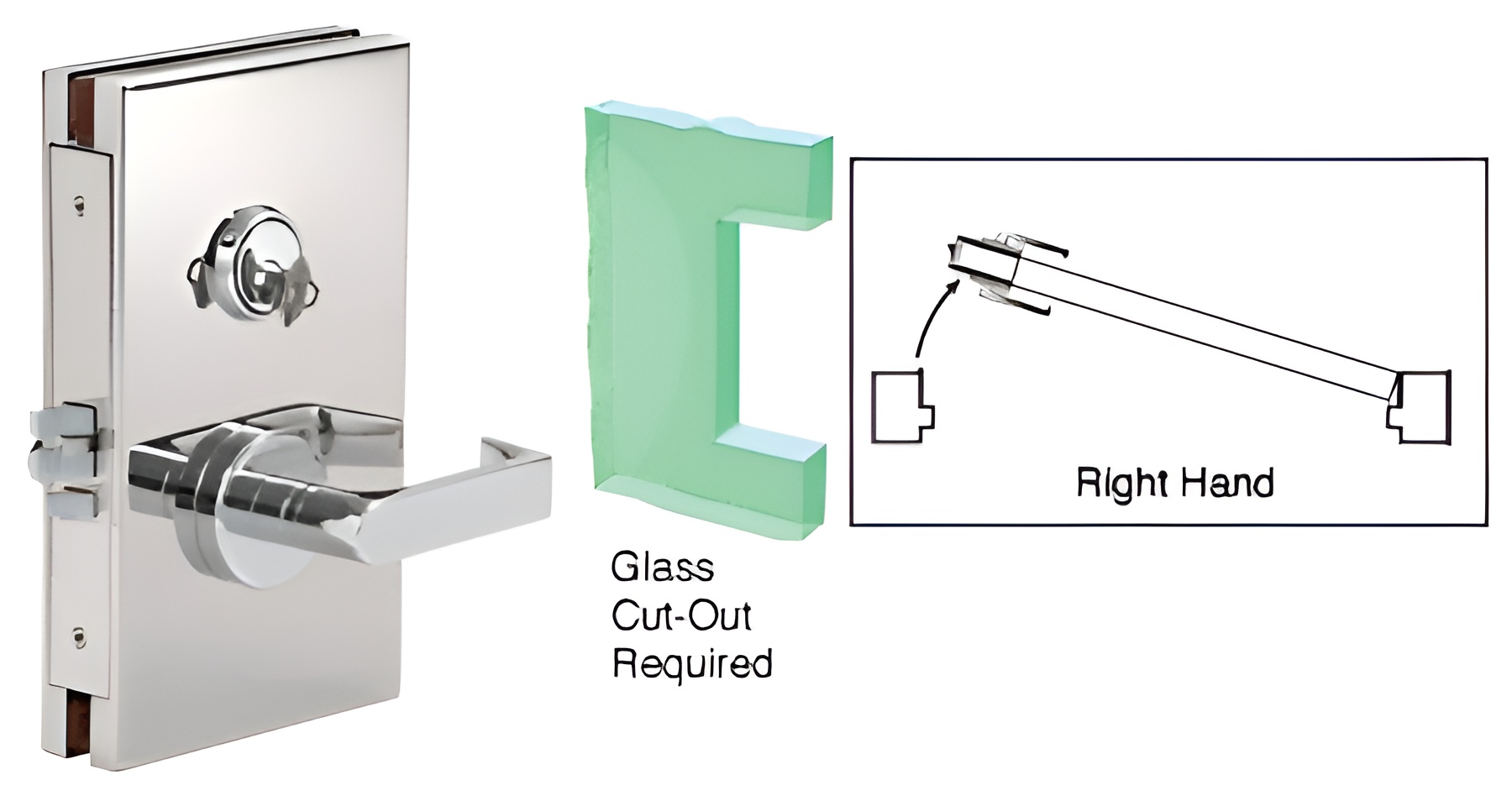

Polished Stainless 6" x 10" RH Center Lock with Deadlatch in Class Room Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Glass; Custom Units for Other Glass Thicknesses on Special Order <>li>Use Monolithic Tempered Glass
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• 6 X 10 Center Lock Installation Instructions
• CRL Stainless Steel Disclaimer
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
