CRL DL611LMBS Brushed Stainless 6"x10" LHR Center Lock with Deadlatch, Classroom Function

CRL DL611LMBS Brushed Stainless 6"x10" LHR Center Lock with Deadlatch, Classroom Function

C.R. Laurence DL611LMBS Brushed Stainless 6" x 10" LHR Center Lock With Deadlatch in Classroom Function provides an ideal solution for enhancing security and functionality in your glass door systems. Designed for use with 1/2" (12 mm) tempered glass, this center lock is available in five attractive finishes, allowing you to match it seamlessly with your architectural style. This lock offers five distinct functions-Office, Entrance, Passage, Storeroom, and Classroom-ensuring versatility for various applications. Installation is straightforward; no messy cement or silicone is required, and a simple cut-out in the glass is all that's needed. The lock is available in both left-hand and right-hand configurations, accommodating different door orientations. With the Classroom function, the latchbolt is operable from the inside at all times, while the outside lever can be locked with a key for added security. This feature makes it ideal for educational environments where controlled access is essential. C.R. Laurence ensures prompt service, with shipping typically occurring in under a week. For those seeking a blend of durability, style, and ease of installation, the DL611LMBS is an excellent choice for modern glass entryways.

Brushed Stainless 6" x 10" LHR Center Lock With Deadlatch in Class Room Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

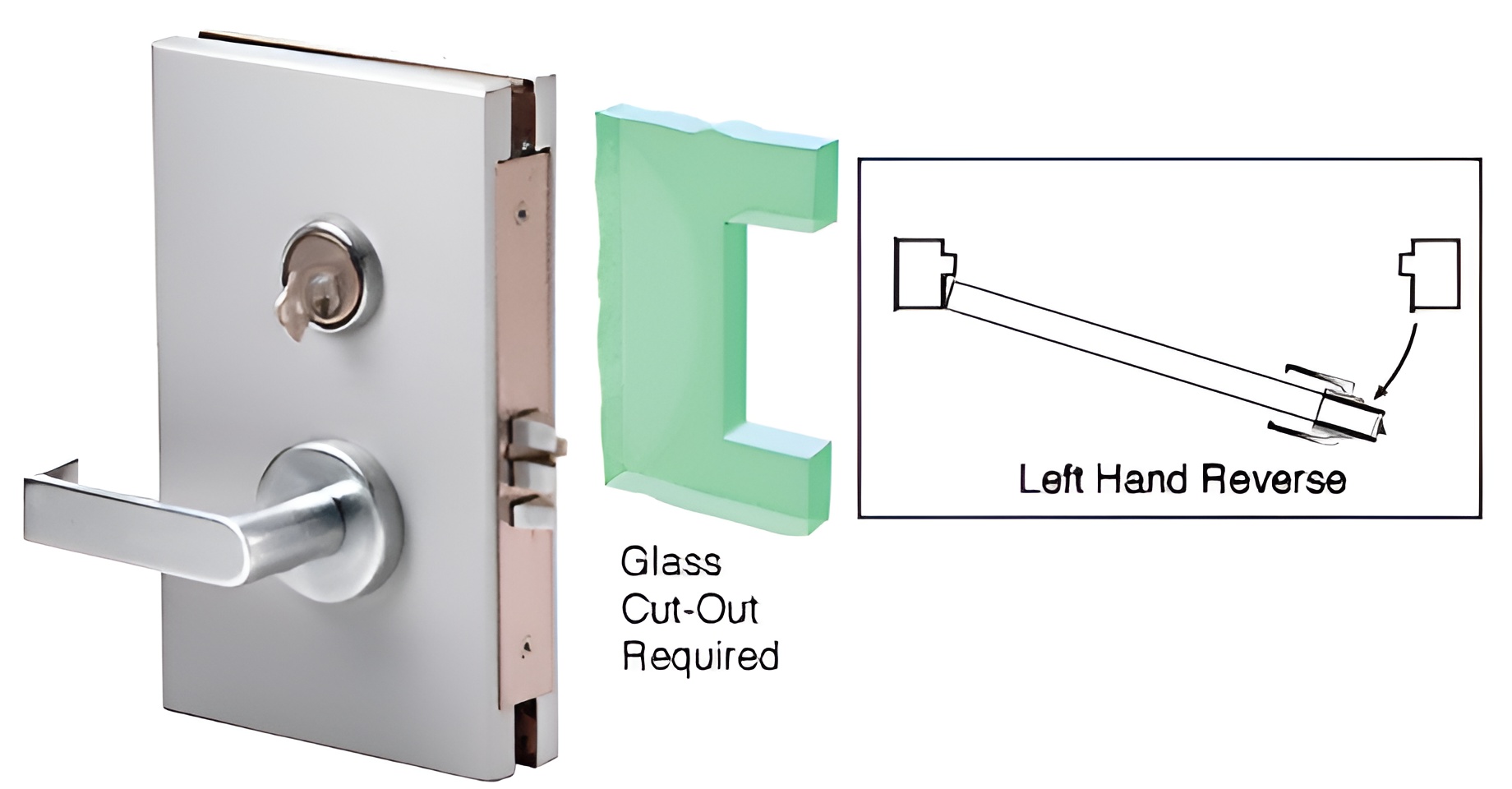

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• 6 X 10 Center Lock Installation Instructions
• CRL Stainless Steel Disclaimer
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
