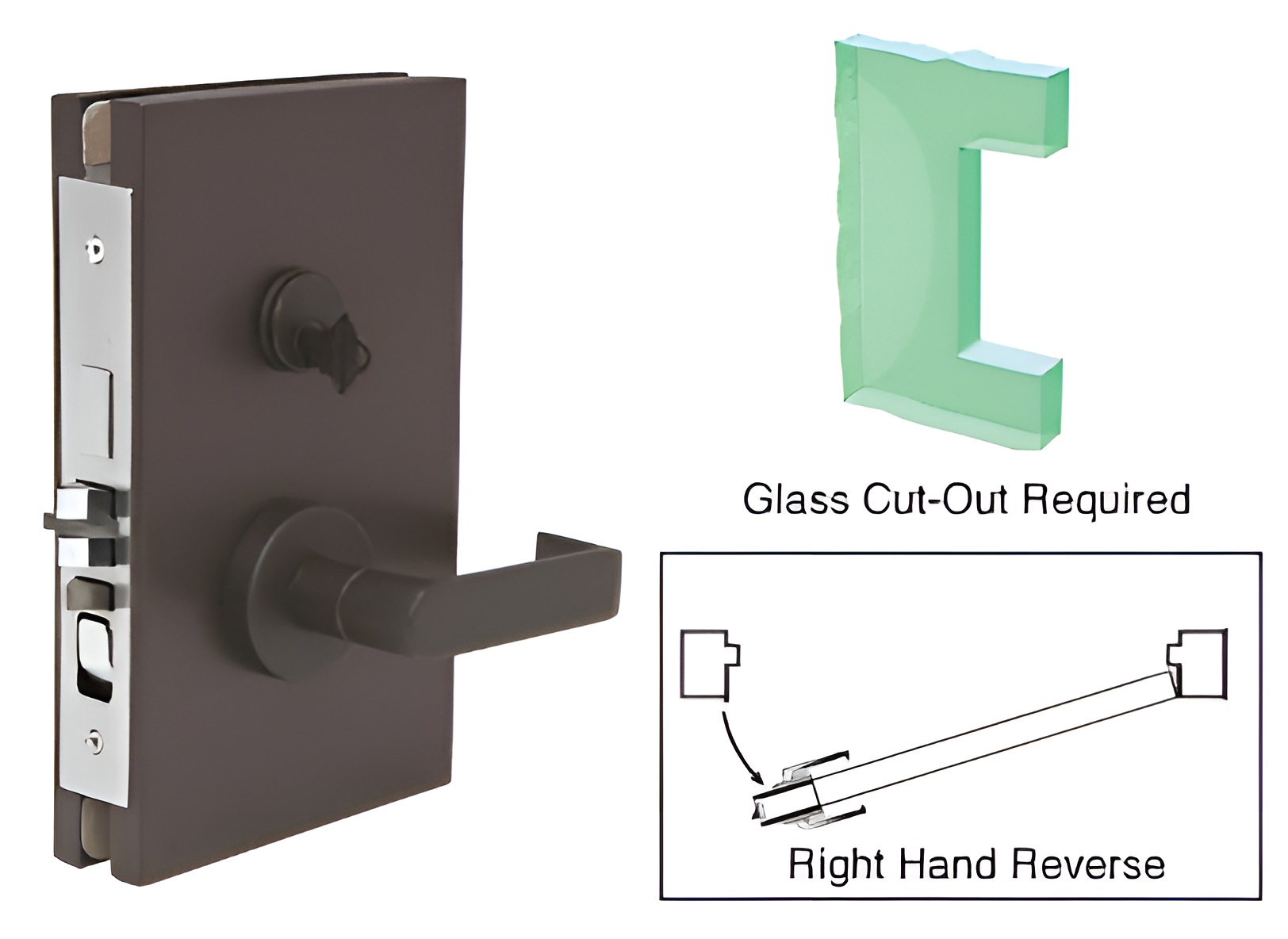

CRL DL611REDU Dark Bronze 6"x10" RHR Center Lock with Deadlatch, Entrance Function

C.R. Laurence DL611REDU Dark Bronze 6" x 10" RHR Center Lock With Deadlatch in Entrance Lock Function offers an exceptional blend of versatility and security for your glass door configurations. Designed for 1/2" (12 mm) tempered glass, this lock is available in five attractive finishes and is capable of accommodating five different lock functions: Office, Entrance, Passage, Storeroom, and Classroom. Installation is a breeze with a simple cut-out in the glass-no messy cement or silicone required. The lock is offered in both left and right-handed options, ensuring compatibility with various door setups. The Entrance Lock function features a latch bolt that operates via a lever on either side, with a deadbolt controlled by a key outside and a thumbturn inside, allowing for seamless entry and exit. Each lock includes jamb mount strike plates available on special order, catering to your specific needs. With a shipping time of under a week, you can quickly enhance your space with this robust locking solution. The CRL DL611REDU not only prioritizes security but also adds a sleek, professional look to any glass door application.

Dark Bronze 6" x 10" RHR Center Lock With Deadlatch in Entrance Lock Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Resources

• 6 X 10 Center Lock Installation Instructions
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
