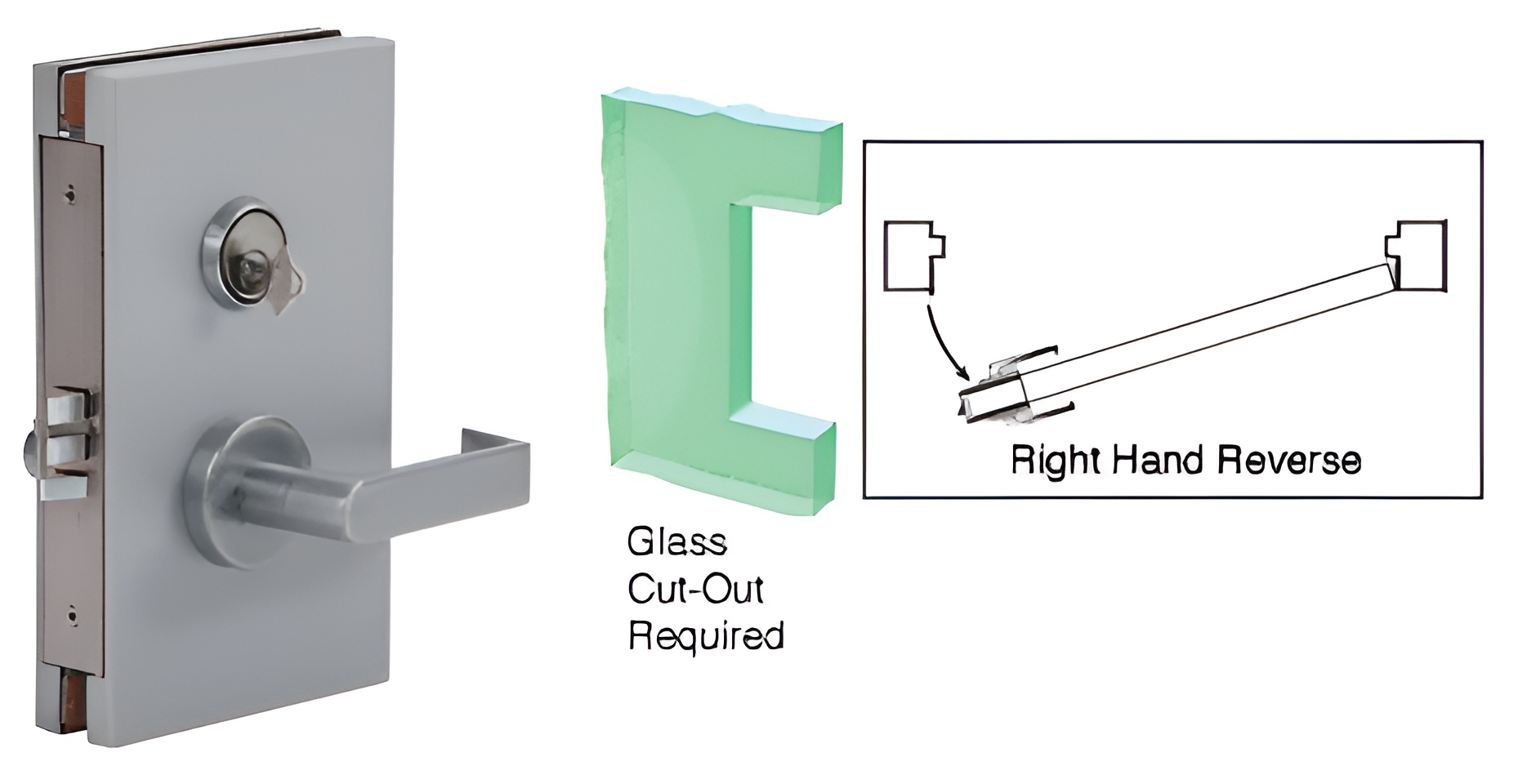

CRL DL611RMBS Brushed Stainless 6"x10" RHR Center Lock with Deadlatch, Classroom Function

C.R. Laurence DL611RMBS Brushed Stainless 6" x 10" RHR Center Lock With Deadlatch in Classroom Function offers exceptional versatility and security for modern glass door applications. Designed for 1/2" (12 mm) tempered glass, this center lock is available in five different functions, including Office, Entrance, Passage, Storeroom, and Classroom, catering to a variety of settings and security needs. The installation process is streamlined, requiring only a simple cut-out in the glass-no messy cement or silicone is needed. The lock is offered in five attractive finishes, enhancing aesthetic appeal while ensuring durability. Additionally, custom units for other glass thicknesses can be ordered, making it adaptable for various projects. With a height of 10 inches and a width of 6 inches, the DL611RMBS is available in both left-hand and right-hand configurations, ensuring compatibility with your specific door setup. It features a reliable auxiliary latchbolt that enhances security by preventing unauthorized access. Though resistant to corrosion, regular maintenance is recommended to preserve the brushed stainless steel finish. This lock provides peace of mind and practicality, making it an ideal choice for building professionals and discerning homeowners alike.

Brushed Stainless 6" x 10" RHR Center Lock With Deadlatch in Class Room Function

• Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
• For 1/2" (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
• Ships in Under a Week
• Available in Five Finishes
• Hassle Free Installation without the Mess of Cement or Silicone
• Jamb Mount Strike Plates on Special Order
• Use Monolithic Tempered Glass

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.


Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Stainless Steel Advisory:

Resources

• 6 X 10 Center Lock Installation Instructions
• CRL Stainless Steel Disclaimer
• Installation Instructions 6x10inst.pdf
• Template 6x10 cutout.pdf
