CRL DL950SS Satin Stainless Steel Touch Bar Panic Exit DeviceC.R. Laurence DL950SS Satin Stainless Steel Touch Bar Rim Panic Exit Device is designed for use with medium and wide stile aluminum doors, providing both functionality and security. This robust device is available in painted carbon steel and satin stainless steel finishes, ensuring an attractive look that complements modern architectural aesthetics. With a minimum force required to release the locking mechanism, the DL950SS is engineered for quick and easy exit in emergencies. It features a standard hex key dogging mechanism, allowing you to disable the locking action during business hours for added convenience. The device is fabricated to a ready-to-install length of 34-7/8" (886 mm), suitable for 36" (914 mm) wide doors, and can be trimmed down to fit doors as narrow as 30" (762 mm). Built from durable materials, the DL950SS is designed to withstand daily use while maintaining its sleek appearance. However, it is recommended to keep internal components away from moisture and corrosive environments for longevity. For added security, an optional Rim Cylinder can be integrated for keyed entry. UL listed for safety compliance, the DL950SS is a reliable choice for both commercial and high-traffic residential applications.

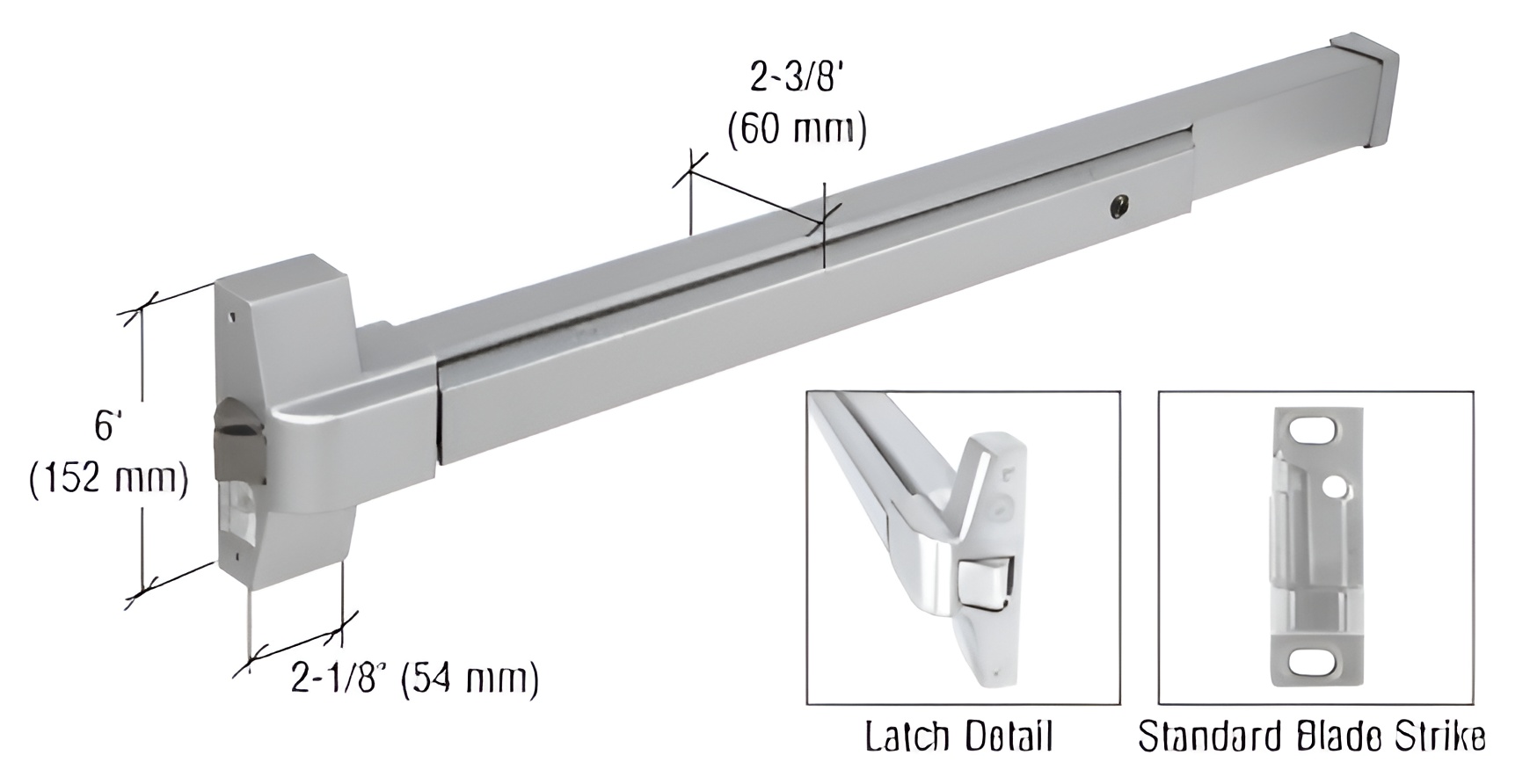

Satin Stainless Steel Touch Bar Rim Panic Exit Device
- For Use with Medium and Wide Stile Aluminum Doors
- Painted Carbon Steel and Satin Stainless Steel Finishes Available
- Minimum Force Releases Locking Mechanism
Our
CRL Push-Pad Rim Panic Devices can be used on either single doors, or double doors with a mullion. Minimum required door stile width is 4-1/4" (108 mm). For your convenience, these Devices come fabricated to 34-7/8" (886 mm) overall length, ready-to-install on 36" (914 mm) wide doors without any modification, and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature defeats locking action during business hours. A Blade Strike is included with each Exit Device.
Our Cat. No. DL950SS Satin Stainless Steel Panic Device offers a more durable and attractive architectural finish, but as with the other finishes, the internal components should not be exposed to moisture or a corrosive environment.
For keyed entry, an optional Cat. No. DL911SC Series, or other brand, Rim Cylinder is required.
Product Warning:
This Panic Exit Device is fabricated with a 34-7/8" overall length so they are ready-to-install on 36" doors without modification. 36" width is the maximum door size. Minimum recommended stile width is 4-1/4" (108 mm).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Finish/ Color:: Stainless Steel
Handing: Non Handed
Includes: Mounting Hardware
Material: Steel
Minimum Stile Width: 4-/14
Model: DL950
Panic Bar Base Height: 2
Panic Bar Projection: 2-3/8
Panic Bar Width Net: 34-7/8
Panic Dogging: Standard Hex Key Dogging
Panic Head Base Width: 2-1/8
Panic Head Height: 6
Panic Type: Rim Exit Device
Push Pad Width: 21
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL911SCKDA, DL911SCKAA, DL95STR1KE, DL9DKEY
Shipping Limitations: None
Similar: 311295C4628
UL Listed: Yes
