CRL DR4SPS12PL Polished Stainless 4" Square DRS Door Rail with Lock for 1/2" Glass - 9.5" LengthC.R. Laurence DR4SPS12PL Polished Stainless 4" Square DRS Door Rail With Lock for 1/2" Glass - 9-1/2" Length is a premier choice for secure and stylish glass door applications. Designed specifically for 1/2" (12 mm) monolithic tempered glass, this robust door rail measures 9-1/2" (203 mm) in length and features the patented Wedge-Lock® Glass Securing System. This innovative system ensures a secure attachment by applying pressure from the bottom of the rail, allowing for an impressive holding force of over 900 lbs. The rail's rigid, single-component housing prevents shifting, providing long-term reliability without the need for frequent adjustments. Additionally, the adjustable door alignment system allows for easy modifications of 1/8" (3.2 mm) toward or away from the jamb, streamlining installation and maintenance. Available in polished stainless steel and several stock architectural finishes, the DR4SPS12PL also accommodates custom finishes upon request. With matching sidelites available, this door rail system is suitable for a variety of architectural designs, making it an ideal choice for both commercial and residential projects. The product comes fully fabricated, ready to install, and includes a built-in jamb alignment block, ensuring a smooth installation process.
Polished Stainless 4" Square DRS Door Rail With Lock for 1/2" Glass - 9-1/2" Length
- 9-1/2" (203 mm) Length for 1/2" (12 mm) Glass
- Use Monolithic Tempered Glass
- Patented Wedge-Lock® Glass Securing System
- Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
- Available in Several Stock Architectural Finishes - Custom Finishes Available
- Available With and Without Locks
- Matching Sidelite Rails Available
Our innovative glass entrance system, the

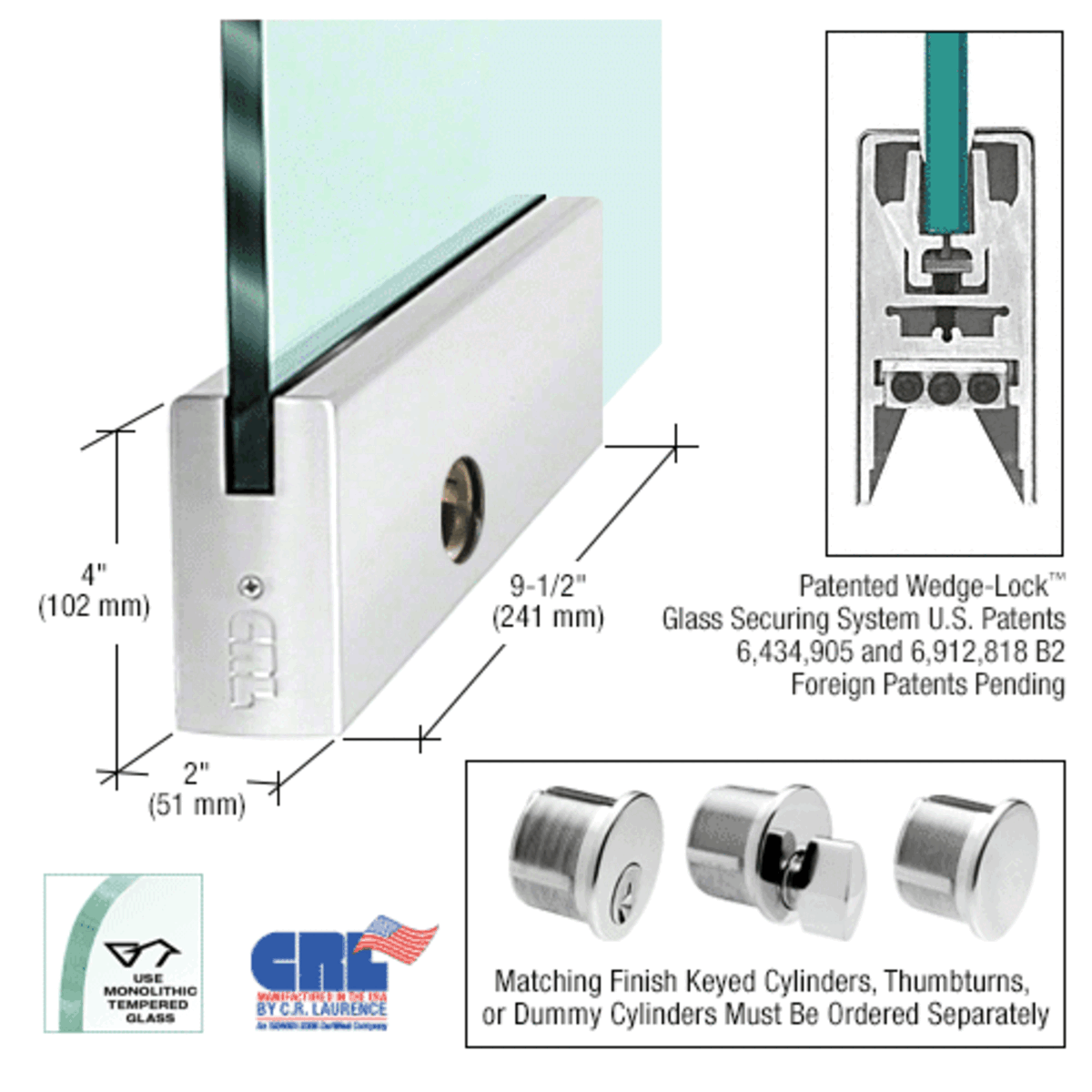

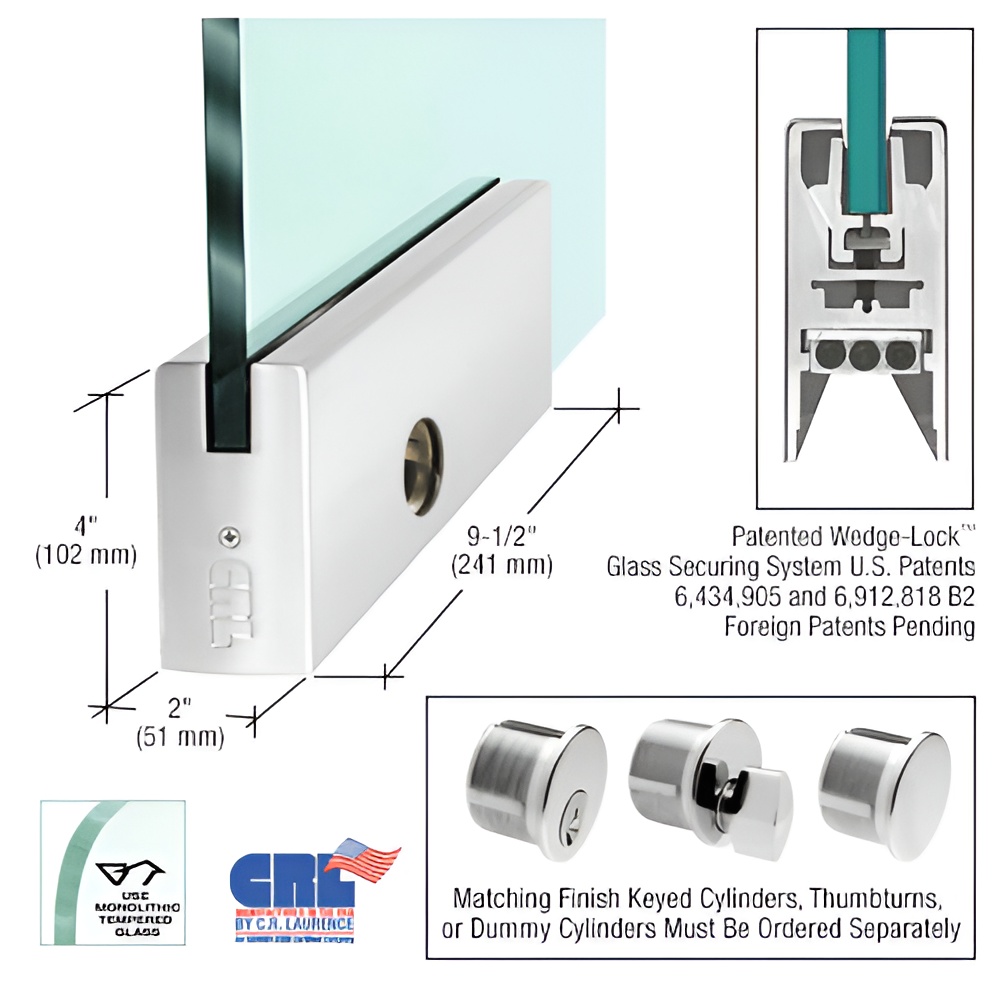

CRL Wedge-Lock® Door Rail System features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). A totally new concept for securing the glass in the door rail. It works by applying pressure from the bottom of the door rail, using two glass retaining aluminum extrusions via a flat stainless steel bar. As this bar is pulled down with socket head cap bolts, pressure is applied to the glass retaining aluminum extrusions. The bottom of the extrusions are at an angle and fit into an angled groove in the door rail. As the glass retaining extrusions are being pulled down, the angled wedge in the door rail also pulls the glass retaining extrusions together. This action, along with our specially designed door retaining gasket, creates a tremendous amount of force (more than 900 lbs.) in our 9" (228.6 mm) Corner Rail. That's 100 lbs. per inch. Imagine how much force is created in our full length 35-3/4" (908 mm) Door Rails!
NOTE: Actual Product Height : 4-1/16" (103 mm)
The Wedge-Lock® Glass Securing System gives you more than a secure attachment to the glass. It provides the fastest installation time of any door rail system offered to the industry. Experienced installers can have a door prepared for installation in less than ten minutes.
CRL Wedge-Lock® Door Rails come completely fabricated and ready-to-install right out of the carton with the End Caps installed. After the rail is installed, the only thing required before hanging the door is to attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the Door Rail. The Adjustable Door Alignment System feature allows you to adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. This is standard on both top and bottom rails.
After the door is installed all you need do to adjust the door is to remove the End Cap. This will reveal three socket head cap bolts. The center bolt is the securing bolt used to lock the adjustable slide in position. The two outer bolts are used to adjust the slide 1/8" (3.2 mm) in or out. The low profile of the adjustable slide allows the pivots with slotted grooves to be moved to a position other than the American Standard Setback of 2-3/4" (69.8 mm). This means we can fabricate them for vertically out-of-square openings.
Other reasons to choose Wedge-Lock® Door Rails: Models are available to accept 3/8" to 3/4" (10 or 19 mm) glass; a rigid single component housing that will not shift and fall out of adjustment over time because it is not made up of two halves; the internal components do not require removal before installation; the glass securing pads are designed for longevity in extreme environments.
NOTE: All Wedge-Lock® Door Rails feature the built-in Jamb Alignment Block, but arms and pivots must be ordered separately to meet job requirements.
CRL Wedge-Lock® Door Rails come in several standard finishes, and can be quoted in custom finishes and widths upon request. Rail Specifications, Templates and Hardware Packages are available from CRL Technical Sales
e-mail.
ORDERING INFORMATION:
• All Door Rails are supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer Arms and Floor or Overhead Pivots must be ordered separately.
• Models with Locks are supplied with the Lock Mechanism installed. Matching finish Keyed Cylinders or Thumbturns must be ordered separately.
• End Caps are included in the stock Door Rail lengths below. Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
Product Warning:
Comes standard with Jamb Alignment Block. Arms and Pivots must be ordered separately to meet job requirements.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Cylinder Hole Prep: Both Sides
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Includes Lock: Yes
Length: 9-1/2 in. (241 mm)
Material: Aluminum Clad with Stainless Steel
Nominal Height: 4 in. (102 mm)
Profile: Square
Shipping Limitations: None
Width: 2 in. (51 mm)
