CRL DR4SSA58P Satin Anodized 4" Square DRS Door Rail for 5/8" Glass - 12" Length

C.R. Laurence DR4SSA58P Satin Anodized 4" Square DRS Door Rail Without Lock for 5/8" Glass is a robust and elegantly designed solution for securing monolithic tempered glass doors. Measuring 12 inches in length, this rail is engineered specifically for 5/8" glass, accommodating a range of glass thicknesses from 3/8" to 3/4". The patented Wedge-Lock® Glass Securing System ensures a reliable and efficient installation process, applying over 900 lbs of pressure to secure the glass firmly without compromising integrity. This aluminum door rail comes fully fabricated and ready to install, featuring a low-profile adjustable door alignment system that allows for precise adjustments of 1/8" towards or away from the jamb without removing the door. The built-in Jamb Alignment Block further simplifies installation, ensuring a perfect fit every time. Available in a stylish satin anodized finish, the DR4SSA58P Door Rail can also be customized in various finishes to meet specific project requirements. Ideal for both commercial and residential applications, this door rail is complemented by matching sidelites, providing a cohesive aesthetic. Experience the blend of functionality and style with the C.R. Laurence DR4SSA58P Door Rail, designed to meet the demands of building professionals and discerning homeowners alike.

Satin Anodized 4" Square DRS Door Rail Without Lock for 5/8" Glass - 12" Length

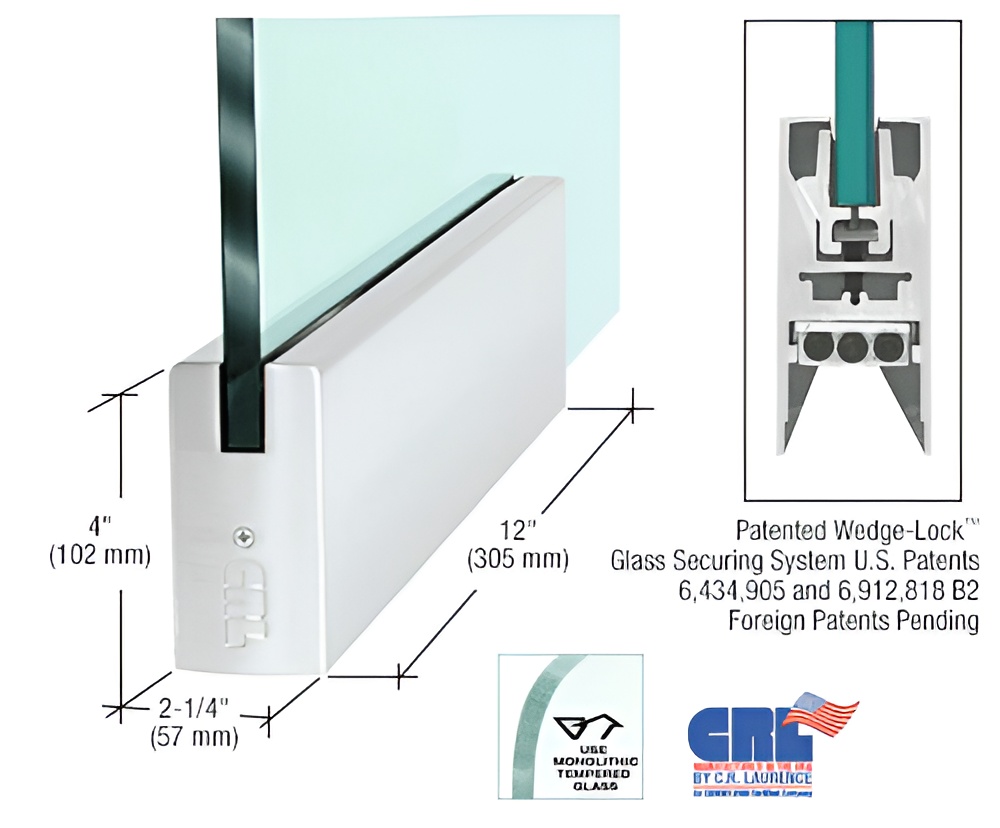

• 12" (305 mm) Length for 5/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance system, the CRL Wedge-Lock® Door Rail System features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). A totally new concept for securing the glass in the door rail. It works by applying pressure from the bottom of the door rail, using two glass retaining aluminum extrusions via a flat stainless steel bar. As this bar is pulled down with socket head cap bolts, pressure is applied to the glass retaining aluminum extrusions. The bottom of the extrusions are at an angle and fit into an angled groove in the door rail. As the glass retaining extrusions are being pulled down, the angled wedge in the door rail also pulls the glass retaining extrusions together. This action, along with our specially designed door retaining gasket, creates a tremendous amount of force (more than 900 lbs.) in our 9" (228.6 mm) Corner Rail. That's 100 lbs. per inch. Imagine how much force is created in our full length 35-3/4" (908 mm) Door Rails!


NOTE: Actual Product Height : 4-1/16" (103 mm)

The Wedge-Lock® Glass Securing System gives you more than a secure attachment to the glass. It provides the fastest installation time of any door rail system offered to the industry. Experienced installers can have a door prepared for installation in less than ten minutes.

CRL Wedge-Lock® Door Rails come completely fabricated and ready-to-install right out of the carton with the End Caps installed. After the rail is installed, the only thing required before hanging the door is to attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the Door Rail. The Adjustable Door Alignment System feature allows you to adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. This is standard on both top and bottom rails.

After the door is installed all you need do to adjust the door is to remove the End Cap. This will reveal three socket head cap bolts. The center bolt is the securing bolt used to lock the adjustable slide in position. The two outer bolts are used to adjust the slide 1/8" (3.2 mm) in or out. The low profile of the adjustable slide allows the pivots with slotted grooves to be moved to a position other than the American Standard Setback of 2-3/4" (69.8 mm). This means we can fabricate them for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails: Models are available to accept 3/8" to 3/4" (10 or 19 mm) glass; a rigid single component housing that will not shift and fall out of adjustment over time because it is not made up of two halves; the internal components do not require removal before installation; the glass securing pads are designed for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails feature the built-in Jamb Alignment Block, but arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails come in several standard finishes, and can be quoted in custom finishes and widths upon request. Rail Specifications, Templates and Hardware Packages are available from CRL Technical Sales e-mail.

ORDERING INFORMATION:
• All Door Rails are supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer Arms and Floor or Overhead Pivots must be ordered separately.
• Models with Locks are supplied with the Lock Mechanism installed. Matching finish Keyed Cylinders or Thumbturns must be ordered separately.
• End Caps are included in the stock Door Rail lengths below. Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.


Product Warning:

Comes standard with Jamb Alignment Block. Arms and Pivots must be ordered separately to meet job requirements.

Resources

• 12 inch Door Rail Patch 5_8 inch and 3_4 inch Glass Template.dwg
• 12 inch Door Rail Patch 5_8 inch and 3_4 inch Glass Template.pdf
• ASTM B221 Compliance Information CRL DR and SR ASTM B221 Compliance Letter.doc
• CRL Wedge-Lock Door Rail System Installation Instructions
• Specifications specdrs.doc
