CRL DR6SDU12SL Black Bronze Anodized 1/2" Glass Door Rail with Lock, 6" x 35-3/4"C.R. Laurence DR6SDU12SL Black Bronze Anodized 1/2" Glass 6" Square Door Rail With Lock - 35-3/4" Length is an exceptional choice for those seeking a robust and stylish entrance system. Designed for monolithic tempered glass, this door rail accommodates 1/2" (12 mm) glass and features a patented Wedge-Lock® Glass Securing System that ensures a secure and stable installation. With a length of 35-3/4" (908 mm) and a height of 6" (152 mm), it provides a sleek profile, suitable for modern architectural designs. The innovative Wedge-Lock® system applies pressure from the bottom using aluminum extrusions and a stainless steel bar, generating over 900 lbs. of force for a secure hold. Installation is a breeze, with experienced professionals able to prepare a door for hanging in under ten minutes. Available in multiple stock architectural finishes, including black bronze anodized, this rail can also be custom-finished to meet specific project requirements. It comes fully fabricated and ready to install, with end caps included. The adjustable door alignment feature allows for minor adjustments post-installation, enhancing ease of use and functionality. For those seeking a reliable and attractive door rail, the C.R. Laurence DR6SDU12SL is the perfect solution.

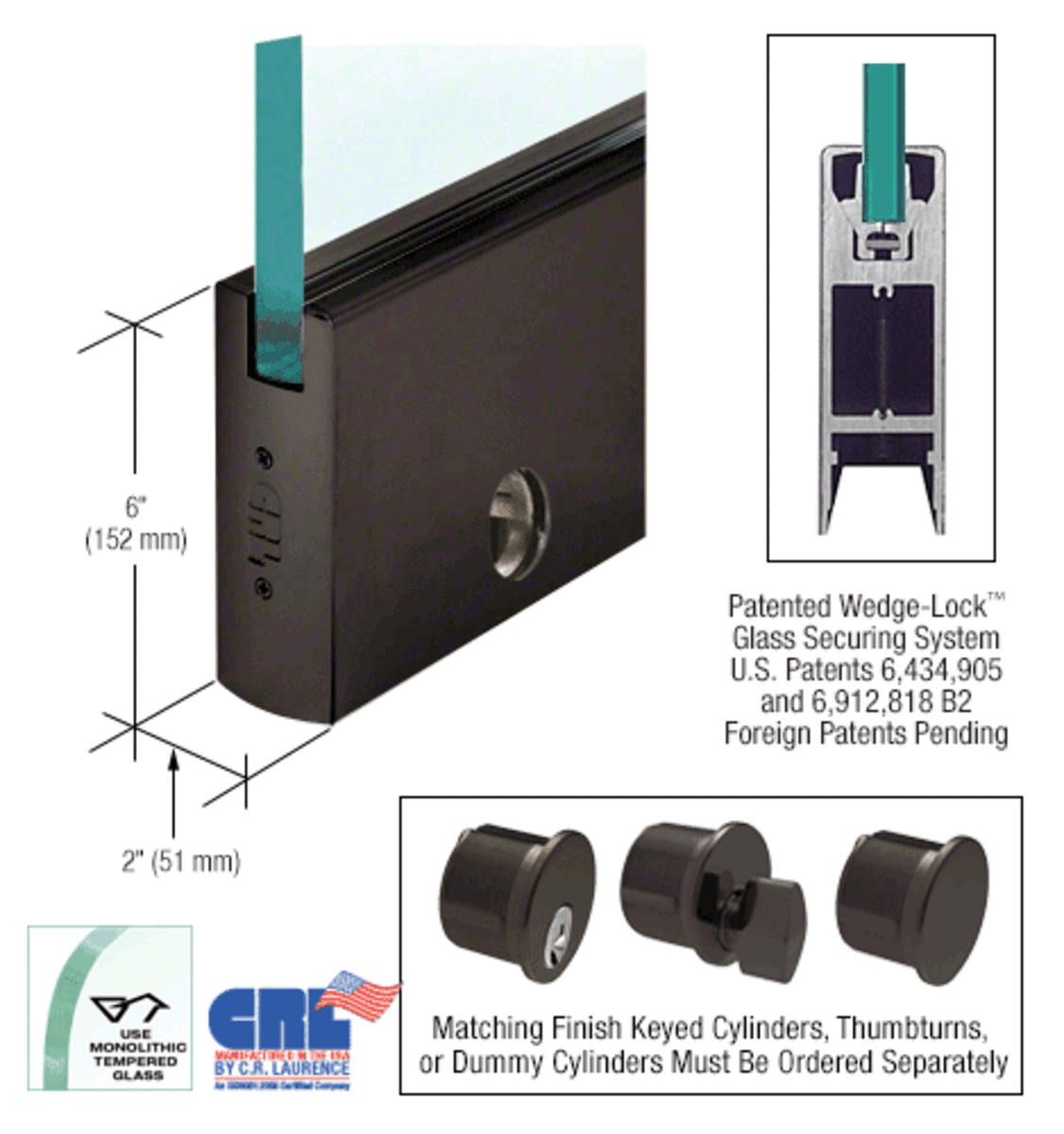

Black Bronze Anodized 1/2" Glass 6" Square Door Rail With Lock - 35-3/4" Length
- 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
- Use Monolithic Tempered Glass
- Patented Wedge-Lock® Glass Securing System
- Models to Fit from 3/8" to 3/4" (10 to 19mm) Glass
- Available in Several Stock Architectural Finishes - Custom Finishes Available
- Available With and Without Locks
- Matching Sidelite Rails Available
An innovative new glass entrance system, the
CRL Wedge-Lock® Door Rail System features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1), a totally new concept for securing the glass in the door rail. It works by applying pressure from the bottom of the door rail, using two glass retaining aluminum extrusions via a flat stainless steel bar. As this bar is pulled down with socket head cap bolts, pressure is applied to the glass retaining aluminum extrusions. The bottom of the extrusions are at an angle and fit into an angled groove in the door rail. As the glass retaining extrusions are being pulled down, the angled wedge in the door rail also pulls the glass retaining extrusions together. This action, along with our specially designed door retaining gasket, creates a tremendous amount of force (more than 900 lbs.) in our 9" (228.6 mm) Corner Rail. That's 100 lbs. per inch. Imagine how much force is created in our full length Door Rails!
NOTE: Actual Product Height : 6" (152 mm)
The Wedge-Lock® Glass Securing System gives you more than a secure attachment to the glass. It provides the fastest installation time of any door rail system offered to the industry. Experienced installers can have a door prepared for installation in less than ten minutes.
CRL Wedge-Lock® Door Rails come completely fabricated and ready-to-install right out of the carton with the End Caps installed. After the rail is installed, the only thing required before hanging the door is to attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the Door Rail. The Adjustable Door Alignment System feature allows you to adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. This is standard on both top and bottom rails.
After the door is installed all you need do to adjust the door is to remove the End Cap. This will reveal three socket head cap bolts. The center bolt is the securing bolt used to lock the adjustable slide in position. The two outer bolts are used to adjust the slide 1/8" (3.2 mm) in or out. The low profile of the adjustable slide allows the pivots with slotted grooves to be moved to a position other than the American Standard Setback of 2-3/4" (69.8 mm). This means we can fabricate them for vertically out-of-square openings.
Other reasons to choose CRL Wedge-Lock® Door Rail System: Models are available to accept 3/8" or 1/2" (10 or 12 mm) glass; a rigid single component housing that will not shift and fall out of adjustment over time because it is not made up of two halves; the internal components do not require removal before installation; the glass securing pads are designed for longevity in extreme environments.
NOTE: All Wedge-Lock® Door Rails feature the built-in Jamb Alignment Block, but arms and pivots must be ordered separately to meet job requirements.
CRL Wedge-Lock® Door Rails come in several standard finishes, and can be quoted in custom finishes and widths upon request. Rail Specifications, Templates and Hardware Packages are available from CRL Technical Sales
CRL Technical Sales.
ORDERING INFORMATION:
All Door Rails are supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer Arms and Floor or Overhead Pivots must be ordered separately.
Models with Locks are supplied with the Lock Mechanism installed. Matching finish Keyed Cylinders or Thumbturns must be ordered separately.
End Caps are included in the stock Door Rail. Door Rail length (including End Caps) must be specified when ordering Custom Length Rails.
For replacement End Caps enter DREC6S into the search bar box.
Product Warning:
Comes standard with Jamb Alignment Block. Arms and Pivots must be ordered separately to meet job requirements.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Cylinder Hole Prep: Both Sides
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 1/2 in. (12 mm)
Height: 6 in. (152 mm)
Includes Lock: Yes
Length: 35-3/4 in. (908 mm)
Material: Aluminum
Nominal Height: 6 in. (152 mm)
Profile: Square
Shipping Limitations: None
Width: 2 in. (51 mm)
