C.R. Laurence DRX Assembled Rail Body for 3/4" Glass Thickness offers an innovative dry-glaze door rail solution that emphasizes flexibility and customization. Designed for smooth operation, this modular system allows for easy adjustments to accommodate both standard and custom glass lengths, ensuring versatility for various applications. Constructed from durable Aluminum 6061-T6, the rail body measures 10-1/2" long, making it lightweight and easy to handle on-site. Engineered for performance, each unit has been rigorously tested for up to 500,000 cycles, which ensures longevity and reliability in high-traffic environments. The preparation for floor locks and Blumcraft panic handles enhances security and functionality, while the option for configuring it as patch rails further expands its utility. With a glazing thickness of 3/4" and dimensions of 2-1/2" in height and 1-3/4" in width, the DRX rail body is designed to seamlessly integrate into your architectural projects. Side covers and end caps can be effortlessly attached during or post-installation, streamlining the process and reducing lead times. Choose the C.R. Laurence DRX Assembled Rail Body for a premium solution that combines efficiency, style, and strength.

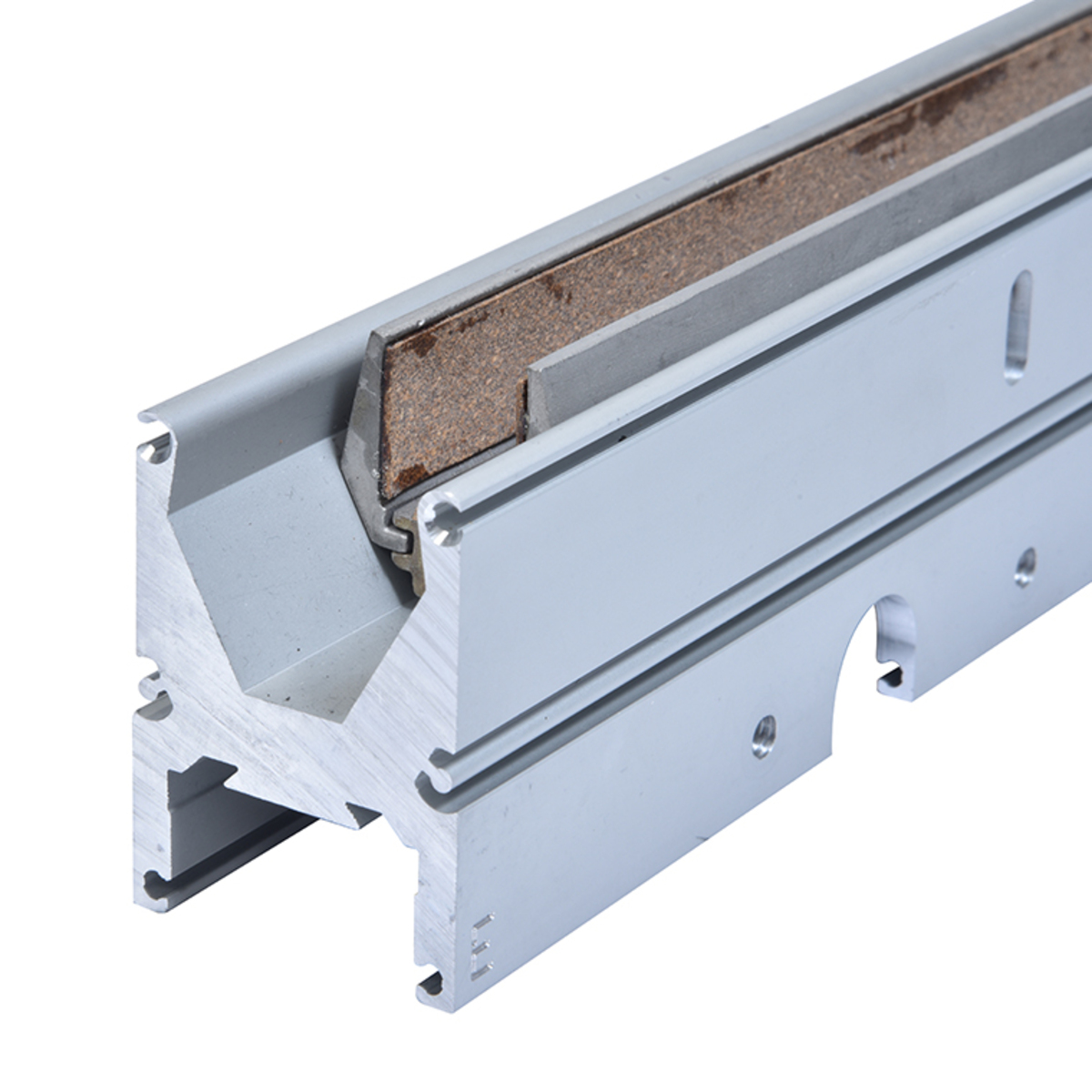

DRX Assembled Rail Body for 3/4" Glass Thickness
The CRL DRX™ Modular Door Rail System is a revolutionary dry-glaze door rail solution specifically designed to deliver maximum flexibility and customization with minimal lead times. The patented, modular system deconstructs a standard door rail to offer greater control over when, where, and how door rails are installed. Two individual DRX door rail bodies are secured to the glass panel, no matter the width. Side covers and end caps are easily attached during or after door installation. This break-through innovation provides versatility, faster lead times, and easier on-site installation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Glazing Thickness: 3/4 in. (19 mm)
Height: 2-1/2 in. (64 mm)
Length: 10-1/2 in. (267 mm)
Material: Aluminum
Shipping Limitations: None
Width: 1-3/4 in. (44 mm)
