CRL DW48360XUA DW Deluxe Unglazed Service Window with Half-Track, Standard Size

CRL DW48360XUA DW Deluxe Unglazed Service Window with Half-Track, Standard Size

C.R. Laurence DW48360XUA Standard Size Manual Deluxe Service Window Unglazed with Half-Track offers a robust solution for both commercial and interior applications. Designed for heavy-duty use, this service window is perfect for drive-thrus and walk-up service points, providing enhanced security and performance. The window ships unglazed, allowing for customization with either 1/4" or 1/2" glass thanks to the included vinyl glazier. Its popular frame size of 47-1/2" W x 35-3/4" H fits a 48x36 opening, making installation straightforward. The OX clerkside configuration features a sliding panel without a track below, ensuring unobstructed passage across the counter. A sturdy self-latching handle enhances security, making this window an ideal choice for both interior and exterior applications. Available in a sleek Satin Anodized finish, the DW48360XUA is also customizable for specific needs. Additional glazing vinyl options are available for varying glass thicknesses, providing flexibility for any project. Please note that while this window is designed for heavy-duty use, it is not intended to serve as a primary weather seal. For those seeking durability and practicality in service windows, the C.R. Laurence DW48360XUA stands out as a reliable choice.

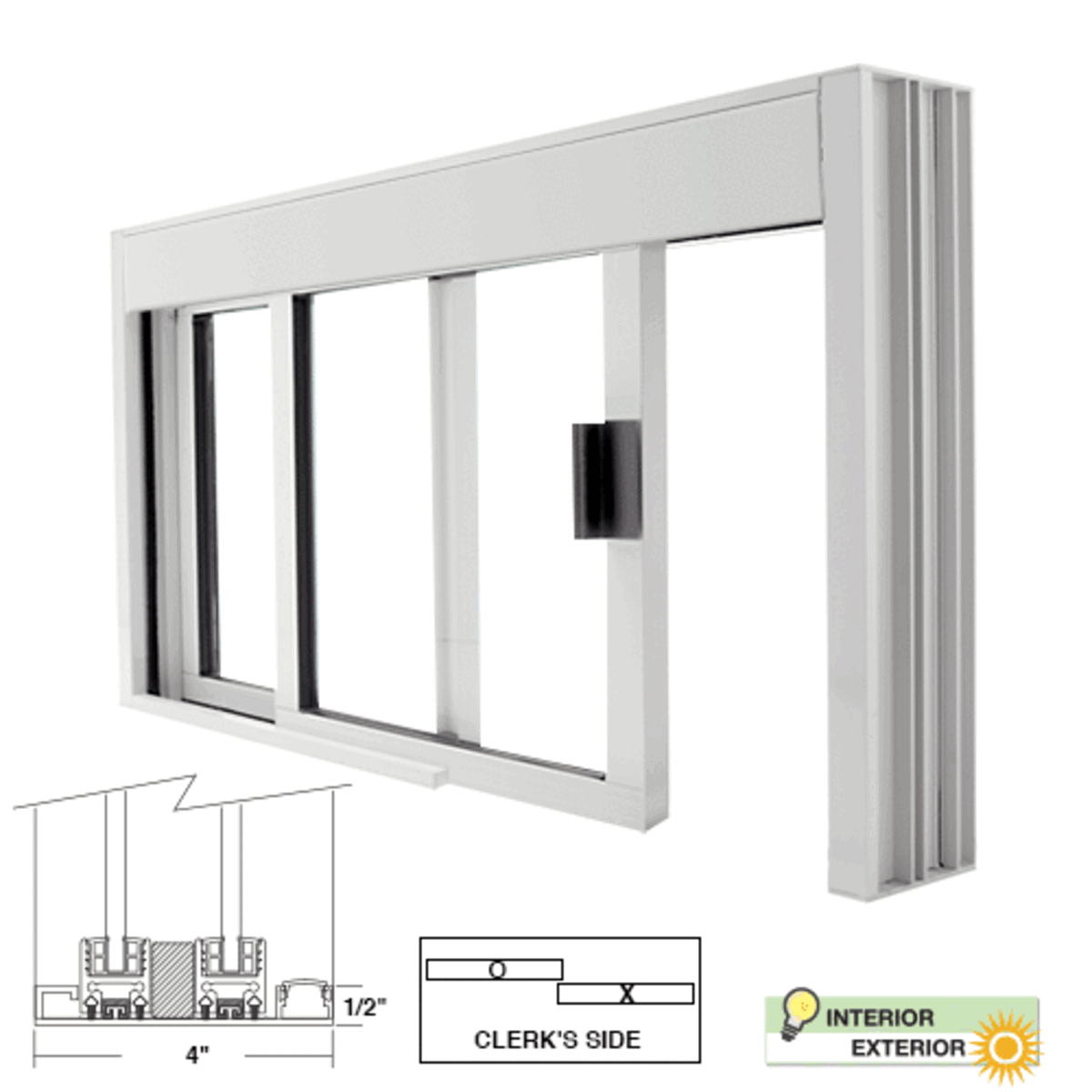

Standard Size Manual DW Deluxe Service Window Unglazed with Half-Track

• Ships Unglazed, Vinyl for 1/4" or 1/2" Glass
• OX Clerkside (X=sliding panel)
• Sturdy Self-Latching Handle
• Popular 47-1/2" W x 35-3/4" H Frame Size fits 48x36 Opening
• No Track Under Sliding Panel, Manual Open/Manual Close

CRL Standard Size Manual Deluxe Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.



Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.

CRL DW standard size models that ship unglazed come with two sets of glazing vinyl: one for ¼" glass, and one for ½" glass (the larger vinyl will also accept 9/16" glazing).

For 5/8" glazing vinyl (5/8" is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.

For 3/8" glass, the provided ½" vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.

Glass sizes for CRL DW standard size models with 47-1/2"wide x 35-3/4"h frame size and an aluminum half-track, are 21-3/8" W x 31-15/16" H (two pieces same size).


Product Warning:

Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
