CRL DW48360XUDU DW Deluxe Unglazed Service Window - Standard Size with Half-Track

CRL DW48360XUDU DW Deluxe Unglazed Service Window - Standard Size with Half-Track

C.R. Laurence DW48360XUDU Standard Size Manual Deluxe Service Window Unglazed with Half-Track offers a robust solution for both commercial and interior applications. This service window ships fully assembled and ungrazed, featuring vinyl designed for either 1/4" or 1/2" glass, ensuring versatility in glazing options. With an OX clerkside design, the sliding panel allows for a seamless service experience. Measuring a popular 47-1/2" W x 35-3/4" H, this unit fits perfectly into a 48x36 opening. The absence of a track under the sliding panel enhances accessibility, making it ideal for drive-thru or walk-up service environments. Equipped with a sturdy self-latching handle, security is prioritized without compromising ease of use. Available in Satin Anodized or Duranodic Bronze finishes, the DW48360XUDU is designed for heavy-duty performance. The frame's depth measures 4 inches, with a sill height of 1/2 inch, ensuring durability and stability. While primarily intended for service applications, it's not meant to serve as the primary building seal against severe weather conditions. Custom versions are also available, offering tailored solutions for unique project needs. Experience quality and functionality with C.R. Laurence's industry-leading service window.

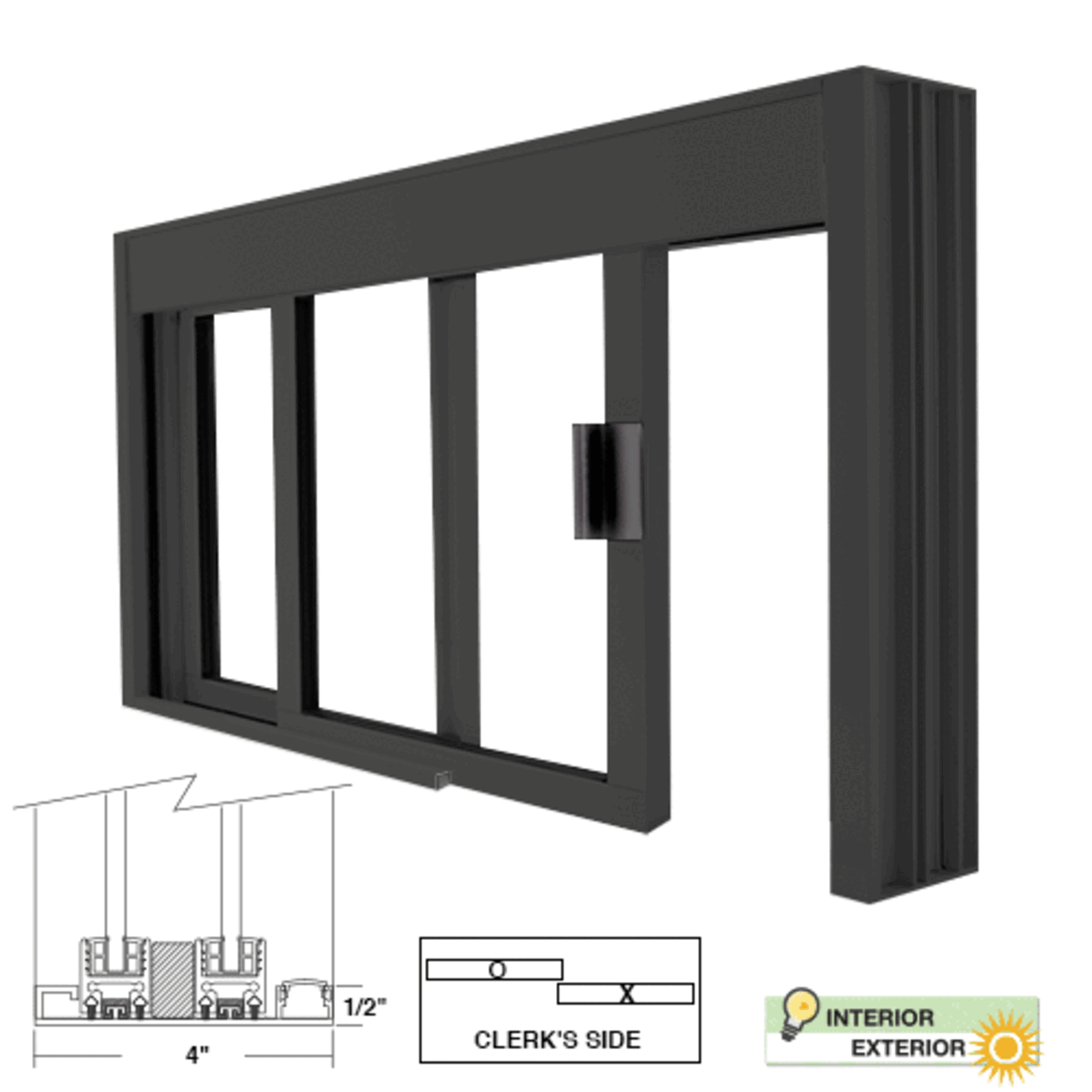

Standard Size Manual DW Deluxe Service Window Unglazed with Half-Track

• Ships Assembled and Unglazed, Vinyl for 1/4" or 1/2" Glass
• OX Clerkside (X=sliding panel)
• Sturdy Self-Latching Handle
• Popular 47-1/2" W x 35-3/4" H Frame Size fits 48x36 Opening
• No Track Under Sliding Panel, Manual Open/Manual Close

CRL Standard Size Manual Deluxe Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.



Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.

CRL DW standard size models that ship unglazed come with two sets of glazing vinyl: one for ¼" glass, and one for ½" glass (the larger vinyl will also accept 9/16" glazing).

For 5/8" glazing vinyl (5/8" is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.

For 3/8" glass, the provided ½" vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.

Glass sizes for CRL DW standard size models with 47-1/2" W x 35-3/4" H frame size and an aluminum half-track, are 21-3/8" W x 31-15/16" H (two pieces same size).


Product Warning:

Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
