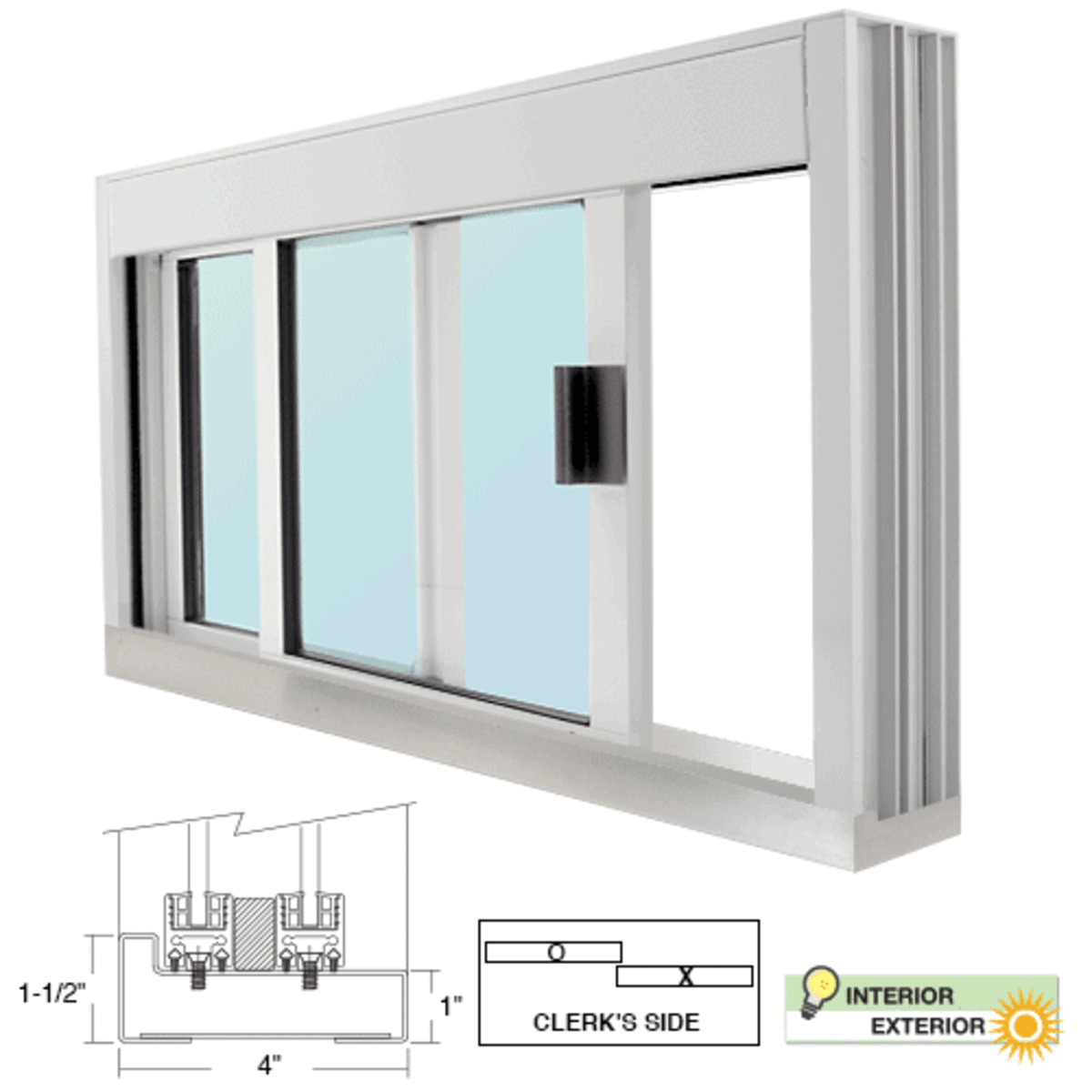

C.R. Laurence DW4836S0XGA Standard Size Manual DW Deluxe Service Window is engineered for heavy-duty commercial use, perfect for drive-thru and walk-up service applications. This versatile window features a popular frame size of 47-1/2" W x 35-3/4" H, designed to fit a 48" x 36" opening. It ships factory glazed with 1/4" clear tempered glass, ensuring durability and clarity. The window boasts an OX clerkside configuration, offering a sliding panel for ease of access. Equipped with a sturdy self-latching handle, it enhances security while providing smooth operation for manual open and close functionality. The stainless steel step-sill includes a water dam, making it ideal for exterior settings while preventing water intrusion. Available finishes include Satin Anodized or Duranodic Bronze, allowing for seamless integration into various architectural styles. With a frame depth of 4 inches and a sill height of 1-1/2 inches, it strikes a balance between functionality and aesthetic appeal. Please note, while these service windows are designed for robust use, they are not intended to be the primary seal against severe weather. Custom versions are also available, providing flexibility for unique project requirements.
Standard Size Manual DW Deluxe Service Window Glazed with S.S.Step-Sill
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Deal Tray Included: No
Finish/ Color:: Satin Anodized
Frame Depth: 4 in. (101.6 mm)
Glazed: Yes
Glazing Thickness: 1/4 in. (6 mm)
Glazing Type: Clear Tempered
Height: 36 in. (914.4 mm)
Latch Type: Self Latching
Material: Aluminum
Screen: No
Security Feature: Latching Handle
Shipping Limitations: No UPS - Common Carrier Only
Sill Height: 1-1/2 in. (38.1 mm)
Usage: Interior,Exterior
Width: 48 in. (1219.2 mm)
