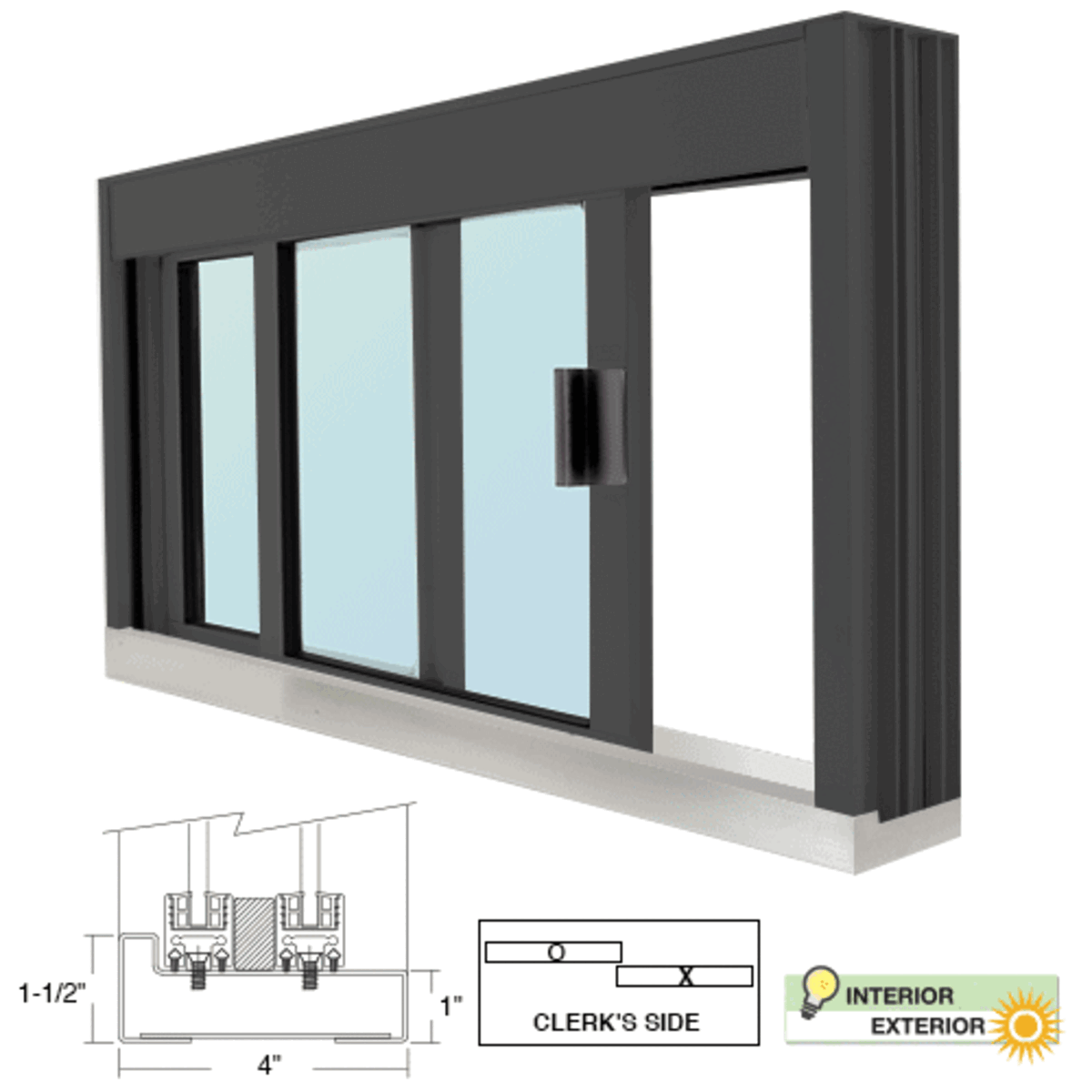

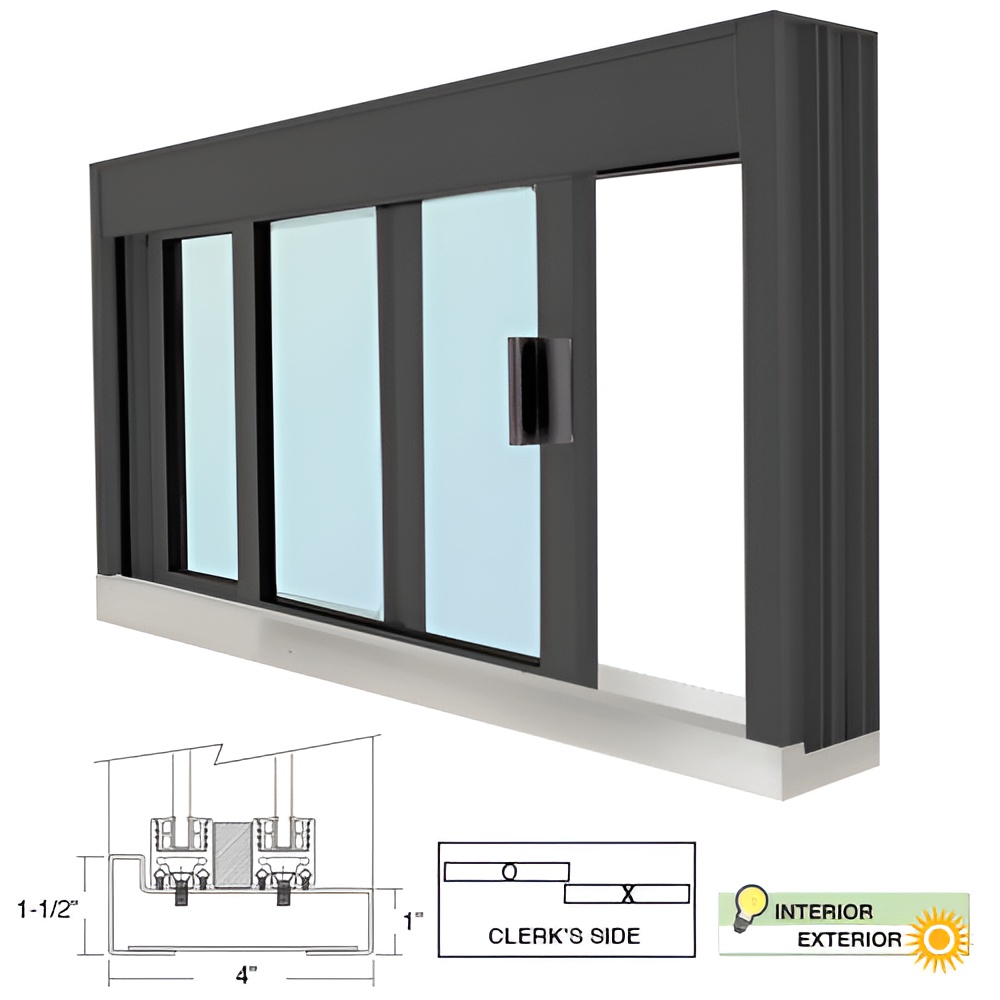

C.R. Laurence DW4836S0XGDU Standard Size Manual DW Deluxe Service Window is designed for heavy-duty commercial use, making it an excellent choice for drive-thru or walk-up service applications. This window is shipped factory glazed with 1/4" clear tempered glass, ensuring durability and clarity for optimal visibility. The popular frame size of 47-1/2" W x 35-3/4" H fits standard openings of 48" x 36", allowing for quick installation. Featuring an OX clerkside with a sliding panel, this model includes a self-latching handle for easy operation. The stainless steel step-sill, equipped with a water dam, enhances functionality, especially for exterior applications. For added security, an optional keyed lock assembly (DWKEYLOCK) is available separately. Constructed from aluminum and available in a Duranodic Bronze anodized finish, this window blends seamlessly into any architectural style. The frame depth of 4 inches and a sill height of 1-1/2 inches provide robust support and performance, while its manual open/close operation adds to its ease of use. Please note that while the DW Deluxe Service Window is built for heavy-duty applications, it is not intended to serve as the primary building seal against severe weather conditions.
Standard Size Manual DW Deluxe Service Window Glazed with S.S.Step-Sill
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Duranodic Bronze Anodized
Frame Depth: 4 in. (101.6 mm)
Glazing Thickness: 1/4 in. (6 mm)
Glazing Type: 1/4" Clear Tempered Glass
Handle Type: Self Latching
Material: Aluminum
Screen: No
Shipping Limitations: No UPS - Common Carrier Only
Sill Height: 1-1/2 in. (38.1 mm)
Usage: Interior,Exterior
