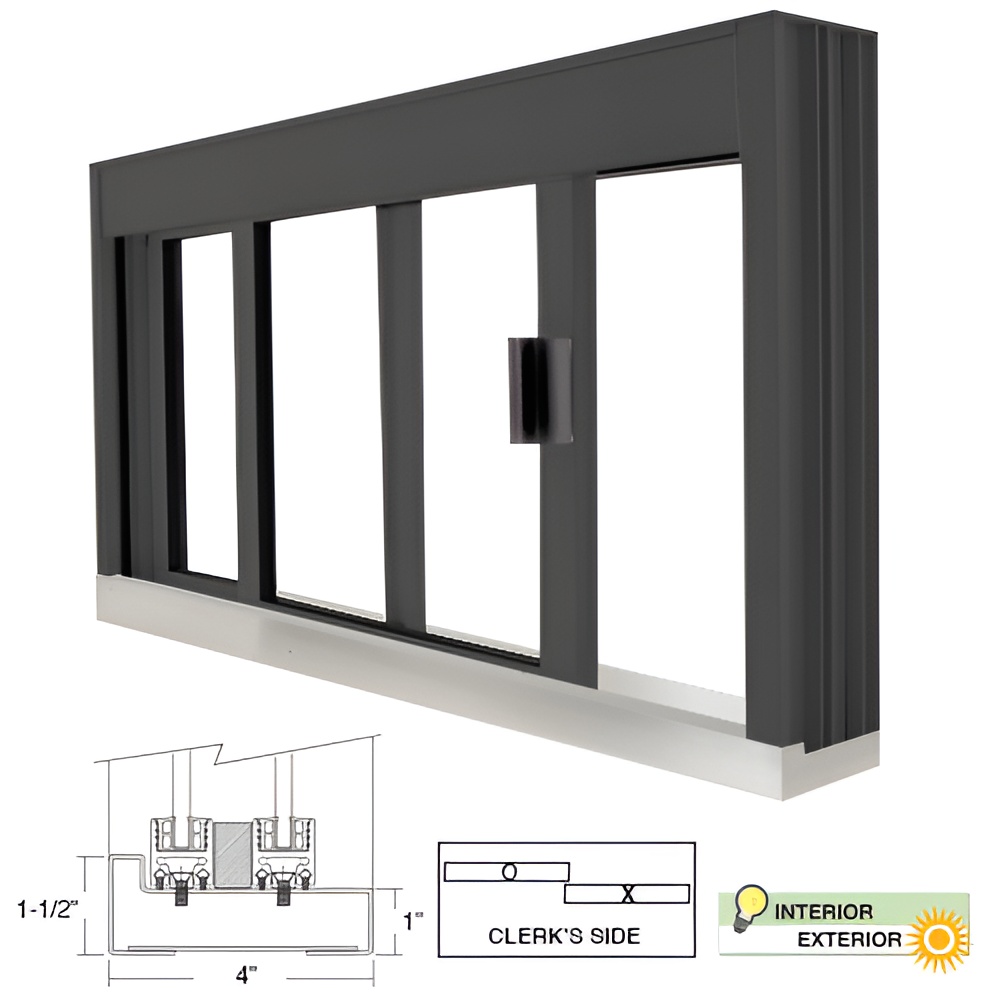

C.R. Laurence DW4836S0XUDU Standard Size Manual Deluxe Service Window Unglazed with S.S. Step-Sill offers a robust solution for commercial service needs, whether for drive-thru or walk-up applications. This window is designed to ship fully assembled and unglazed, allowing you to easily customize it with either 1/4" or 1/2" glass using the included vinyl. With a generous frame size of 47-1/2" W x 35-3/4" H, it fits standard openings of 48" x 36". The window features an OX clerkside configuration with a sturdy self-latching handle, providing both functionality and security. Constructed from high-quality aluminum and available in a Duranodic Bronze Anodized finish, it combines durability with an appealing aesthetic. The stainless steel step-sill includes a built-in water dam, ideal for exterior installations. For versatility, CRL provides options for different glazing thicknesses and custom versions upon request. The window is suited for both interior and exterior use, though it is important to note that it is not designed to serve as a primary weather barrier. With the DW4836S0XUDU, you can ensure superior performance and style for your service window needs.

Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill

• Ships Assembled and Unglazed, Vinyl for 1/4" or 1/2" Glass
• OX Clerkside (X=sliding panel)
• Sturdy Self-Latching Handle
• Popular 47-1/2" W x 35-3/4" H Frame Size fits 48" x 36" Opening
• S.S.Step-Sill with Water Dam, Manual Open/Manual Close

CRL Standard Size Manual Deluxe Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.



Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.

CRL DW standard size models that ship unglazed come with two sets of glazing vinyl: one for ¼" glass, and one for ½" glass (the larger vinyl will also accept 9/16" glazing).

For 5/8" glazing vinyl (5/8" is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.

For 3/8" glass, the provided ½" vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.

Glass sizes for CRL DW standard size models with 47-1/2" W x 35-3/4" H frame size and a stainless-steel step-sill, are 21-3/8" W x 30-15/16" H (two pieces same size).


Product Warning:

Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
