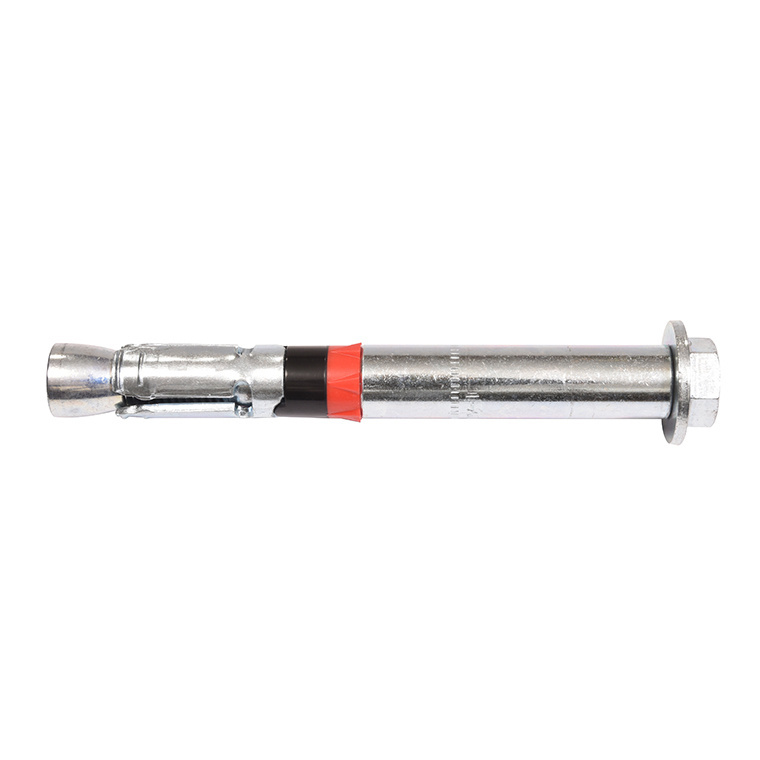

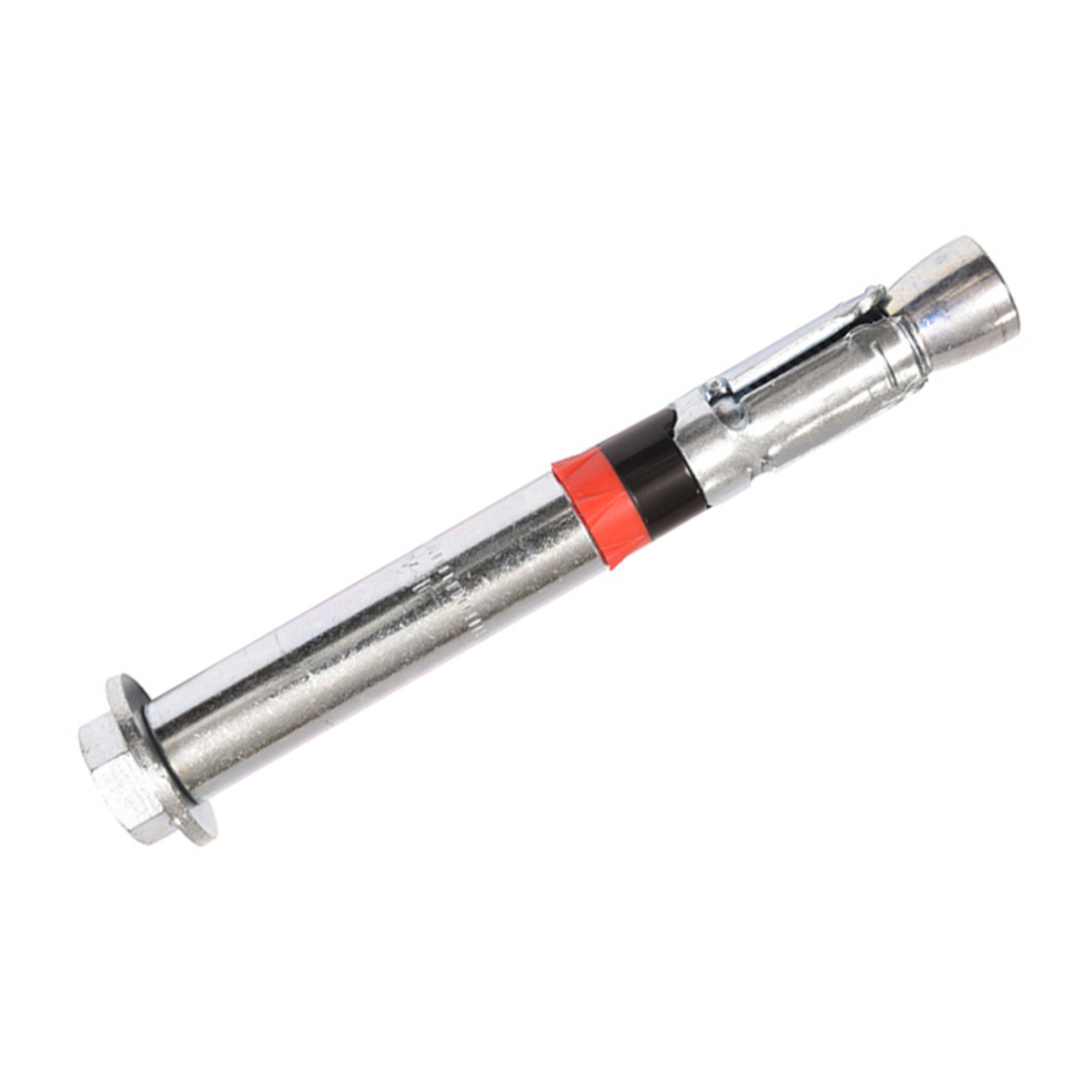

CRL EBA335 Hilti M12 6-1/8" HSL-4 Expansion Anchor

C.R. Laurence EBA335 Hilti M12 6-1/8" Long HSL-4 Expansion Anchor is engineered for exceptional performance in a multitude of applications, particularly when used with CRL's Railing Systems. This heavy-duty expansion bolt is IBC compliant and features a torque-controlled design, ensuring reliable performance under both static and dynamic loads. Crafted from durable carbon steel, the EBA335 delivers optimum performance even in cracked concrete within the tension zone, providing excellent load values. The anchor boasts a maximum thickness of 20 mm for fastened materials, with a minimum base material thickness of 160 mm and an effective anchorage depth of 80 mm. With an anchor length of 156 mm, it is designed to meet the rigorous demands of various construction scenarios. This expansion anchor is not only versatile but also compliant with strict safety standards, making it a trustworthy choice for professionals in the building industry. Additionally, it ships conveniently via UPS, ensuring timely delivery without shipping limitations. Please note the warning regarding reproductive harm, a standard compliance notice. Elevate your construction projects with the reliability and strength of C.R. Laurence EBA335 Hilti HSL-4 Expansion Anchor.

Hilti M12 6-1/8" Long HSL-4 Expansion Anchor

• Approved for Use with CRL's Railing Systems
• Optimized Design Provides Reliable Performance in a Wide Range of Applications Optimized Design Provides Reliable Performance in a Wide Range of Applications
• Delivers Optimum Performance in Cracked Concrete in the Tension Zone, Resulting in Excellent Load Value

Approved for Use with CRL's Railing Systems Optimized Design Provides Reliable Performance in a Wide Range of Applications Optimized Design Provides Reliable Performance in a Wide Range of Applications
Delivers Optimum Performance in Cracked Concrete in the Tension Zone, Resulting in Excellent Load Value

The Hilti® HSL-4 is an IBC compliant, torque controlled, heavy-duty expansion bolt designed for high performance in static and dynamic load applications.
