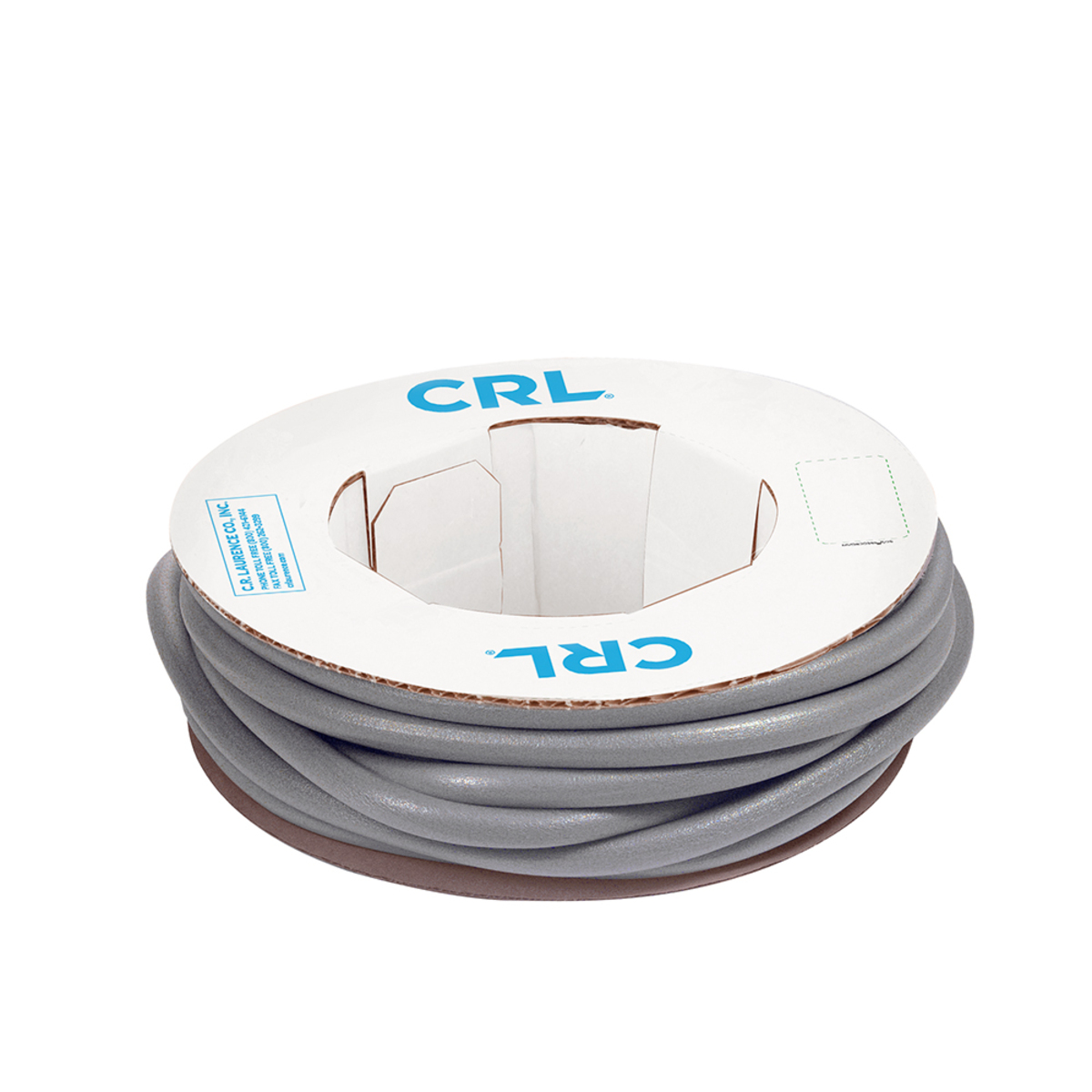

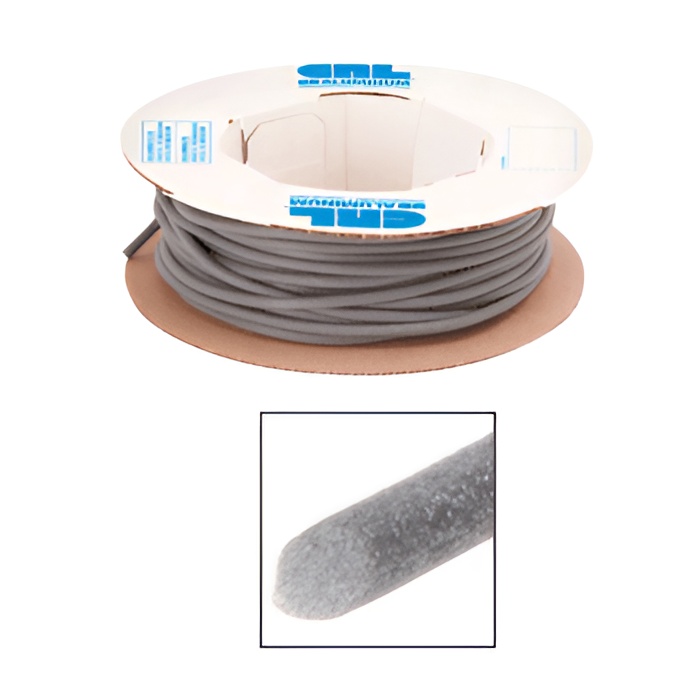

CRL EF1C 1" Closed Cell Backer Rod - 100' RollC.R. Laurence EF1C 1" Closed Cell Backer Rod - 100' Roll offers a reliable solution for effective sealant application in various construction projects. This round, flexible, closed cell polyethylene foam serves as both a backing and a thickness control device for elastomeric and other cold-applied sealants, ensuring proper joint design and application. Designed to be compatible with all cold-applied sealants, the Backer Rod features a unique exterior "skin" that prevents adhesion, eliminating the need for a bond breaker. Its optimal round shape promotes an ideal "hourglass" configuration for joint sealants, allowing for efficient stretching and recovery during joint movement, thus minimizing stress at adhesion points. With a diameter of 1 inch and a roll length of 100 feet, this backer rod is suitable for joints ranging from 3/16" to 1-5/8" (5 to 41 mm). It is chemically inert and resistant to oils, gasoline, and solvents, ensuring durability without staining or bleeding into the sealant. Suitable for use in a variety of applications including expansion joints, curtain walls, and building rehabilitation projects, the CRL Closed Cell Backer Rod is engineered to withstand temperature extremes from -45°F to 160°F (-43°C to 71°C), making it a versatile choice for professionals in the field.
1" Closed Cell Backer Rod - 100 Foot Roll
- Easy Control of Sealant Application Thickness
- Non-Bonding Surface – No Additional Bond Breaker Required
- Compatible with All Cold-Applied Sealants

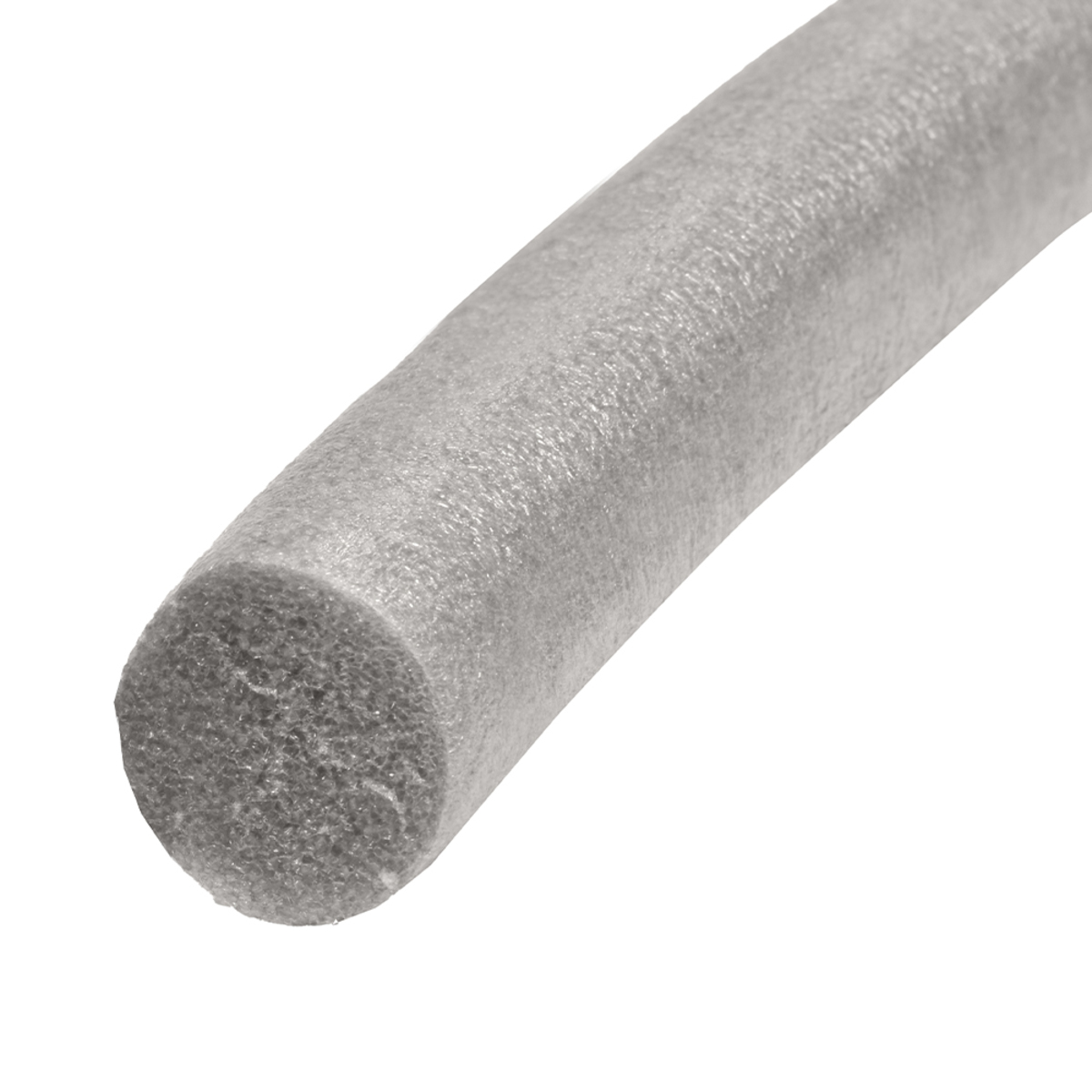

CRL Closed Cell Backer Rod is a round, flexible polyethylene foam with an exterior "skin" designed to control sealant depth and promote proper joint design. The backer rod serves as a backing material for elastomeric and other cold-applied sealants preventing excessive use of the sealant. The backer rod’s non-bonding surface prevents sealants from sticking and allows the sealant to move and flex reducing stress at adhesion points improving sealant performance.
CRL Closed Cell Backer Rod is available for purchase in the following diameters - 1/4" to 2" (7 to 50mm)
CRL Closed Cell Backer Rod will not absorb water or wick water to joint walls, which could cause adhesive failure. It is compatible with cold-applied sealants, and its round shape promotes the preferred "hourglass" shape for joint sealants.
Temperature Limits:
-45°F to 160°F (-43°C to 71°C)
Application:
Backer Rod is commonly used in expansion/control joints with cold-applied sealants. Typical applications include curtain walls, construction partitions, precast panels, parking decks, door and window frames, coping, floor and deck joints, horizontal traffic joints, and building rehab projects.
Size Selection:
When choosing a CRL Closed Cell Backer Rod, it is important for proper size selection as it controls the depth of the sealant bead and acts as a bond breaker to prevent back-side adhesion. It must be oversized approximately 25-50% wider than the joint to ensure a tight fit.
Storage:
Store in a well-ventilated are. Do not store products in direct sunlight. Keep away from heat sources and open flames.
Joint Preparation:
- New Joints: Clean thoroughly to remove form-release agents, curing compounds, or debris. Ensure the joint is clean and dry before applying sealant.
- Repairing Old Joints: Remove all old sealant or filler. Use wire brushing and air blasting for effective cleaning. If using an air compressor, ensure it has moisture and oil traps.
Installation Instructions:
- Prepare the surface by following the Joint Preparation directions.
- Measure and Select: Choose the correct backer rod size based on the joint width.
- Set Depth: Install the backer rod at the depth recommended by the sealant manufacturer, ensuring the sealant forms an "hourglass" shape.
- Use the Right Tools: Install with a blunt tool or roller. The Cat. No. T607CU605 or Cat. No. SBRR for smooth installation.
THE PRODUCT CAN COME IN DIFFERENT SHADES / TONES, BUT THIS DOES NOT AFFECT THE OVERALL PERFORMANCE OF THE PRODUCT.
Product Warning:
Do not tear, puncture, crease, over compress or stretch during insertion. Always use the correct size Backer Rod for the particular application. Refer to the size selection chart. Do not use with hot-applied sealants or hot melt adhesives where their surface temperature is over 160ºF (71ºC).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25.4 mm)
Finish/ Color:: Gray
Rod Diameter: 1 in. (25.4 mm)
Roll Length: 100 ft.(30 m)
Shipping Limitations: None
Type: Closed Cell
