CRL EG100F3RKPT Blumcraft Right Hand Reverse Rail Keyed Access Control Handle

CRL EG100F3RKPT Blumcraft Right Hand Reverse Rail Keyed Access Control Handle

C.R. Laurence EG100F3RKPT Blumcraft Painted Right Hand Reverse Rail Mount Keyed Access "F" Exterior Top Securing Electronic Egress Control Handle is designed to enhance both security and aesthetics for all-glass doors. Recognized as a UL and ULC component, this handle offers a sophisticated solution for maintaining access control without sacrificing visual appeal. Ideal for 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, the EG100 series provides a sleek tubular design with a diameter of 1-1/4" (32 mm). The handle is available in various finishes, including polished and brushed stainless, satin and polished brass, and oil-rubbed bronze. Custom finishes and sizes can also be ordered to fit specific project needs, with shipping typically occurring within one to two weeks. Incorporating an electronic switch concealed within the handle, this device effortlessly releases the magnetic lock when the interior actuation bar is activated. Meeting A.D.A. requirements, it features a clear lower section to ensure unobstructed access. For projects demanding both security and elegance, the CRL EG100F3RKPT is an excellent choice that balances functionality with modern design.

Blumcraft Painted Right Hand Reverse Rail Mount Keyed Access "F" Exterior Top Securing Electronic Egress Control Handle

• UL and ULC Recognized Component
• Ideal for Maintaining Security and Aesthetics
• Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local building codes as they relate to the acceptability of electro-magnetic locking hardware.

CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.

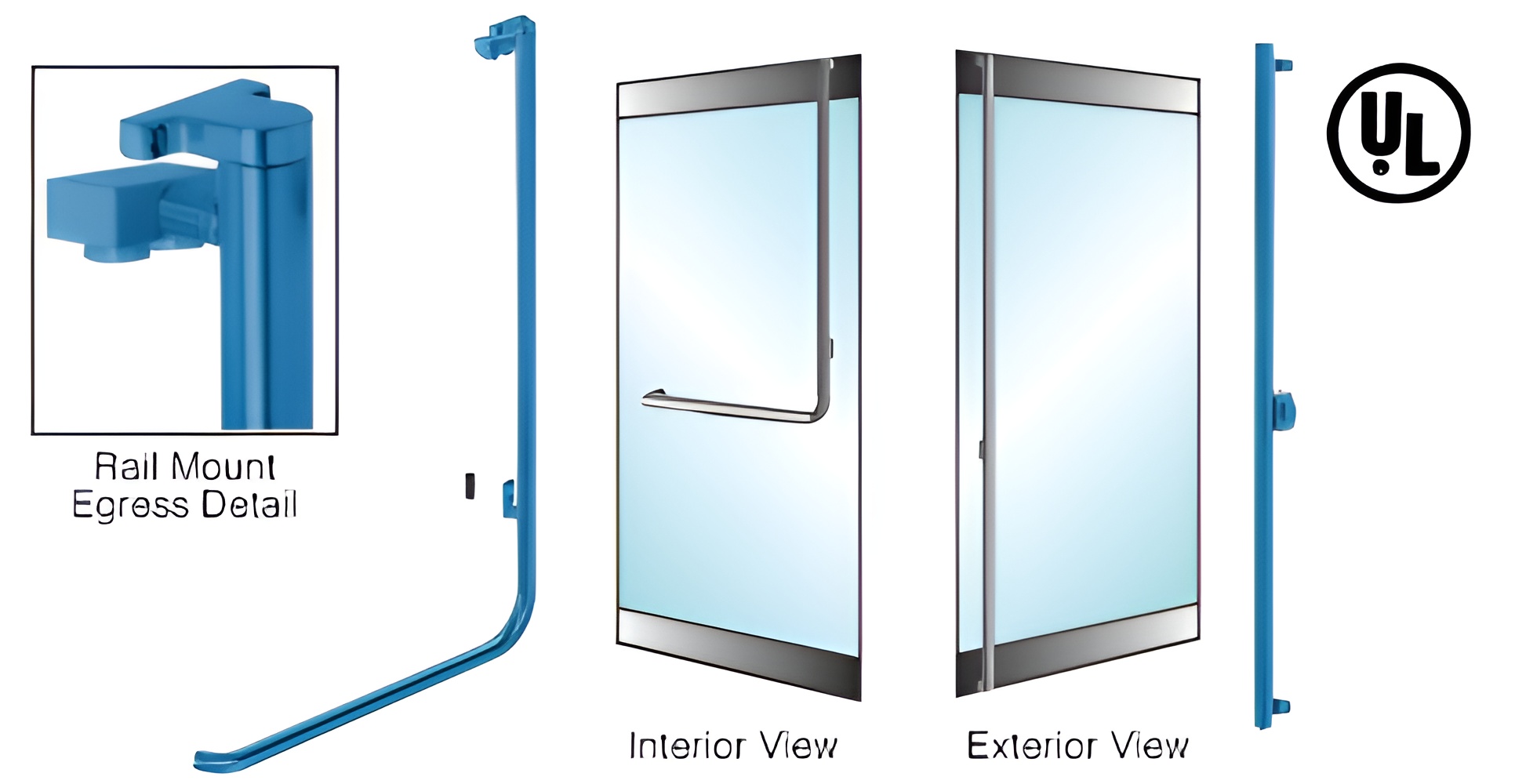

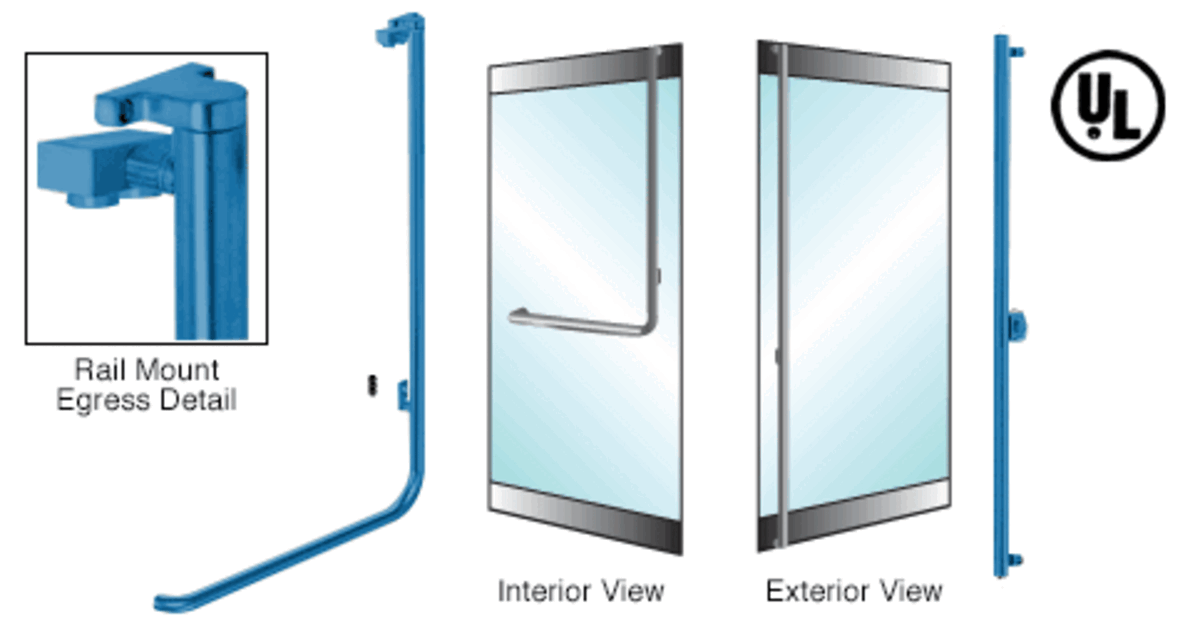

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.


Product Warning:

Must specify with or without Keyed Access Device.

Resources

• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• EG100 EG110 Notice of Authorization - UL Mark
• EG100F Series Electronic Egress Handle Installation Instructions
• Electronic Egress Control Handle - 100 and 110 Series Quote Request Form
• Handle Warranty
• Notice of Acceptance EG NofA.pdf
• Specifications specdrs.doc
