CRL EG100F4RK0RB Blumcraft Oil Rubbed Bronze Left Hand Keyed Access Egress Control Handle

CRL EG100F4RK0RB Blumcraft Oil Rubbed Bronze Left Hand Keyed Access Egress Control Handle

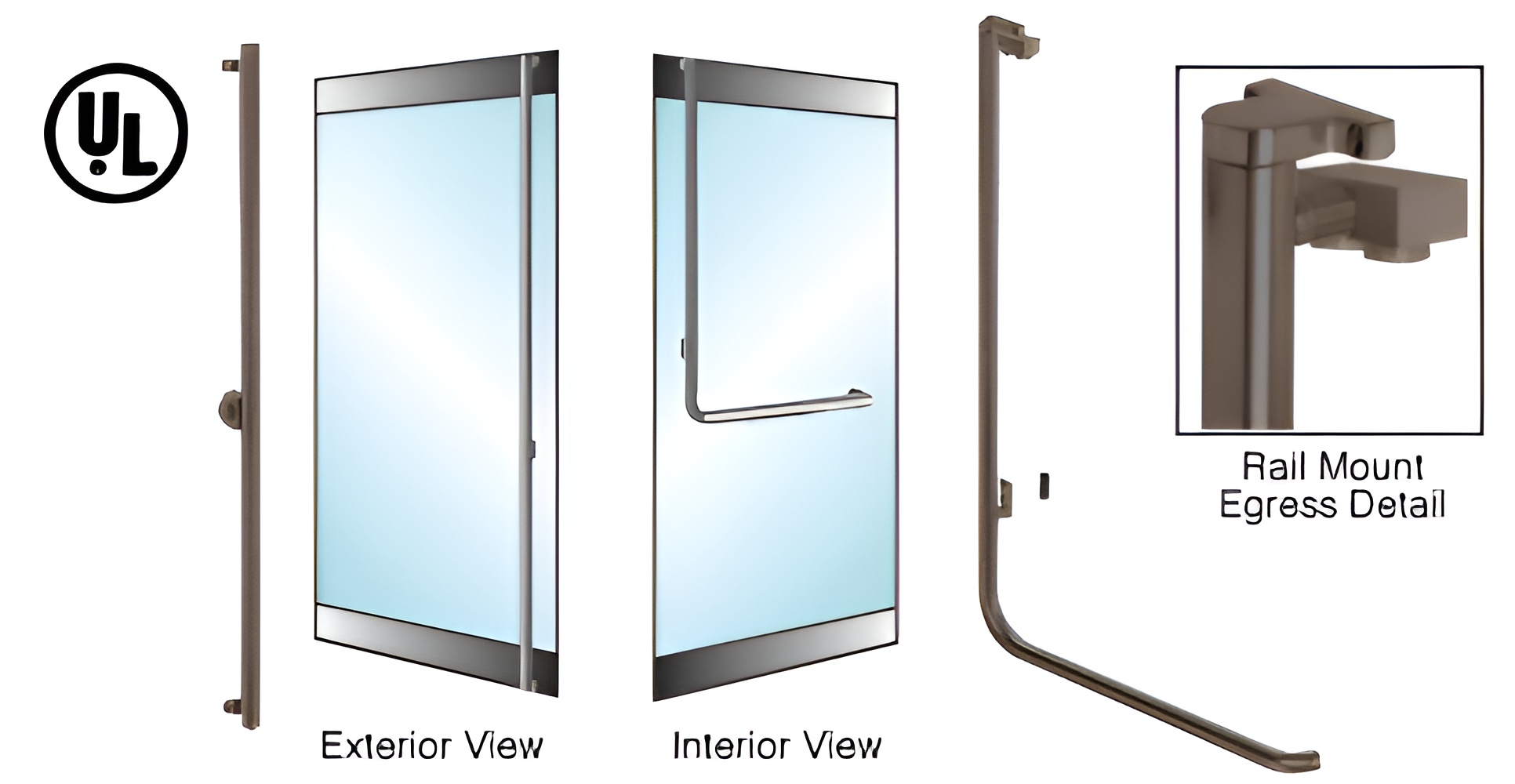

C.R. Laurence EG100F4RK0RB Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "F" Exterior Top Securing Electronic Egress Control Handle combines security and elegance, making it an ideal choice for ‘all-glass’ door applications. Recognized as a UL and ULC component, this handle is designed to meet stringent building codes while enhancing the aesthetic appeal of any entryway. Crafted from durable brass with an Oil Rubbed Bronze finish, this handle is available for both 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, ensuring versatility in installation. The electronic switch, integrated within the vertical tubing, facilitates the release of the magnetic lock upon actuation from the interior, providing seamless access control. Measuring a slender 1-1/4" (32 mm) in diameter, its design minimizes obstruction, complying with A.D.A. requirements. For added convenience, custom finishes and sizes are available upon special order, allowing for tailored solutions to fit your project needs. The EG100F4RK0RB handle is part of a comprehensive line that includes panic devices and deadbolt handles, enabling a consistent look throughout your installation. Ensure your space remains secure and stylish with this sophisticated access control solution from C.R. Laurence.

Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "F" Exterior Top Securing Electronic Egress Control Handle

• UL and ULC Recognized Component
• Ideal for Maintaining Security and Aesthetics
• Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local building codes as they relate to the acceptability of electro-magnetic locking hardware.

CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.


Product Warning:

Must specify with or without Keyed Access Device. Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date.

Resources

• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• EG100 EG110 Notice of Authorization - UL Mark
• EG100F Series Electronic Egress Handle Installation Instructions
• Electronic Egress Control Handle - 100 and 110 Series Quote Request Form
• Handle Warranty
• Notice of Acceptance EG NofA.pdf
• Specifications specdrs.doc
