CRL EG100FS4RKBS Blumcraft Brushed Stainless Left Hand Keyed Access Egress Control Handle

CRL EG100FS4RKBS Blumcraft Brushed Stainless Left Hand Keyed Access Egress Control Handle

C.R. Laurence EG100FS4RKBS Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "FS" Exterior Top Securing Electronic Egress Control Handle offers a sophisticated solution for maintaining security without compromising aesthetic appeal. Recognized by UL and ULC, this handle is designed specifically for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, ensuring versatility in various applications. This elegant electronic egress control handle features a concealed switch within its slender 1-1/4" (32 mm) tubular design, which activates the magnetic lock upon actuation from the interior. Available in a range of finishes-including brushed stainless, polished brass, and oil rubbed bronze-this product can also be customized to meet specific project needs, with custom sizes shipping within one to two weeks. Moreover, the design complies with A.D.A. requirements, ensuring that the lower half of the door remains unobstructed for accessibility. Built from durable Alloy 304 stainless steel, this handle not only provides a sleek look but also promises longevity and reliability. As an integral part of the CRL-Blumcraft® line, it delivers both style and functionality, making it ideal for high-traffic environments where security is paramount.

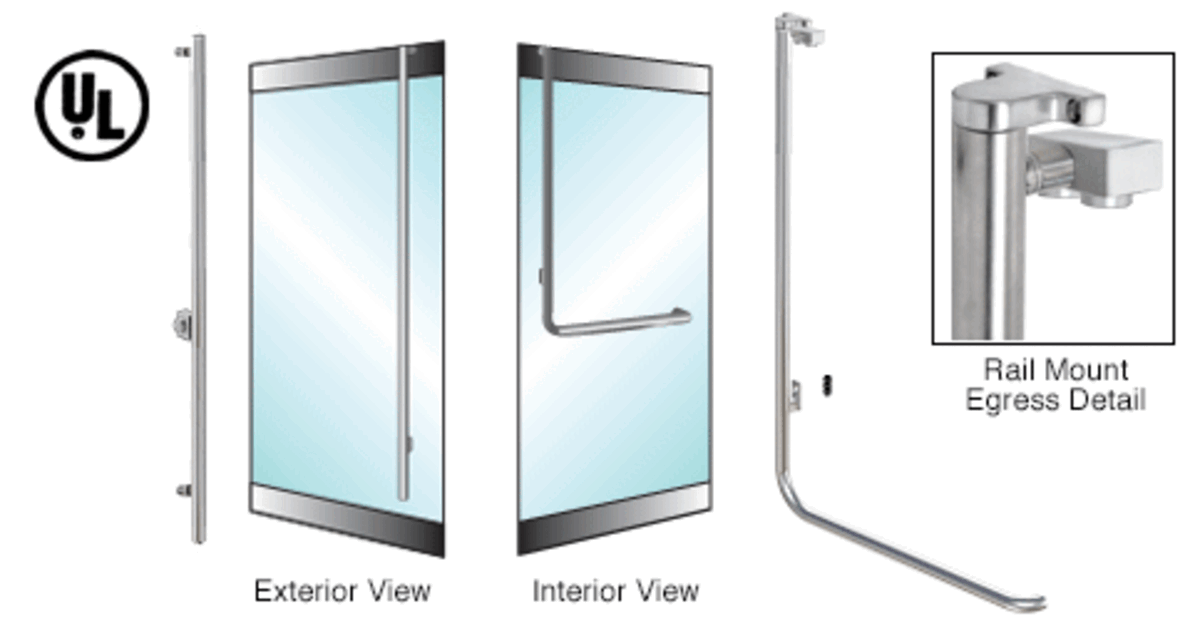

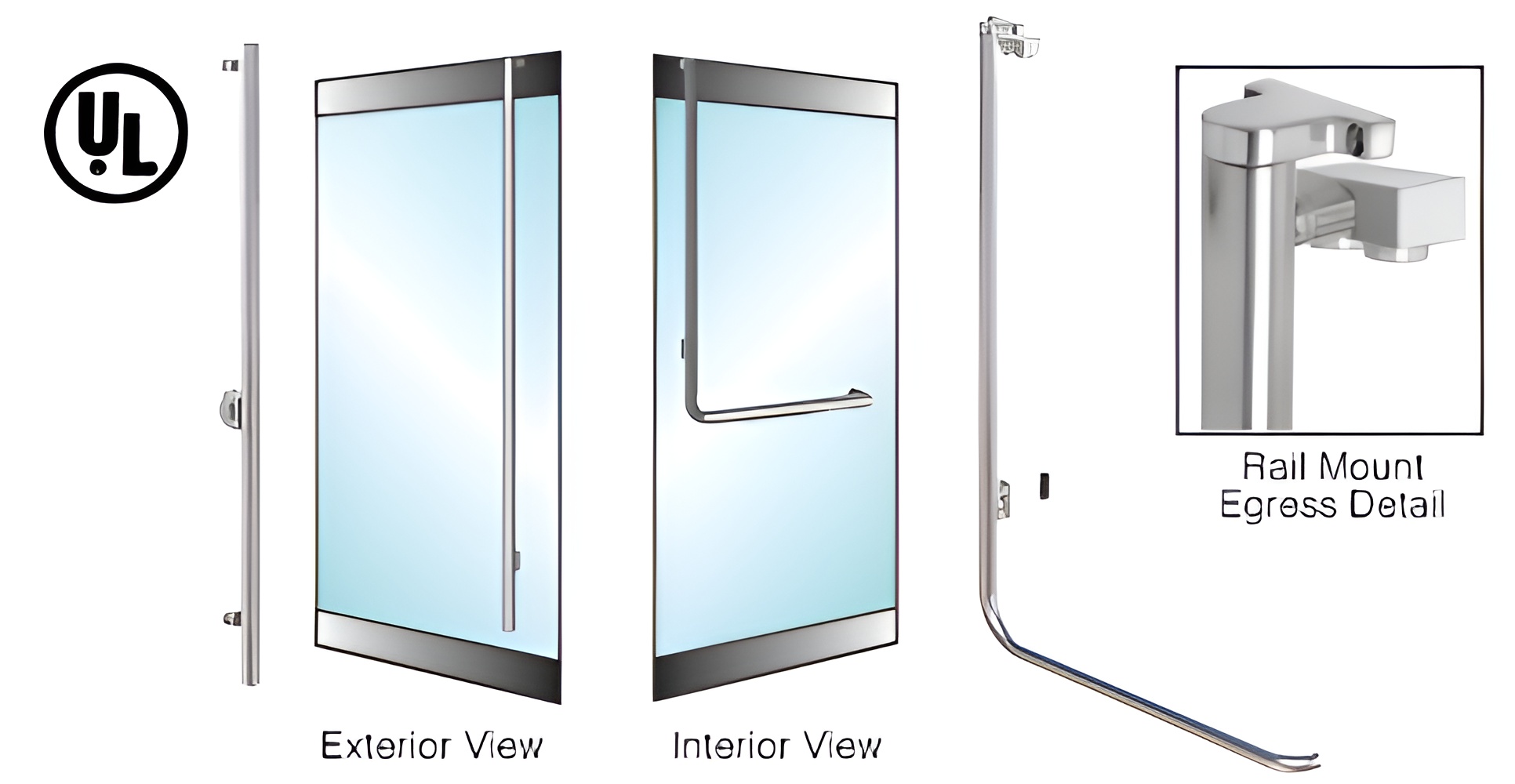

Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "FS" Exterior Top Securing Electronic Egress Control Handle

• UL and ULC Recognized Component
• Ideal for Maintaining Security and Aesthetics
• Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local building codes as they relate to the acceptability of electro-magnetic locking hardware.

CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.


Product Warning:

Must specify with or without Keyed Access Device.

Stainless Steel Advisory:

Resources

• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• CRL Stainless Steel Disclaimer
• EG100 EG110 Notice of Authorization - UL Mark
• EG100A Series Electronic Egress Handle Installation Instructions
• Electronic Egress Control Handle - 100 and 110 Series Quote Request Form
• Handle Warranty
• Notice of Acceptance EG NofA.pdf
• Specifications specdrs.doc
• Specifications specdrs.doc
