CRL EG12BR Brass Edge Grip for 1/2" MaterialC.R. Laurence EG12BR Brass Edge Grip for 1/2" Material provides a sleek and efficient solution for attaching decorative panels or signage without the need for drilling into the material. Designed for 1/2" (12.7 mm) thick materials, this versatile edge grip can be applied to corners and edges, making it ideal for a variety of installation scenarios. With a diameter of 1-1/4" (32 mm), the EG12BR is crafted from durable brass, ensuring both strength and aesthetic appeal. It is supplied with an EGCS Socket Head Cap Screw, facilitating easy installation and adjustment of panels. For optimal support, it's recommended to install Edge Grips at the top, bottom, and sides of heavier panels. This product is specifically designed for rectangular or square panels, providing a reliable hold without compromising the material’s integrity. To secure the Edge Grip to a substrate, use the Cat. No. 12X112PHPSMS screw, ideally installed into wood blocking. Additionally, replacement cover disks are available if repairs or replacements are needed. While brass offers a polished finish, it's important to note that it may oxidize over time, leading to a tarnished appearance. Enhance your projects with C.R. Laurence's EG12BR Edge Grip for a professional and refined finish.
Brass Edge Grip for 1/2" Material
- For 1/2" (12.7 mm) Material Thickness
- No Drilling Required in Glass or Panel Materials
- Can be Used on Corners and Edges of Panels
- Supplied with a EGCS Socket Head Cap Screw
CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2" Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

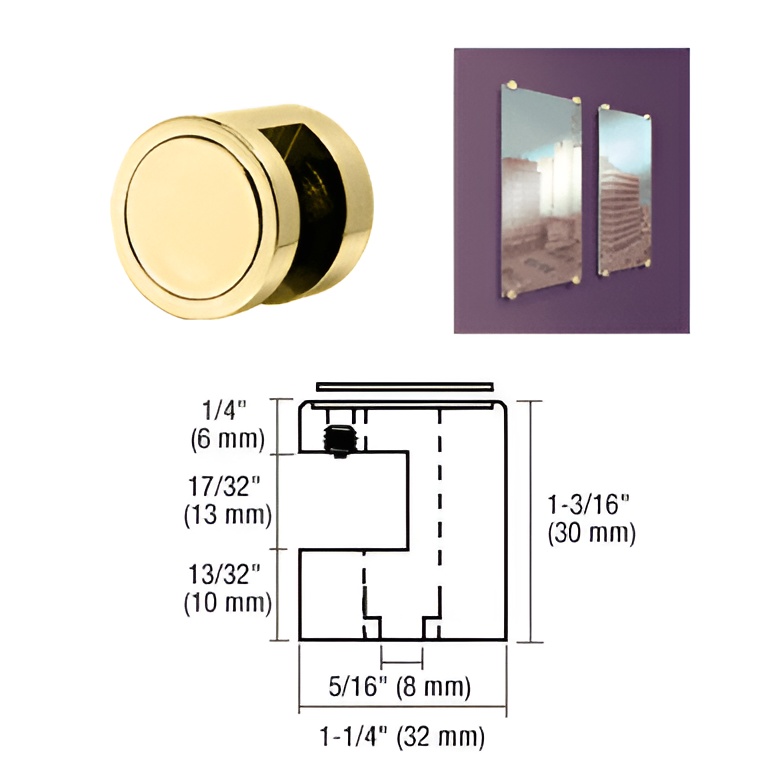

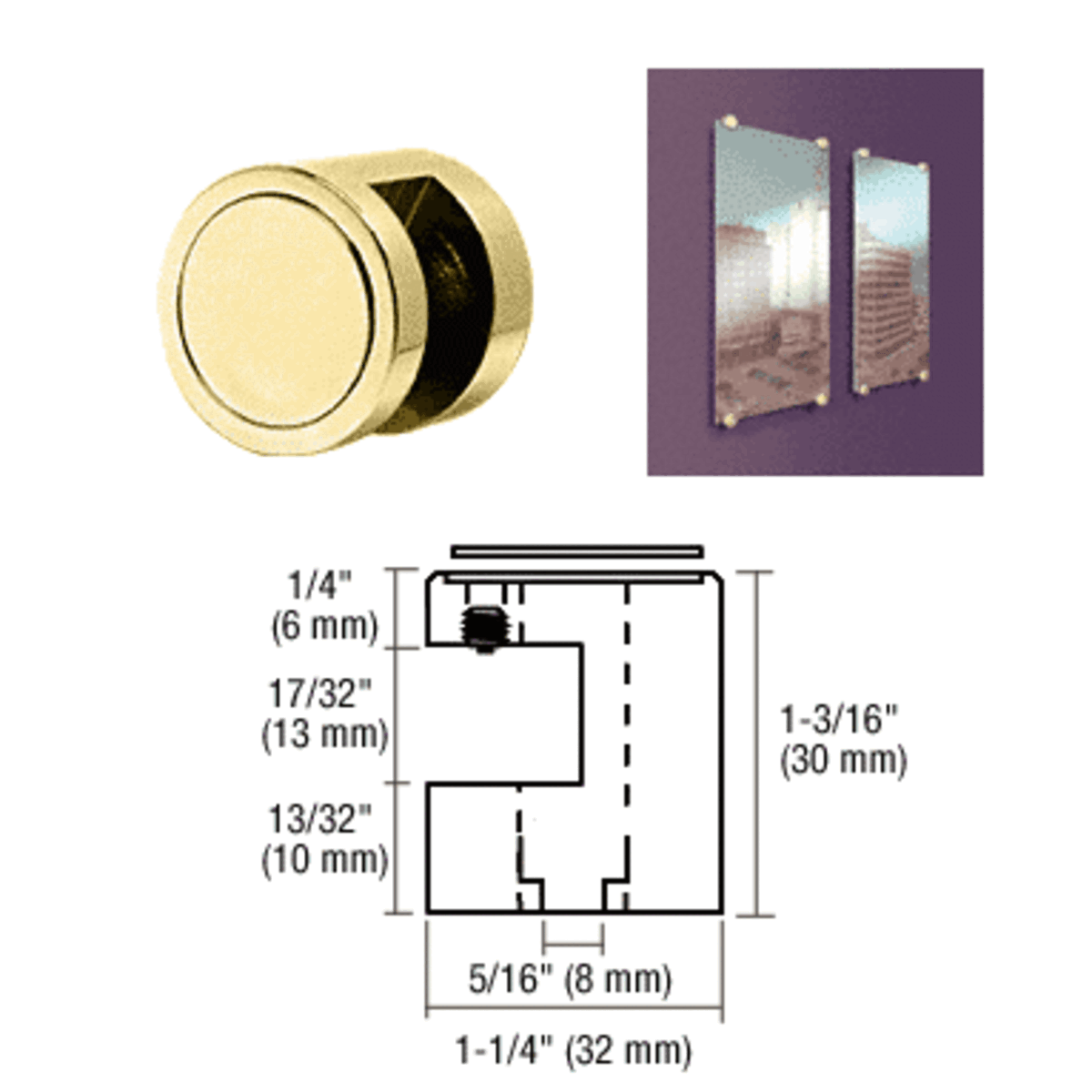

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement
Cover Disks are available if you need to repair or replace one.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (31.8 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 1/2 in. (12 mm)
Height: 1-3/16 in. (30.2 mm)
Material: Brass
Shipping Limitations: None
