CRL EG12BS 316 Brushed Stainless Edge Grip for 1/2" MaterialC.R. Laurence EG12BS 316 Brushed Stainless Edge Grip for 1/2" Material is designed to provide a secure and stylish solution for attaching decorative panels without the need for drilling. This innovative edge grip accommodates 1/2" (12.7 mm) thick materials, making it ideal for a variety of applications, from signage to decorative installations. The Edge Grip allows for quick installation and easy adjustments, enhancing flexibility in mounting. With a diameter of 1-1/4" (32 mm) and crafted from durable 316 stainless steel, the EG12BS offers both strength and aesthetic appeal, featuring a brushed finish that complements modern design elements. The design is versatile, suitable for use on corners and edges of panels, ensuring a seamless look. Each unit comes with an EGCS socket head cap screw for added convenience. For maximum support, it is recommended to install the Edge Grips at the top, bottom, and sides of heavier panels. While the product is resistant to corrosion, periodic maintenance is advised to preserve its finish. If you require replacements, cover disks are available. Perfect for professionals and knowledgeable homeowners alike, C.R. Laurence Edge Grips set a standard in quality and design excellence.
316 Brushed Stainless Edge Grip for 1/2" Material
- For 1/2" (12.7 mm) Material Thickness
- No Drilling Required in Glass or Panel Materials
- Can be Used on Corners and Edges of Panels
- Supplied with a EGCS Socket Head Cap Screw
CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2" Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

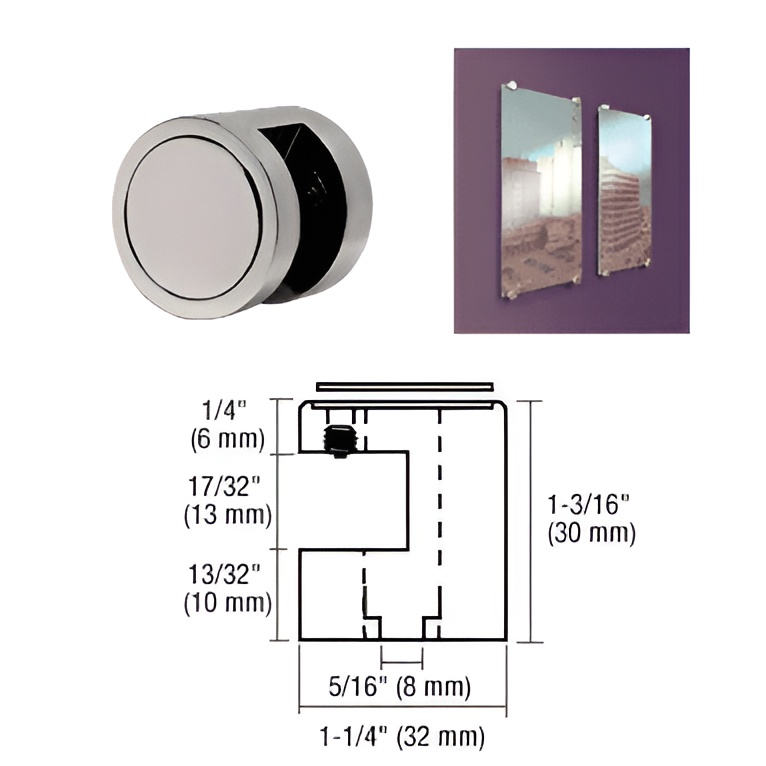

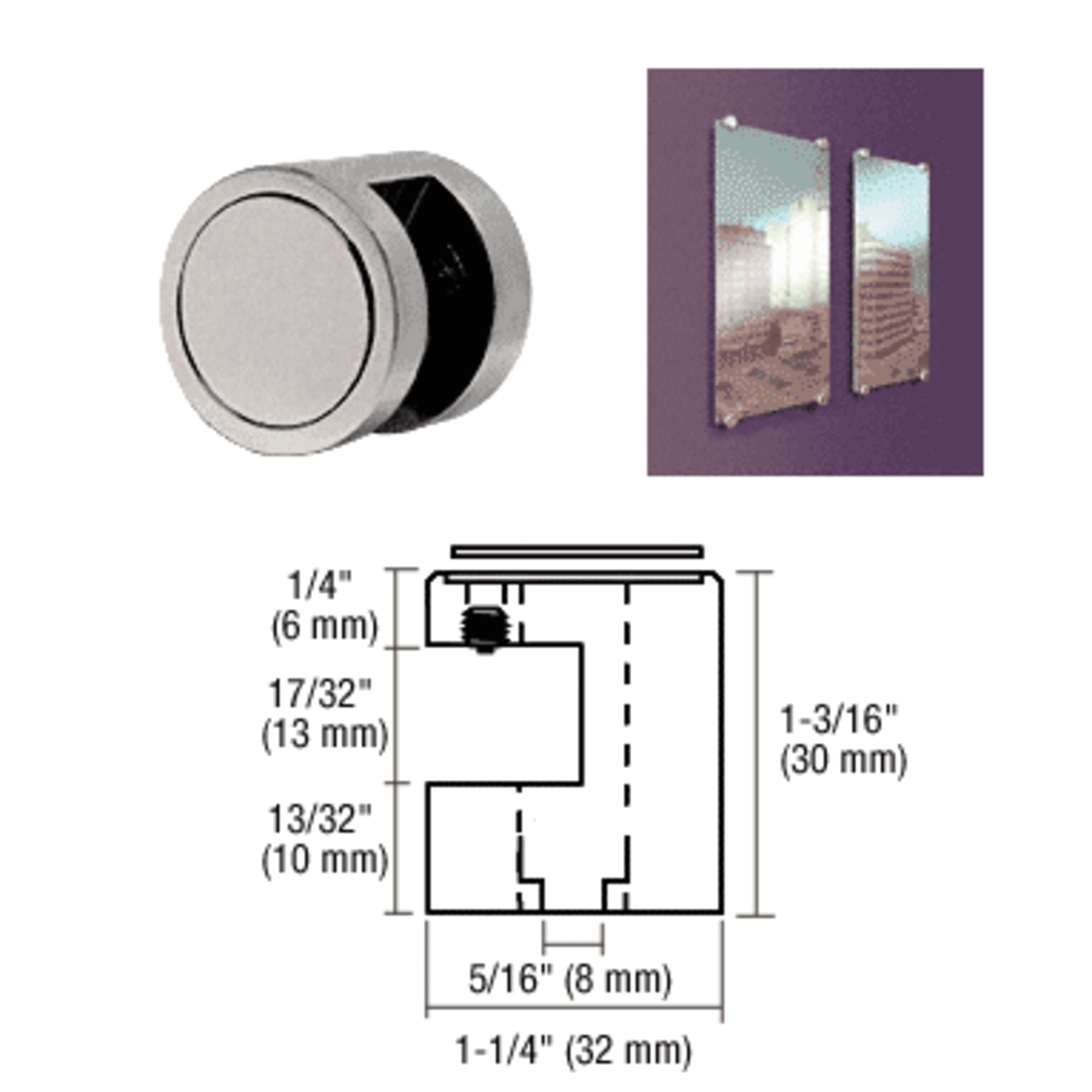

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement
Cover Disks are available if you need to repair or replace one.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (31.8 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Height: 1-3/16 in. (30.2 mm)
Material: 316 Stainless Steel
Shipping Limitations: None
