CRL EG12MBL Matte Black Edge Grip for 1/2" MaterialC.R. Laurence EG12MBL Matte Black Edge Grip for 1/2" Material offers a sleek and innovative solution for securely attaching decorative panels or signage without the need for drilling into the material. Designed specifically for 1/2" (12.7 mm) thick materials, this edge grip allows for a clean installation, making it ideal for corners and edges of panels. The ingenious design simplifies adjustments and repositioning, ensuring versatility in various applications. Each unit is supplied with an EGCS socket head cap screw, enhancing the product's reliability and ease of use. The 1-1/4" (32 mm) diameter ensures a robust grip while maintaining an elegant matte black finish that complements modern architectural aesthetics. For optimal support, it is recommended to use multiple Edge Grips at the top, bottom, and sides of heavier panels. To facilitate installation, CRL recommends using a No. 12 by 1-1/2" pan head Phillips sheet metal screw (Cat. No. 12X112PHPSMS) for direct attachment to a substrate, ideally into wood blocking. Engineered for rectangular or square panels, the EG12MBL is a crucial addition to your glazing toolkit, ensuring both functionality and style in your architectural projects.
Matte Black Edge Grip for 1/2" Material
- For 1/2" (12.7 mm) Material Thickness
- No Drilling Required in Glass or Panel Materials
- Can be Used on Corners and Edges of Panels
- Supplied with a EGCS Socket Head Cap Screw
CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2" Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

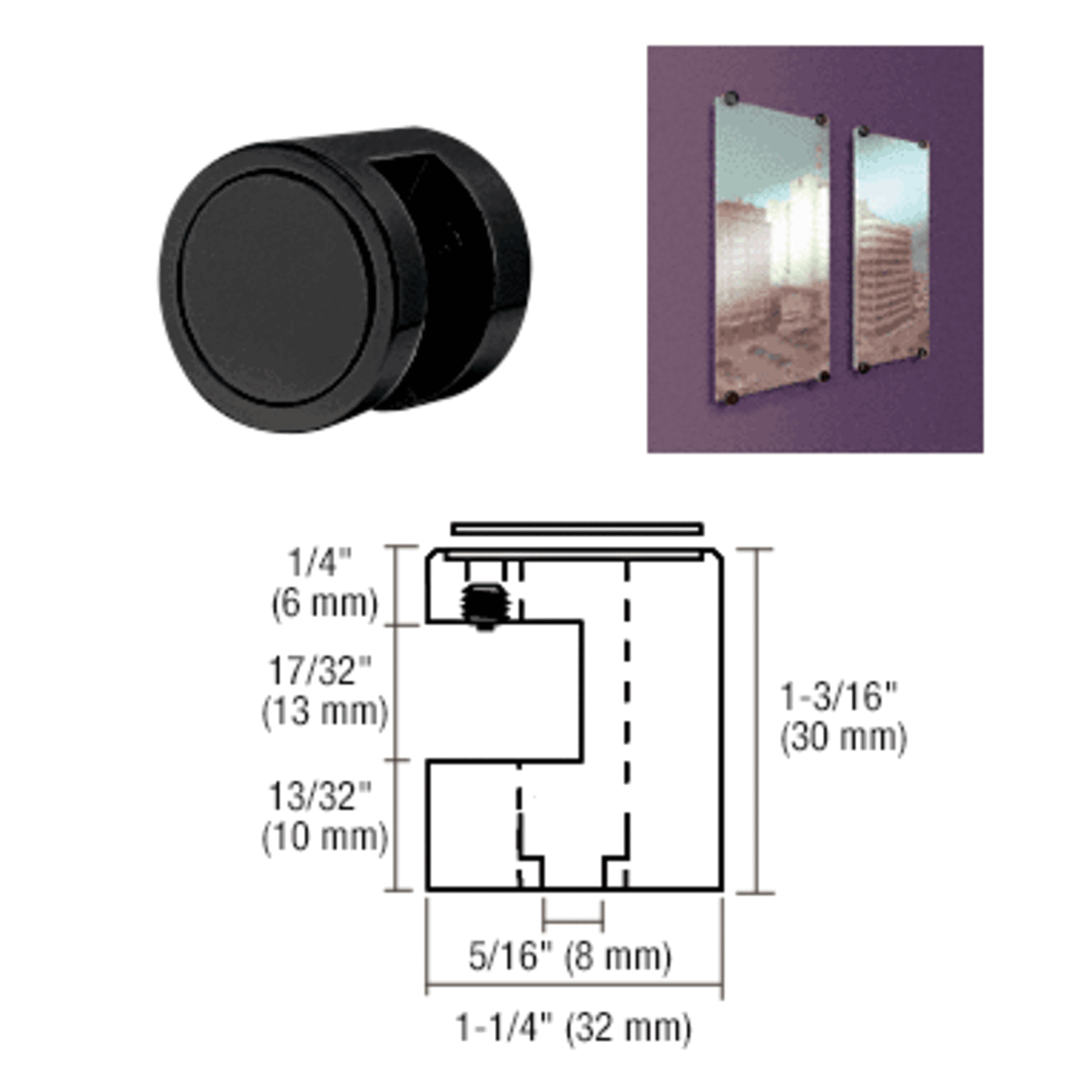

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement
Cover Disks are available if you need to repair or replace one.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (31.8 mm)
Finish/ Color:: Matte Black
Glazing Thickness: 1/2 in. (12 mm)
Height: 1-3/16 in. (30.2 mm)
Material: Stainless Steel
Shipping Limitations: None
