CRL EG38MBL Matte Black Edge Grip for 3/8" MaterialC.R. Laurence Matte Black Edge Grip for 3/8" Material offers a sleek and versatile solution for securing decorative panels and signage without the need for drilling into the glass or panel materials. Designed specifically for 3/8" (10 mm) thick materials, this edge grip provides a clean, modern aesthetic while ensuring reliable support. It can be effectively used on corners and edges, making it ideal for various installation scenarios. Each Edge Grip is supplied with an EGCS Socket Head Cap Screw, facilitating a straightforward installation process. With a diameter of 1-1/4" (32 mm) and a height of 1-1/8" (28.6 mm), it is constructed from durable stainless steel, ensuring longevity and resilience. For optimal support, it is recommended to utilize the edge grips at the top, bottom, and sides of heavier panels. Additional installation guidance includes the use of Cat. No. 12X112PHPSMS screws, which should be directly installed into wood blocking for enhanced stability. Replacement Cover Disks are also available for maintenance needs. C.R. Laurence's Edge Grip is the perfect choice for professionals seeking a reliable and visually appealing mounting solution in architectural applications.
Matte Black Edge Grip for 3/8" Material
- For 3/8" (10 mm) Material Thickness
- No Drilling Required in Glass or Panel Materials
- Can be Used on Corners and Edges of Panels
- Supplied with a EGCS Socket Head Cap Screw
CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2" Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

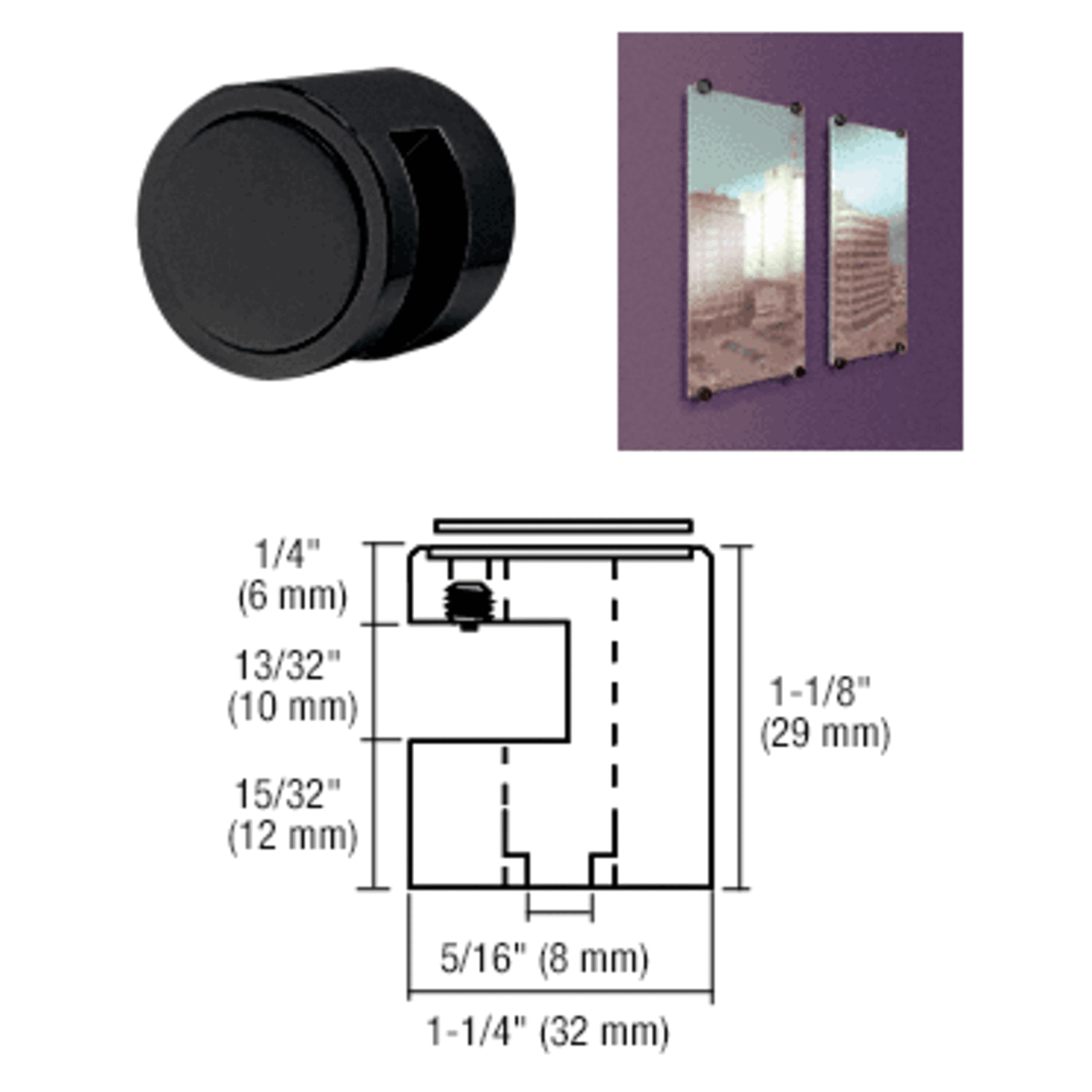

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement
Cover Disks are available if you need to repair or replace one.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (31.8 mm)
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in. (10 mm)
Height: 1-1/8 in. (28.6 mm)
Material: Stainless Steel
Shipping Limitations: None
