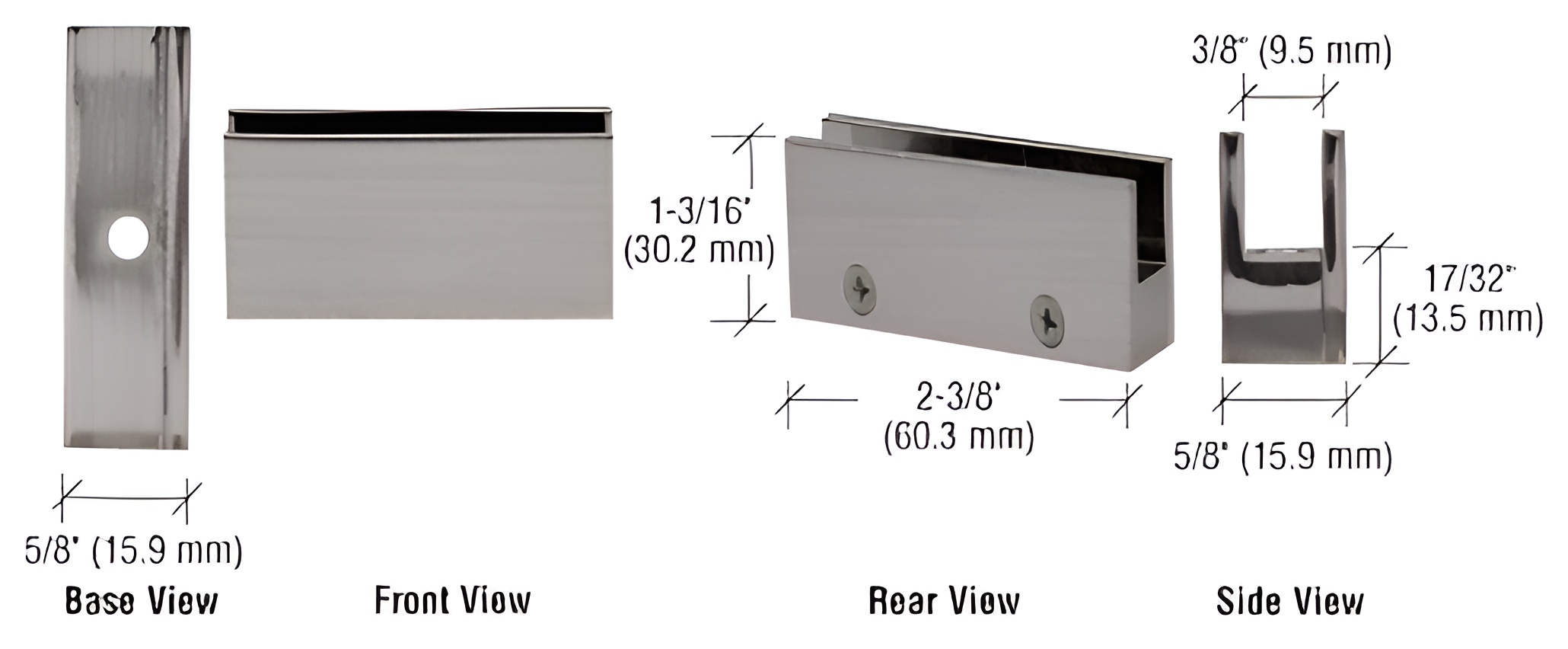

C.R. Laurence EH09 Brushed Nickel Face Plate Clamp for 1/4" to 5/16" Glass provides an elegant and functional solution for flush glazing or securely attaching shelves to walls. Crafted from durable brass and finished in brushed nickel, this clamp combines aesthetics with robust performance. Designed for glass thicknesses ranging from 1/4" (6 mm) to 5/16" (8 mm), the EH09 features a removable face plate that is easily secured with two screws, ensuring a snug fit for your glass installations. For optimal use with 1/4" glass, it is recommended to pair this clamp with Cat. No. 820 Tuff-Pak Tape, enhancing both security and stability. The clamp measures 2-3/8 inches in length, 5/8 inch in width, and stands at a height of 1-3/16 inches, making it an unobtrusive yet reliable choice for various applications. With no holes needed for drilling, installation is straightforward and efficient, allowing you to complete your projects with ease. For maintenance, replacement screws can be obtained with CRL P612 Replacement Screws. Whether you are a building professional or a knowledgeable homeowner, the EH09 Face Plate Clamp is a smart addition to your glazing toolkit.
Brushed Nickel Face Plate Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1-3/16 in. (30.2 mm)
Length: 2-3/8 in. (60.3 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
