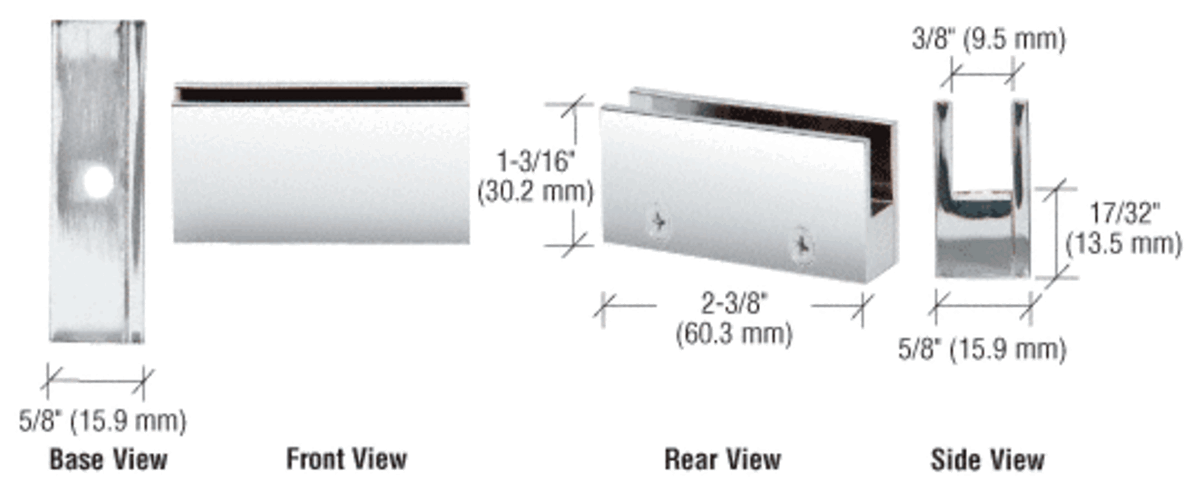

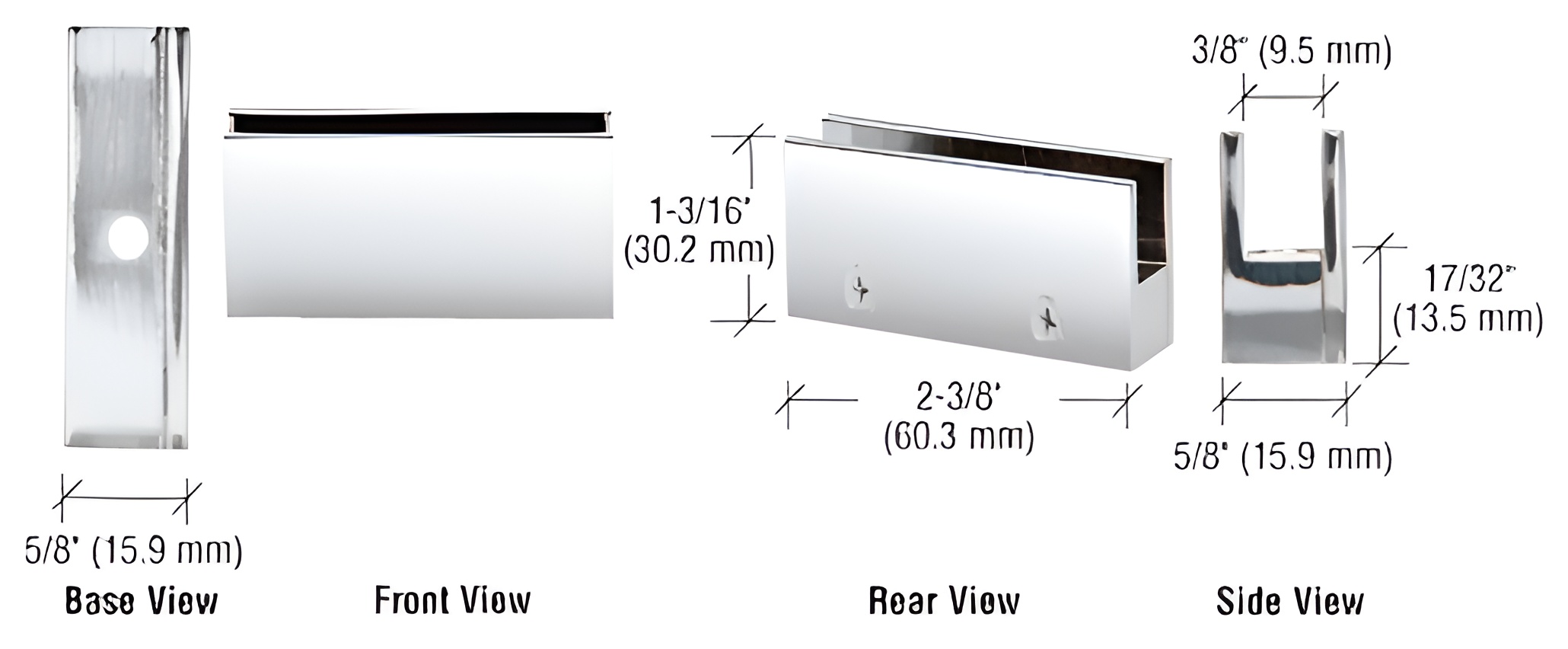

C.R. Laurence EH10 Chrome Face Plate Clamp for 1/4" to 5/16" Glass offers an elegant solution for flush glazing or securely attaching shelves to walls. This low-profile clamp is designed with a removable face plate, which is fastened using two screws, ensuring easy installation and maintenance. Suitable for glass thicknesses ranging from 1/4" (6 mm) to 5/16" (8 mm), this clamp is versatile for various applications. For installations involving 1/4" glass, we recommend using Cat. No. 820 Tuff-Pak Tape to achieve optimal results. The EH10 clamp eliminates the need for drilling, allowing for a clean and efficient setup without compromising the integrity of your surfaces. Made from durable brass with a polished chrome finish, this clamp not only provides strength and stability but also adds a touch of sophistication to any space. With dimensions of 2-3/8 inches in length, 5/8 inch in width, and a height of 1-3/16 inches, the EH10 clamp integrates seamlessly into your design. Replacement hardware is available through CRL P612 screws, ensuring you have everything needed for installation. Choose the C.R. Laurence EH10 for reliable performance and an aesthetically pleasing finish in your architectural projects.
Chrome Face Plate Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1-3/16 in. (30.2 mm)
Length: 2-3/8 in. (60.3 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
