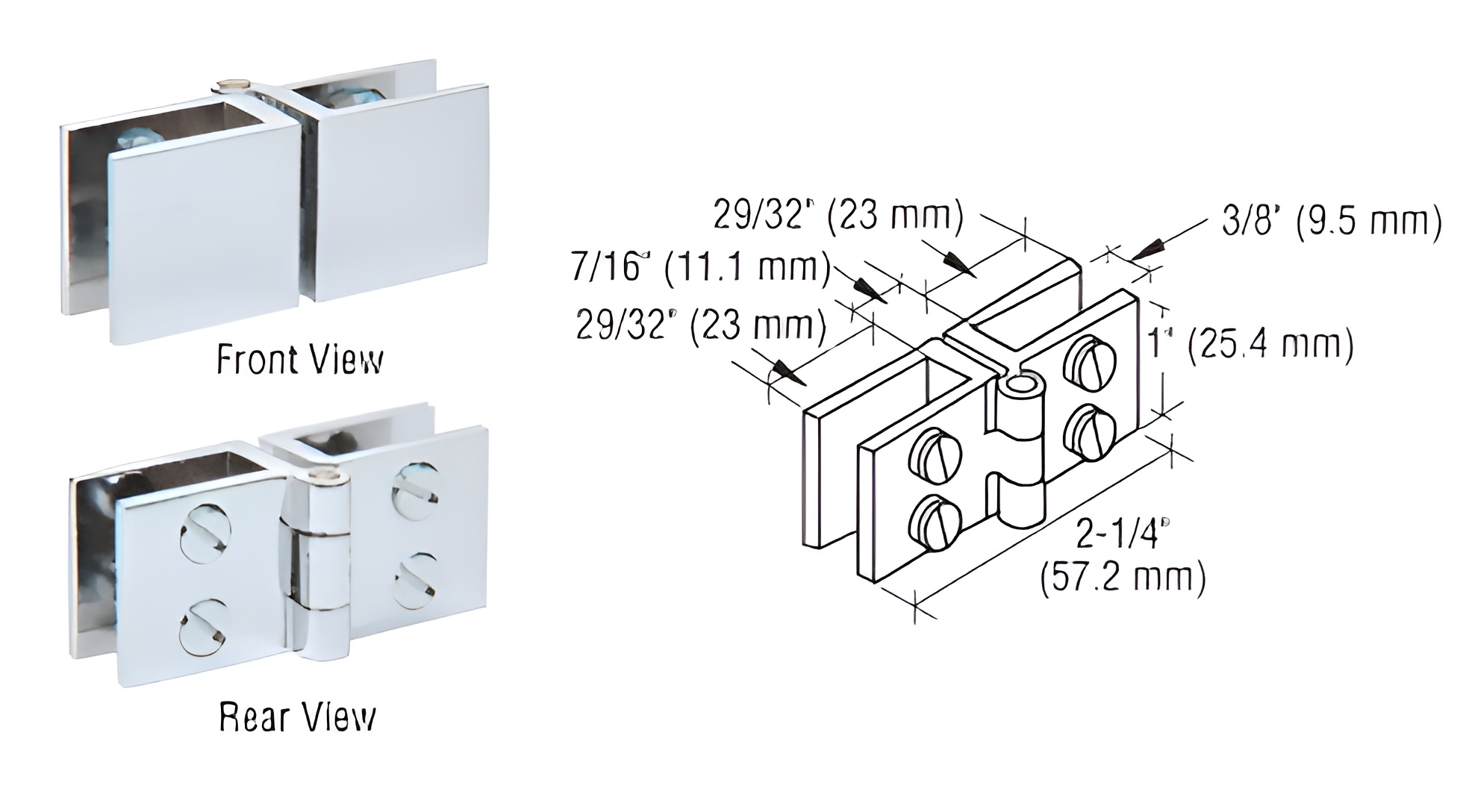

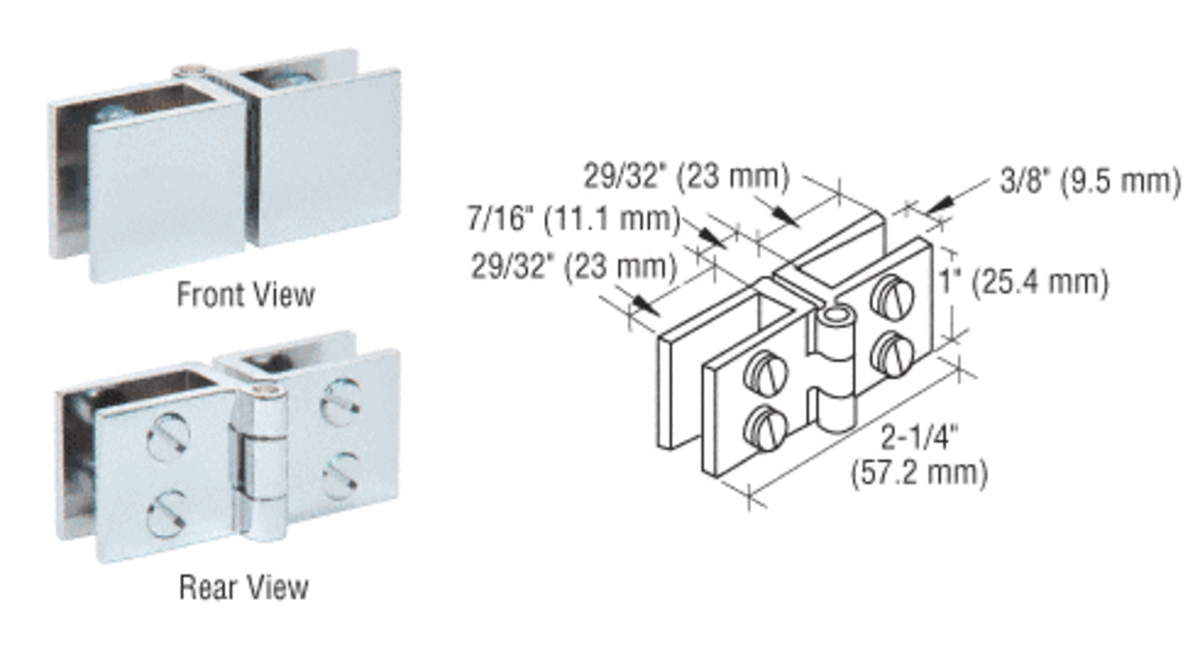

C.R. Laurence EH164 Chrome Wide Face Glass-to-Glass In-Swing Set Screw Hinge offers an innovative solution for securely mounting glass in showcase and stereo cabinets. Designed for glass thicknesses ranging from 1/4" to 5/16" (6 mm to 8 mm), this hinge eliminates the need for holes or cut-outs, ensuring a clean and unobtrusive installation. The plastic-tipped set screws provide a no-drill attachment that simplifies the setup process while protecting the glass surface. With a maximum door width of 16" (406 mm) and a weight capacity of 8 lbs. (3.6 kg), the EH164 hinge is ideal for lightweight applications, allowing seamless operation in a 180-degree plane. The polished chrome finish not only enhances aesthetic appeal but also ensures durability, making it suitable for both residential and commercial environments. Each pack contains two hinges, making it convenient for completing installations. The hinge stands at a height of 1" (25.4 mm) and opens to a width of 2-1/4" (57.2 mm), allowing for smooth functionality. When looking for reliable glass hardware, the C.R. Laurence EH164 hinge stands out as a versatile choice that combines style, strength, and ease of use.
Chrome Wide Face Glass-to-Glass In-Swing Set Screw Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1 in. (25.4 mm)
Material: Brass
Maximum Door Width: 16 in. (406.4 mm)
Open Width: 2-1/4 in. (57.2 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 8 lbs. (3.6 kg)
