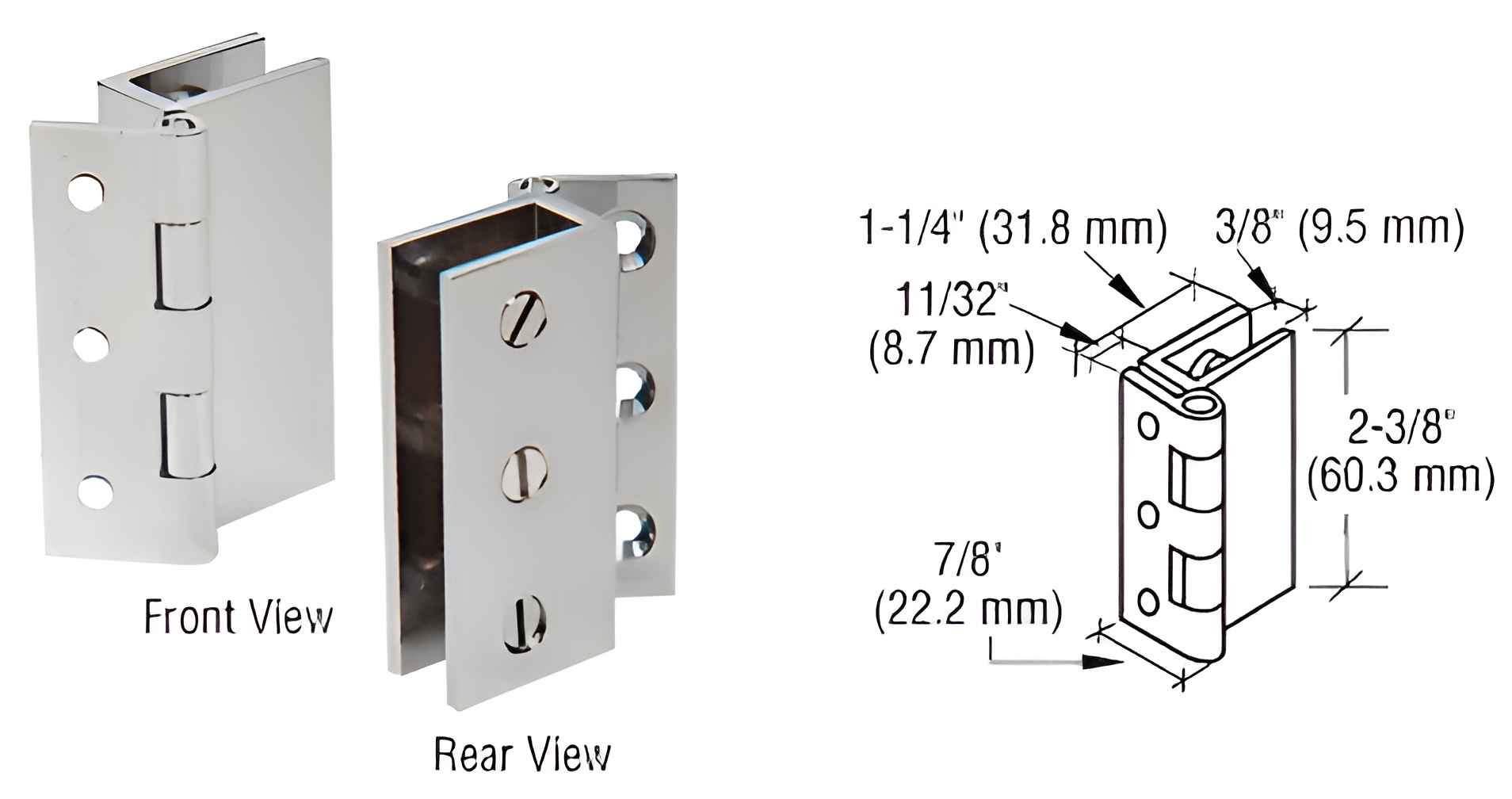

C.R. Laurence EH169 Brushed Nickel Large Wall Mount Set Screw Hinge offers unparalleled flexibility for your glass installations. Designed to accommodate 3/16" to 5/16" (5 mm to 8 mm) tempered glass, this hinge not only enhances the aesthetic appeal of your space but also ensures smooth operation with a robust construction. The maximum recommended door width is 18" (457 mm), and each hinge supports a weight capacity of up to 20 lbs. (9 kg), making it ideal for a variety of applications. The set screw design allows for no-drill attachment, securing the glass with three plastic-tipped set screws for a clean and seamless installation. Each package contains two hinges, complete with matching finish wood screws, ensuring you have everything needed for an effective setup. Crafted from durable brass and finished in brushed nickel, these hinges add a modern touch to any environment. With a height of 2-3/8" (60.3 mm) and a width of 1-1/4" (31.8 mm), they blend functionality with style. Elevate your glass door or panel project with the C.R. Laurence EH169 hinges, designed for both building professionals and discerning homeowners seeking quality and reliability.
Brushed Nickel Large Wall Mount Set Screw Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 3/16 in. To 5/16 in. (5 mm To 8 mm)
Height: 2-3/8 in. (60.3 mm)
Material: Brass
Maximum Door Width: 18 in. (457.2 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 20 lbs. (9.1 kg)
Width: 1-1/4 in. (31.8 mm)
