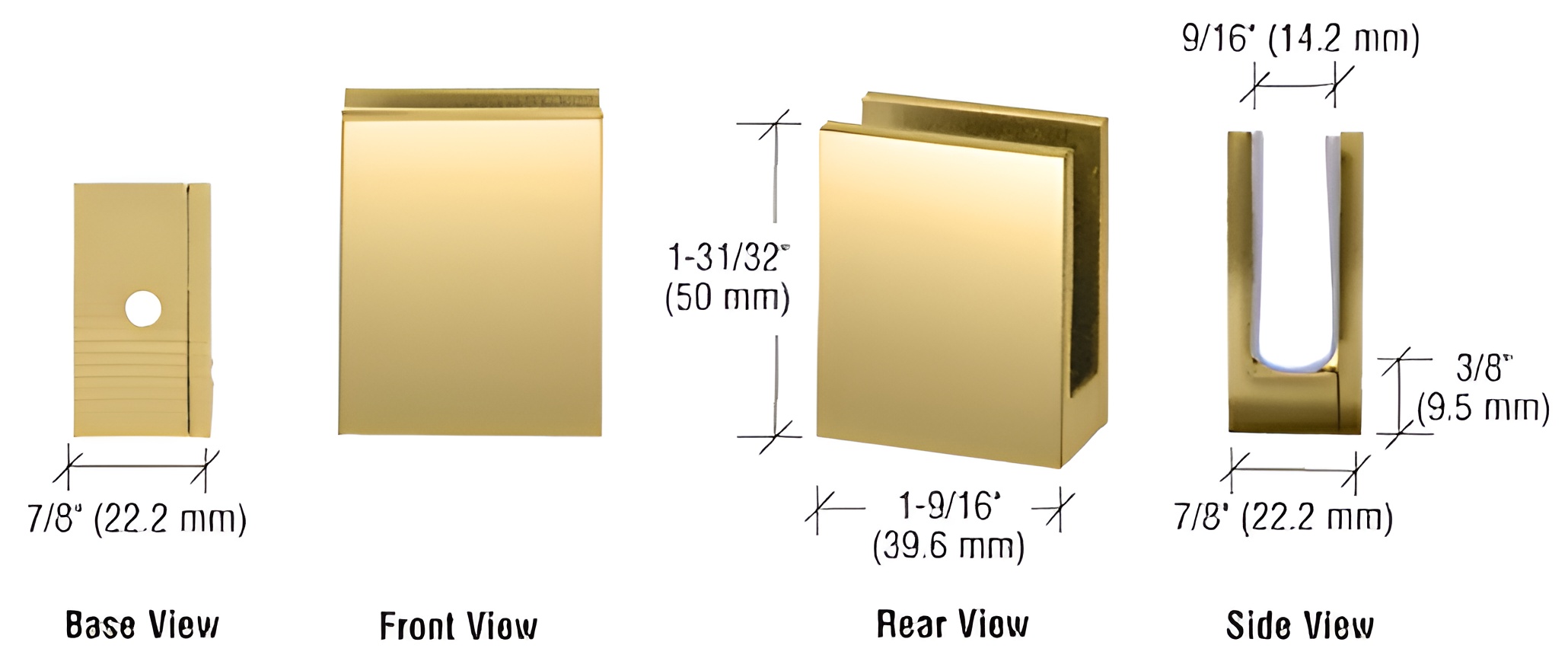

C.R. Laurence EH17 Brass Face Plate Clamp for 3/8" to 1/2" Glass is a versatile solution for various glass mounting challenges. Ideal for flush glazing or securely attaching shelves to walls, this clamp features a removable face plate that is fastened with two screws, allowing for easy installation and adjustments. Designed to accommodate glass thicknesses ranging from 3/8" (10 mm) to 1/2" (12 mm), it comes equipped with a gasket for 1/2" glass applications. For those using 3/8" glass, we recommend pairing the clamp with CRL Cat. No. 820 Tuff-Pak Tape for optimal performance. Measuring 1-31/32" (50 mm) in height, 1-9/16" (39.7 mm) in length, and 7/8" (22.2 mm) in width, this polished brass clamp not only delivers on functionality but also adds an elegant touch to any installation. While the brass finish is durable, it is important to note that brass can tarnish due to oxidation, which may affect its appearance over time. This clamp is sold individually and is not suitable for glass railing applications. For maintenance, replacement screws can be found with CRL P612. Enjoy the reliability and aesthetic appeal of the C.R. Laurence EH17 Brass Face Plate Clamp in your next project.
Brass Face Plate Clamp for 3/8" to 1/2" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 To 1/2 in. (10 mm To 12 mm)
Height: 1-31/32 in. (50 mm)
Length: 1-9/16 in. (39.7 mm)
Material: Brass
Shipping Limitations: None
Width: 7/8 in. (22.2 mm)
