CRL EH173 Brushed Nickel 1" Wall Mount Set Screw Hinge

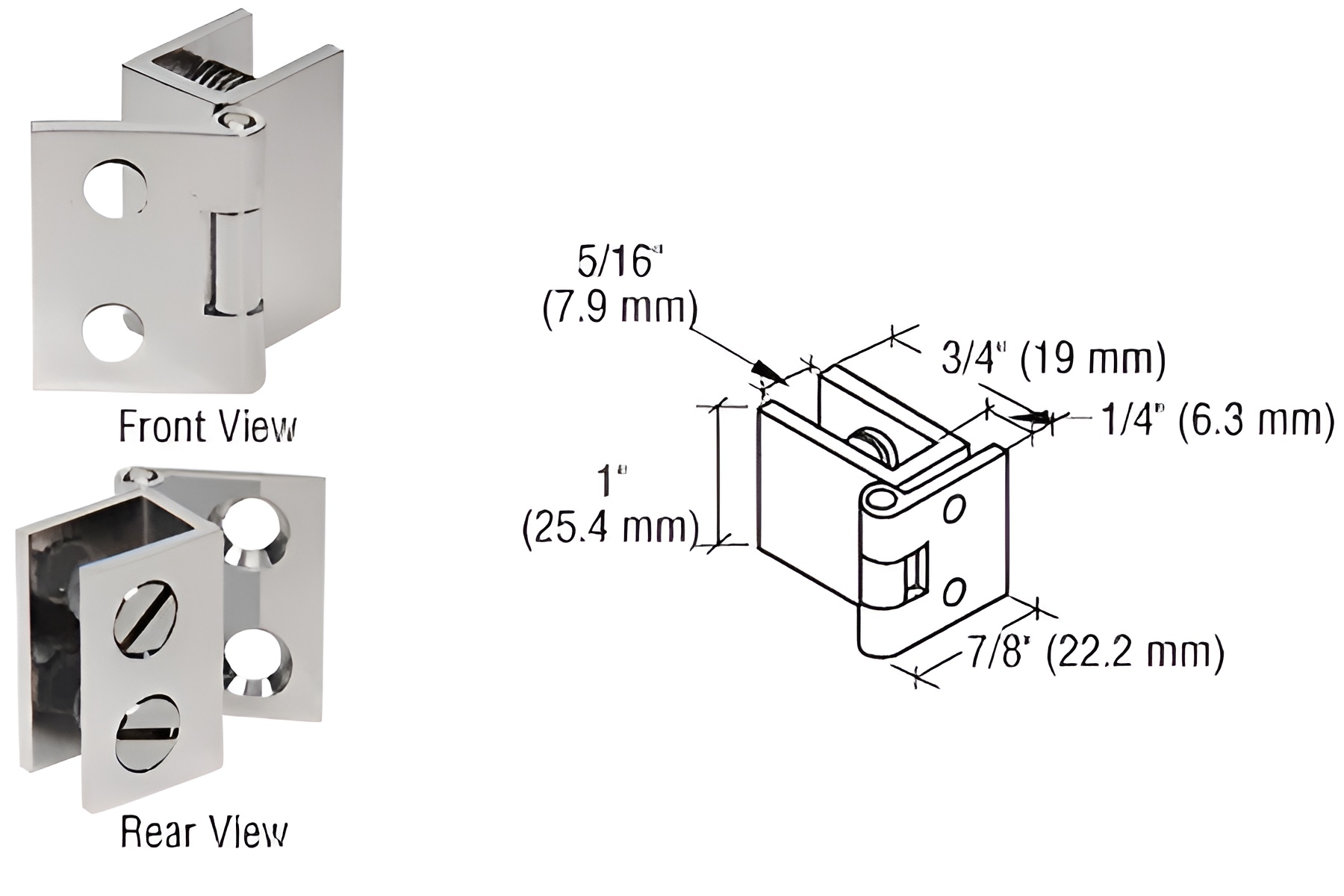

C.R. Laurence EH173 Brushed Nickel 1" Wall Mount Set Screw Hinge offers a sleek and efficient solution for glass-to-wall installations, perfect for showcase and stereo cabinets. Designed for use with 3/16" and 1/4" (5 mm to 6 mm) monolithic tempered glass, this hinge requires no holes or cut-outs, ensuring a clean and professional look. The innovative plastic-tipped set screws allow for a secure attachment without drilling, making installation straightforward and hassle-free. With a maximum door width of 16" (406 mm) and a weight capacity of up to 8 lbs. (3.6 kg), this hinge is versatile enough for various applications while maintaining durability. The brushed nickel finish not only enhances the aesthetic appeal but also offers a modern touch to your cabinetry. Each pack contains two hinges along with matching finish wood screws for a seamless installation. Measuring 1" (25.4 mm) in height and 3/4" (19.1 mm) in width, the EH173 hinge combines both form and function. Ideal for building professionals and discerning homeowners, this product exemplifies C.R. Laurence's commitment to quality and innovation in architectural hardware. Experience the ease of installation and elegant design with the CRL EH173 hinge.

Brushed Nickel 1" Wall Mount Set Screw Hinge

• For 3/16" and 1/4" (5 and 6 mm) Glass
• No Holes or Cut-Outs Required
• Use Monolithic Tempered Glass

Resources

• EH173 Detailed CAD Drawings.dwg
• EH173 Detailed CAD Drawings.pdf
• Product Drawings EH173.dwg
• Product Drawings EH173.pdf
