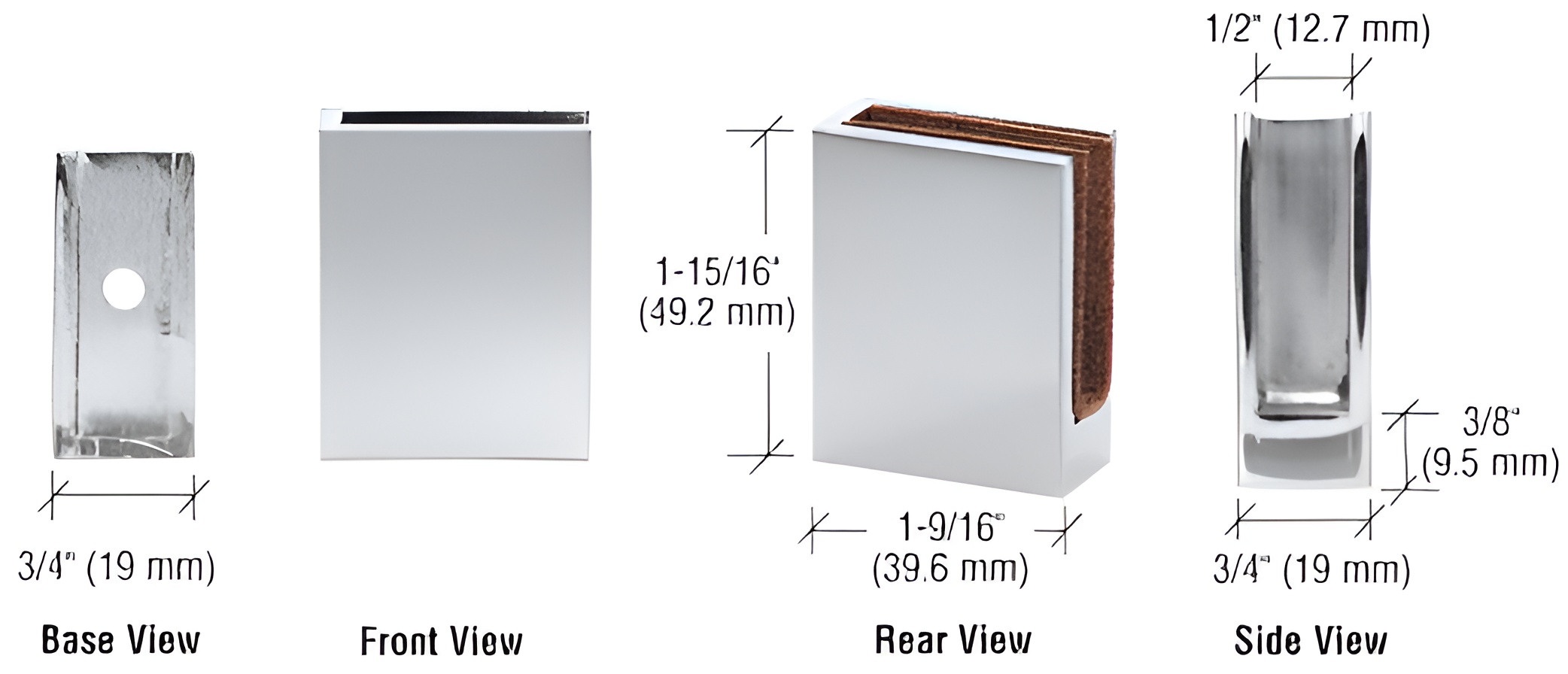

C.R. Laurence EH18 Chrome Fixed Plate Corner Clamp for 1/4" to 3/8" Glass is the perfect solution for securely holding glass in place at the edges of partitions. Designed for use with glass thicknesses ranging from 1/4" (6 mm) to 3/8" (10 mm), this clamp is crafted from durable brass and finished in a polished chrome that enhances any aesthetic. The clamp features a sleek design with no face plates or set screws, ensuring a clean, unobtrusive look while securing glass with packing. Ideal for both commercial and residential applications, this corner clamp is particularly suited for situations where a finished appearance is essential, such as glass shelves viewed from the front. For installation, a gasket is provided for 3/8" glass, while CRL Cat. No. 820 Tuff-Pak Tape is recommended for 1/4" glass, eliminating the need for drilling holes. With dimensions measuring 1-15/16 in. in height, 1-9/16 in. in length, and 3/4 in. in width, the EH18 clamp combines functionality with an elegant design. Enjoy reliable performance and a polished finish with C.R. Laurence’s Fixed Plate Corner Clamp, a valuable addition to your glazing toolkit.
Chrome Fixed Plate Corner Clamp for 1/4" to 3/8" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 3/8 in. (6 mm To 10 mm)
Height: 1-15/16 in. (49.2 mm)
Length: 1-9/16 in. (39.7 mm)
Material: Brass
Shipping Limitations: None
Width: 3/4 in. (19.1 mm)
