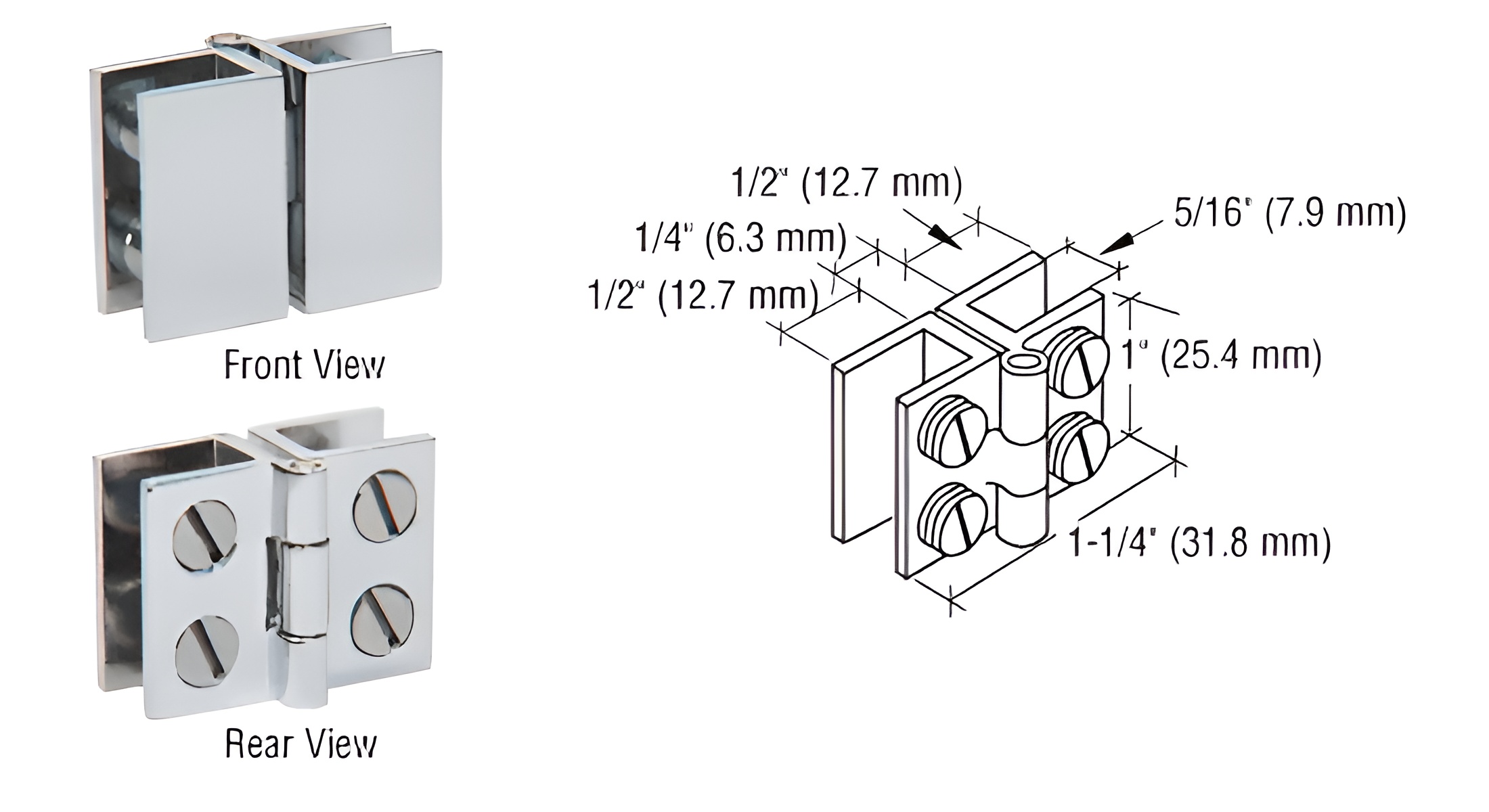

C.R. Laurence EH180 Chrome Mini Glass-to-Glass Set Screw Inswing Hinge offers a sleek and practical solution for glass-to-glass applications, particularly in showcase and stereo cabinets where glass panels meet in a 180-degree plane. Designed for 3/16" and 1/4" (5 mm to 6 mm) thick monolithic tempered glass, these hinges provide a no-drill attachment method, securing the glass with plastic-tipped set screws for a clean installation without the need for holes or cut-outs. With a polished chrome finish, the EH180 hinge not only enhances the aesthetic appeal of your project but also ensures durability and reliability, crafted from high-quality brass. Each hinge is capable of supporting a maximum door width of 16 inches (406 mm) and a weight limit of 8 lbs. (3.6 kg), making it ideal for lightweight glass panels. Sold in packs of two, these hinges are an excellent choice for professionals seeking efficiency and elegance in their designs. The hinge features a compact height of 1 inch (25.4 mm) and an open width of 1-1/4 inches (31.8 mm), ensuring seamless functionality in your installations. Elevate your glass applications with C.R. Laurence’s innovative hinge solutions.
Chrome Mini Glass-to-Glass Set Screw Inswing Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 3/16 in. To 1/4 in. (5 mm To 6 mm)
Height: 1 in. (25.4 mm)
Material: Brass
Maximum Door Width: 16 in. (406.4 mm)
Open Width: 1-1/4 in. (31.8 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 8 lbs. (3.6 kg)
