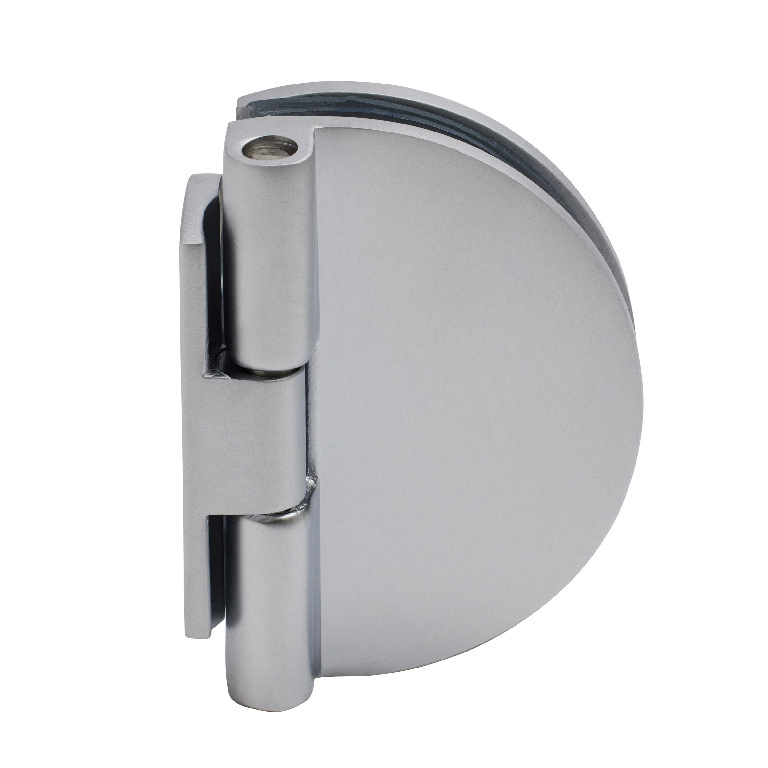

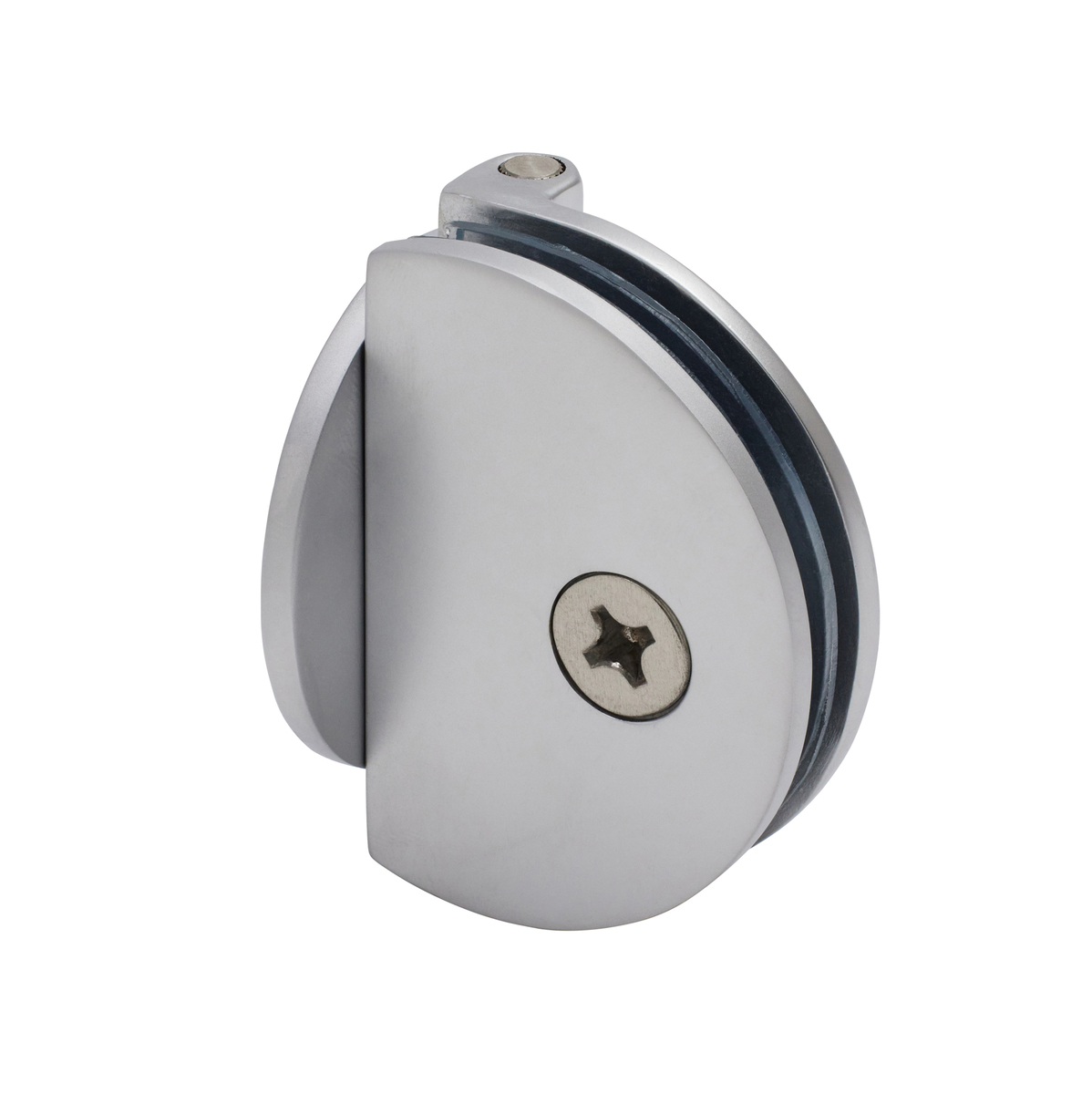

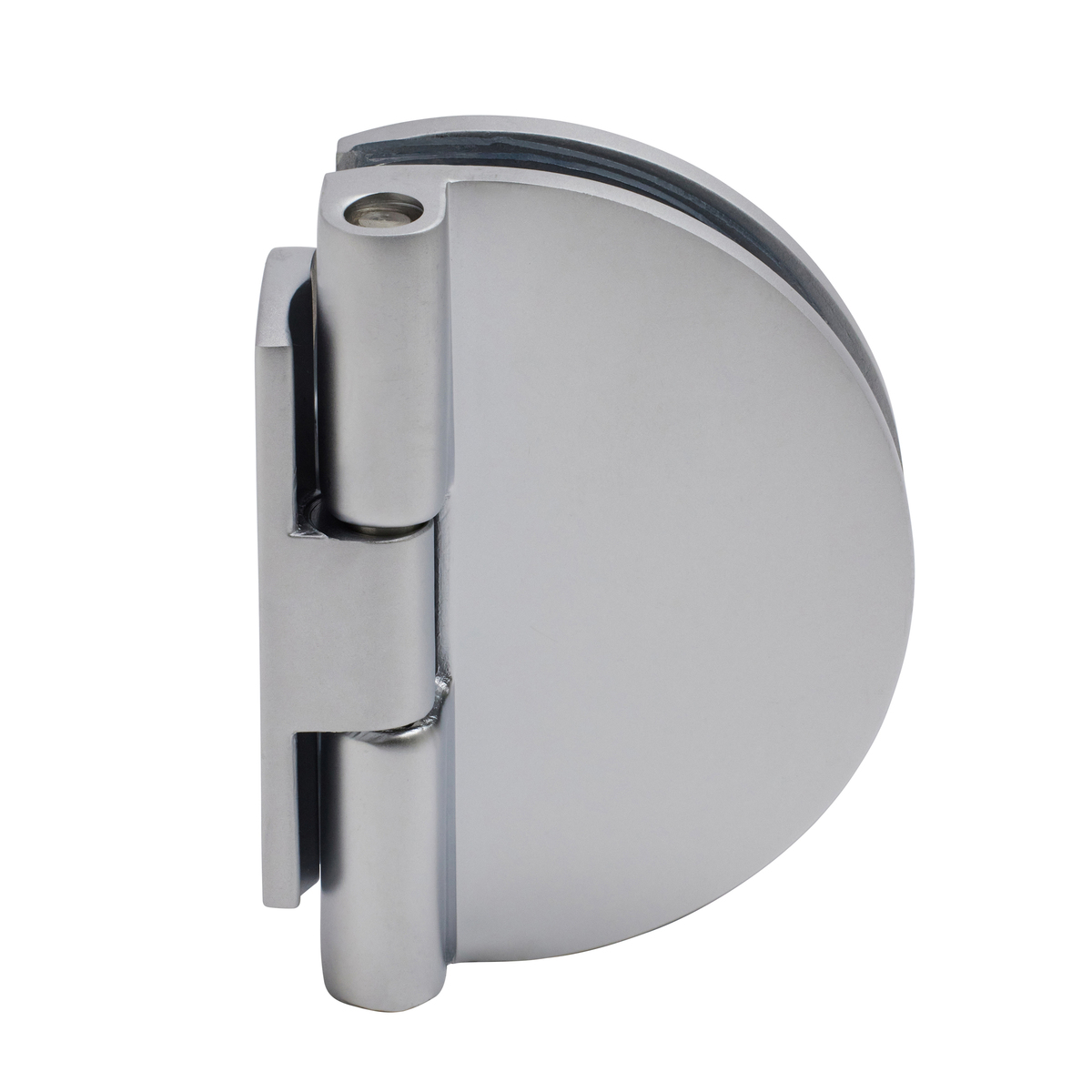

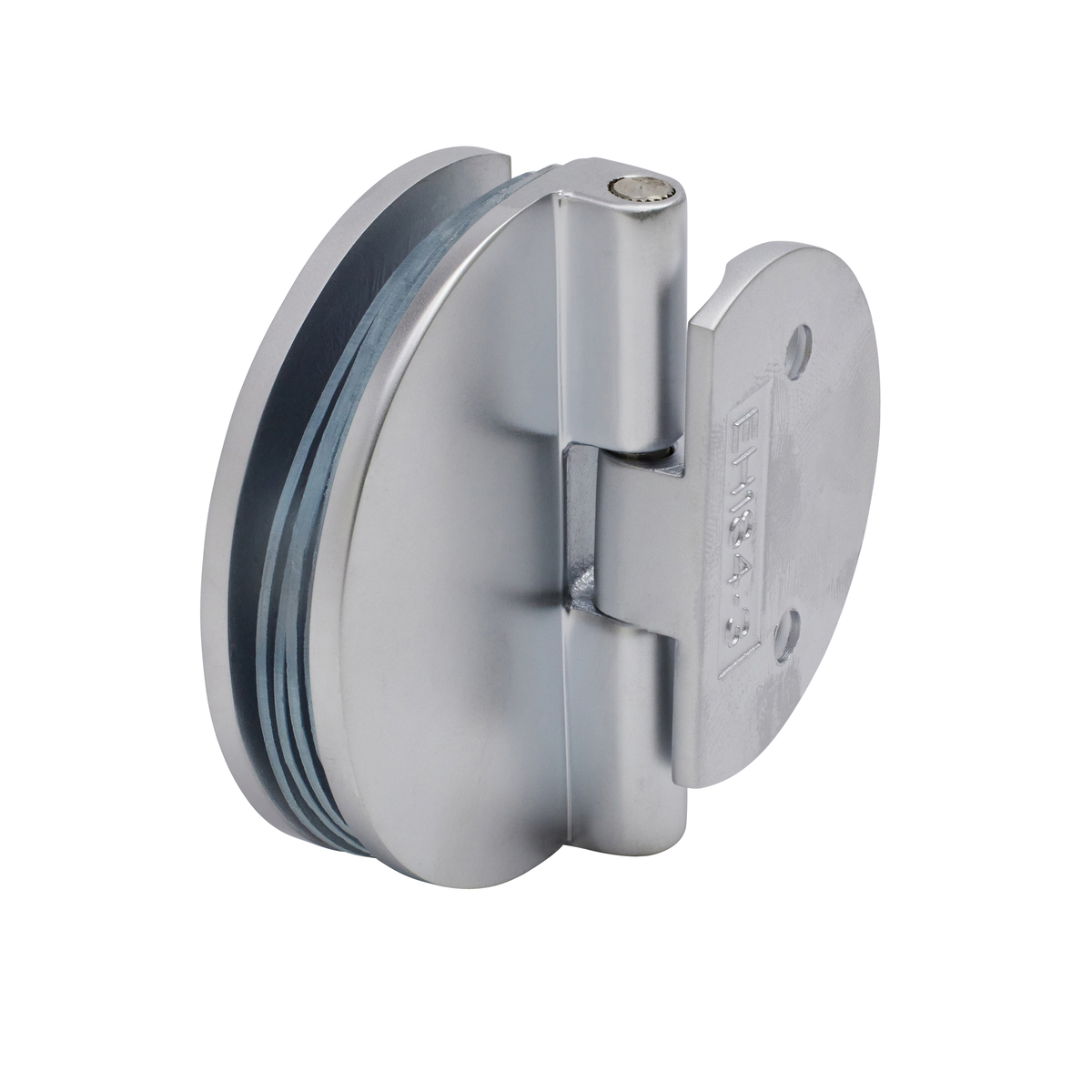

CRL EH185 Satin Chrome Half Round Light Duty Frameless Shower Door Hinge

C.R. Laurence EH185 Satin Chrome Half Round Light Duty Frameless Shower Door Hinge is expertly designed for both functionality and aesthetic appeal. Constructed from durable brass, this hinge is suitable for 1/4" to 5/16" (6 to 8 mm) glass, making it an ideal choice for frameless shower door installations. Each package contains two hinges, requiring a 1/2" (12 mm) diameter hole for easy installation. With a maximum recommended door width of 24" (610 mm) and a weight capacity of 50 lbs. (23 kg) for two hinges, this product delivers reliable support for your shower door. If you opt for three hinges, the weight capacity increases to 75 lbs. (34 kg), providing flexibility for larger setups. The satin chrome finish offers a sleek and modern look, enhancing the overall design of your bathroom. Please note that these hinges are specifically intended for residential or hotel shower use; any alternative applications must receive approval from the CRL Shower Door Technical Sales Department. With a three-year warranty, you can trust in the quality and durability of the C.R. Laurence EH185 hinge, ensuring a secure and stylish installation for years to come.

Satin Chrome Half Round Light Duty Frameless Shower Door Hinge

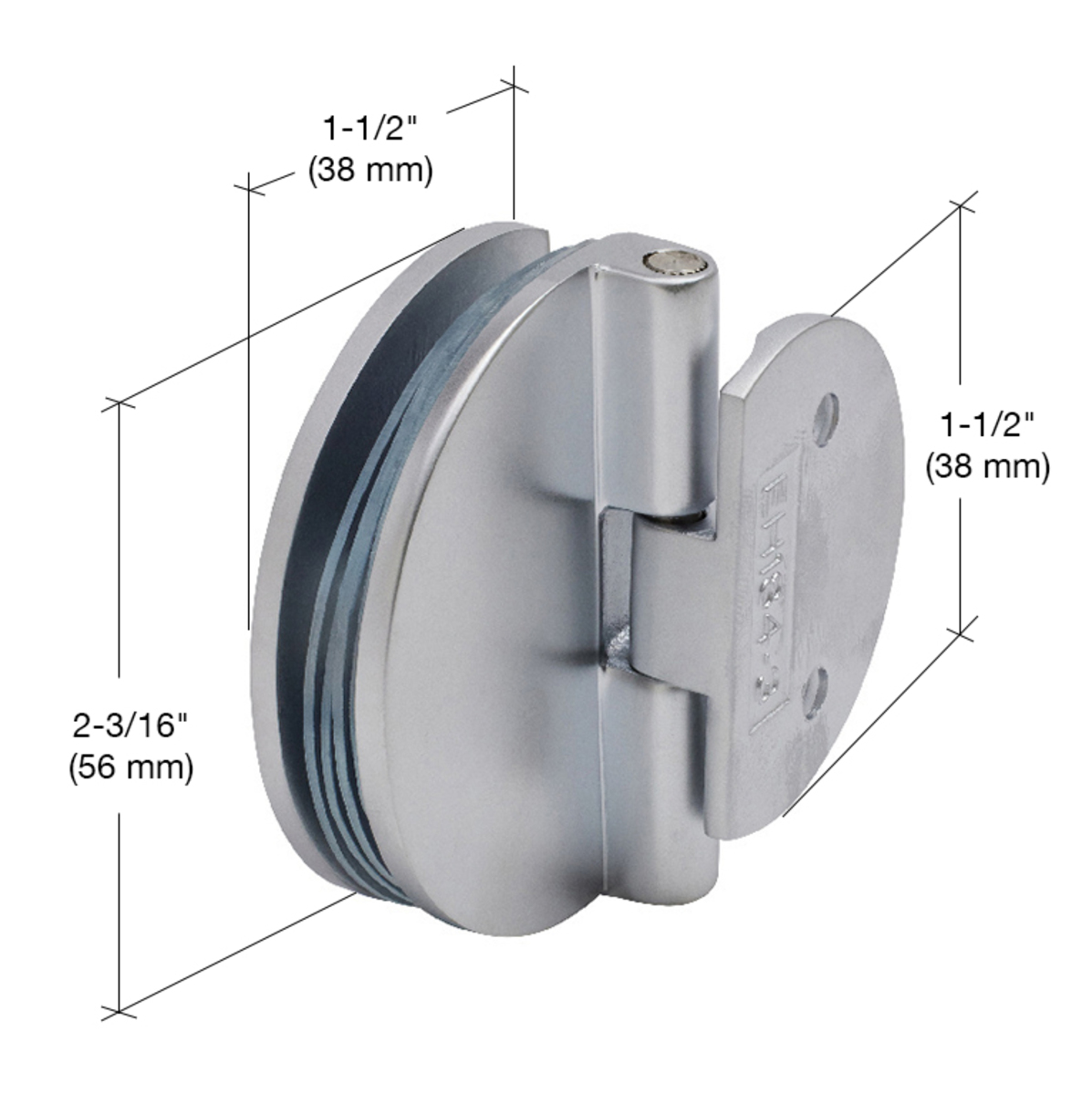

• For 1/4" to 5/16" (6 to 8 mm) Glass
• One 1/2" (12 mm) Hole Required
• Two Per Package
• Three Year Warranty
• Use Monolithic Tempered Glass

Resources

• EH184 EH185 Template
• EH185 Detailed CAD Drawings.dwg
• EH185 Detailed CAD Drawings.pdf
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
