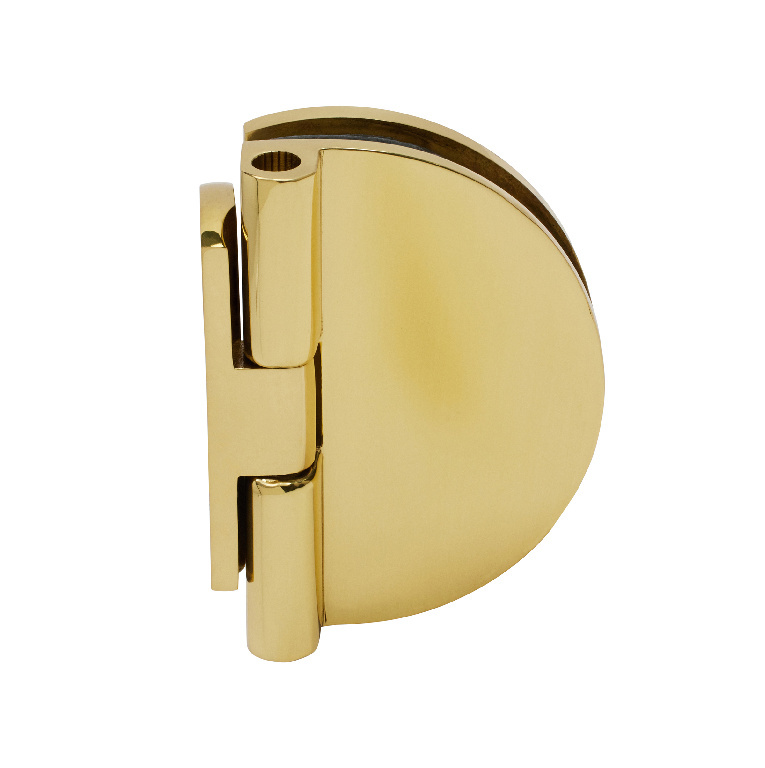

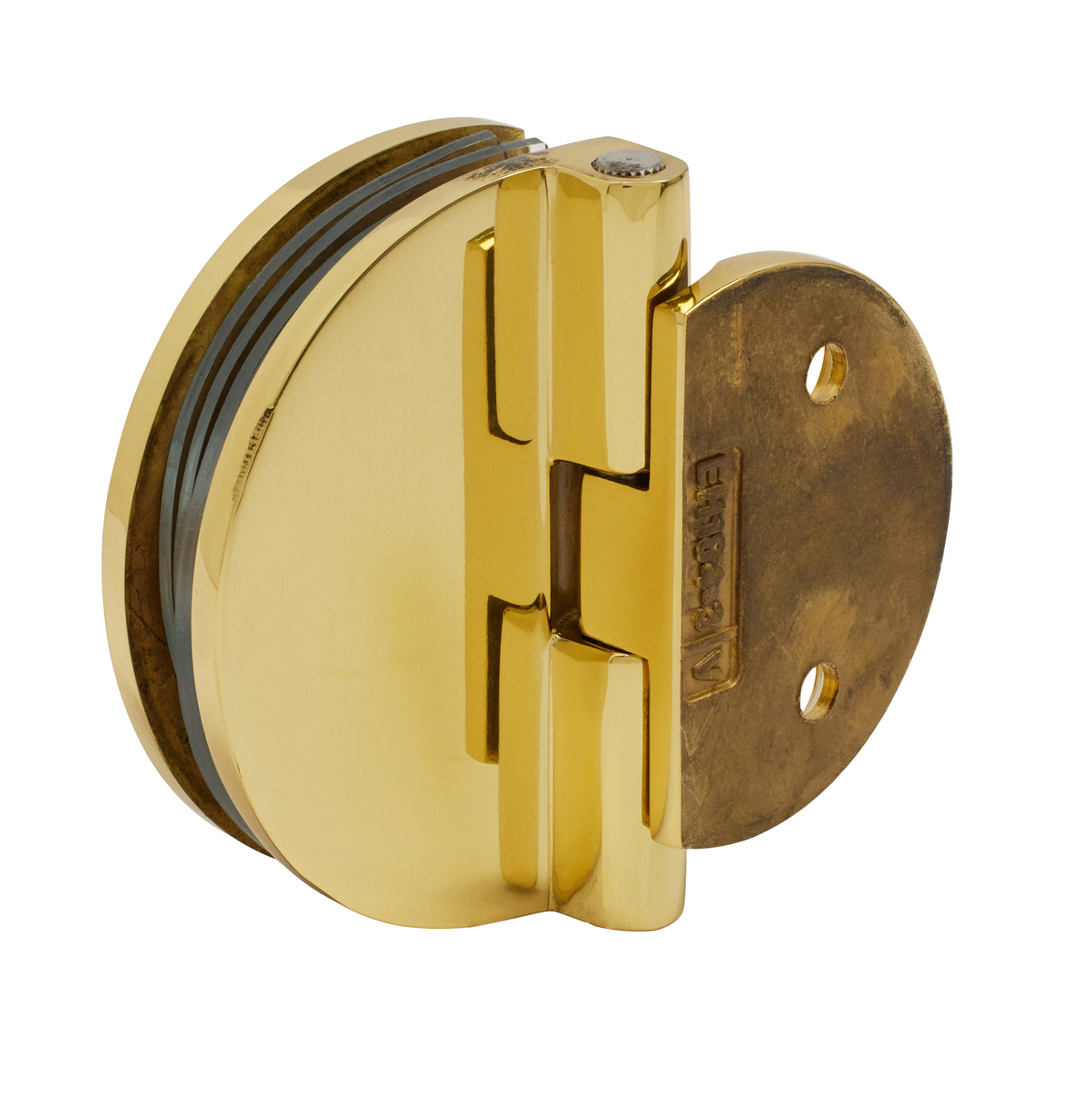

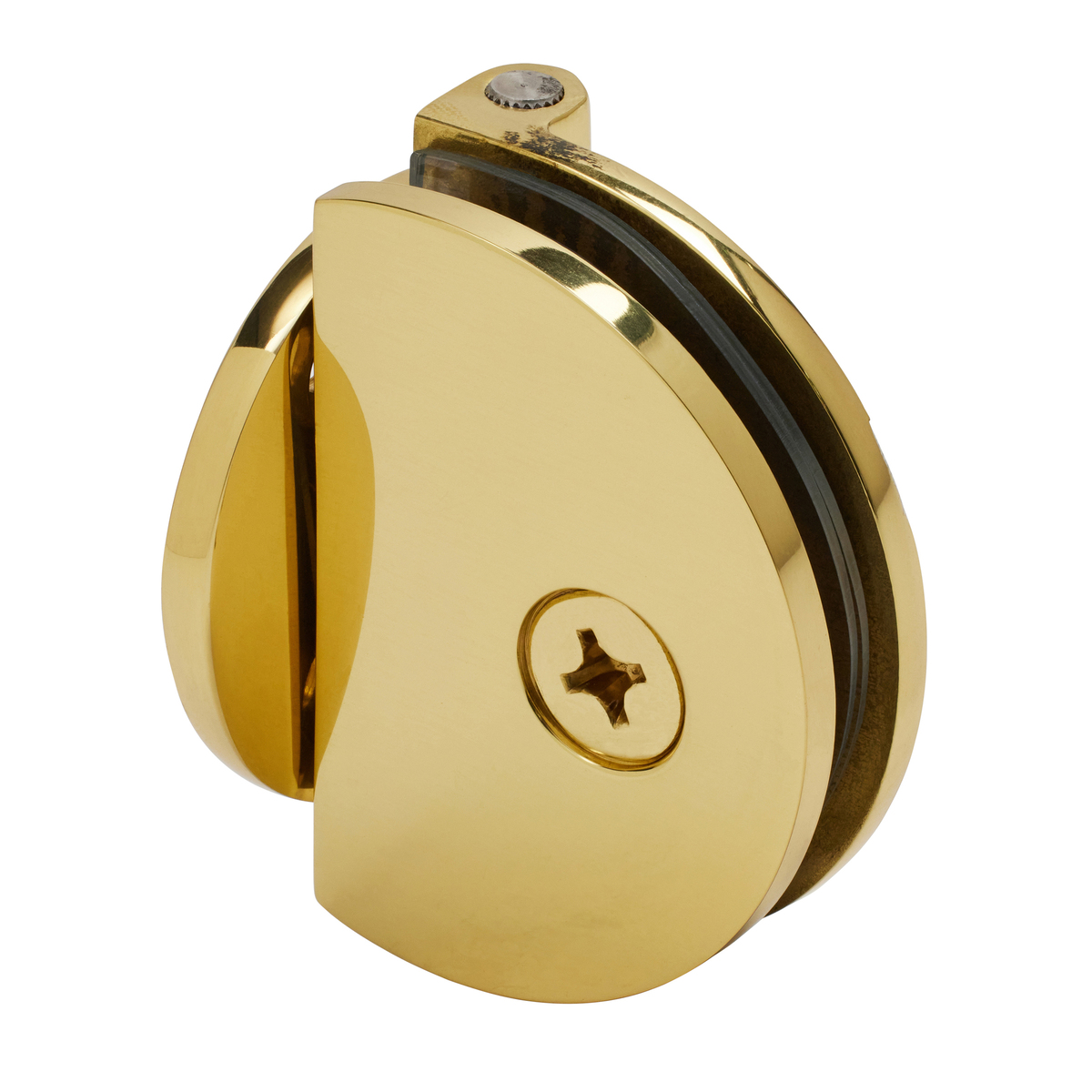

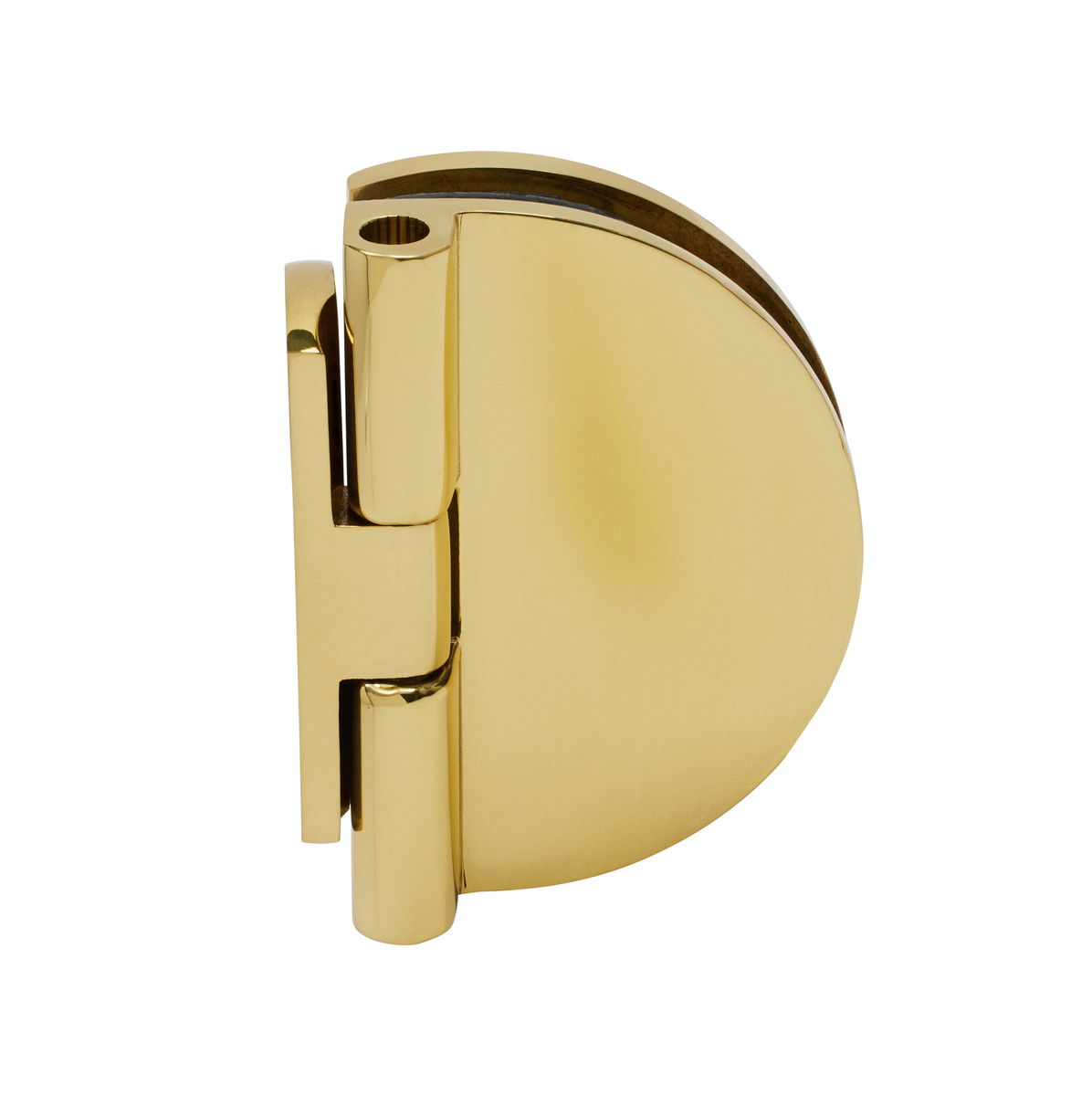

CRL EH186 Polished Brass Half Round Light Duty Shower Door Hinge

Your Price: $55.37

Retail Price:$66.28

Your Savings:$10.91(16%)

CRL EH186 Polished Brass Half Round Hinges for frameless shower doors, supporting 1/4" to 5/16" glass with a sleek design.

Part Number : CRL_EH186

Availability: 57 In Stock

Quantity

Description

CRL EH186 Polished Brass Half Round Light Duty Shower Door Hinge

C.R. Laurence EH186 Polished Brass Half Round Light Duty Frameless Shower Door Hinge offers a stylish and functional solution for your shower door installations. Designed for use with 1/4" to 5/16" (6 to 8 mm) monolithic tempered glass, this hinge ensures a secure and reliable connection for your frameless shower doors. Installation requires a 1/2" (12 mm) hole, making it straightforward to fit into your existing setup. Capable of supporting doors with a maximum width of 24" (610 mm) and a weight limit of 50 lbs. (23 kg) per two hinges, the EH186 is ideal for both residential and hotel shower applications. Each package includes two hinges and is backed by a three-year warranty, providing peace of mind with your purchase. The polished brass finish adds a touch of elegance, complementing various bathroom decors. However, it is essential to note that brass can be prone to oxidation, potentially leading to a tarnished appearance over time. For optimal performance, always use the provided installation template, as dimensions may differ from other brands. Choose the C.R. Laurence EH186 Half Round Hinge for a perfect blend of style, durability, and functionality in your shower door projects.

Polished Brass Half Round Light Duty Frameless Shower Door Hinge

For 1/4" to 5/16" (6 to 8 mm) Glass
One 1/2" (12 mm) Hole Required
Two Per Package
Three Year Warranty
Use Monolithic Tempered Glass

These CRL Half Round Hinges are an excellent choice in many showcase applications. Requires 1/2" (12 mm) diameter hole for installation. The maximum recommended width is 24" (610 mm) and maximum weight should not exceed 50 lbs. (23 kg).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

5 Degree Pre- Set: No

Adjustable: No

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Polished Brass

Glazing Thickness: 1/4 in. To 5/16 in. (6 mm To 8 mm)

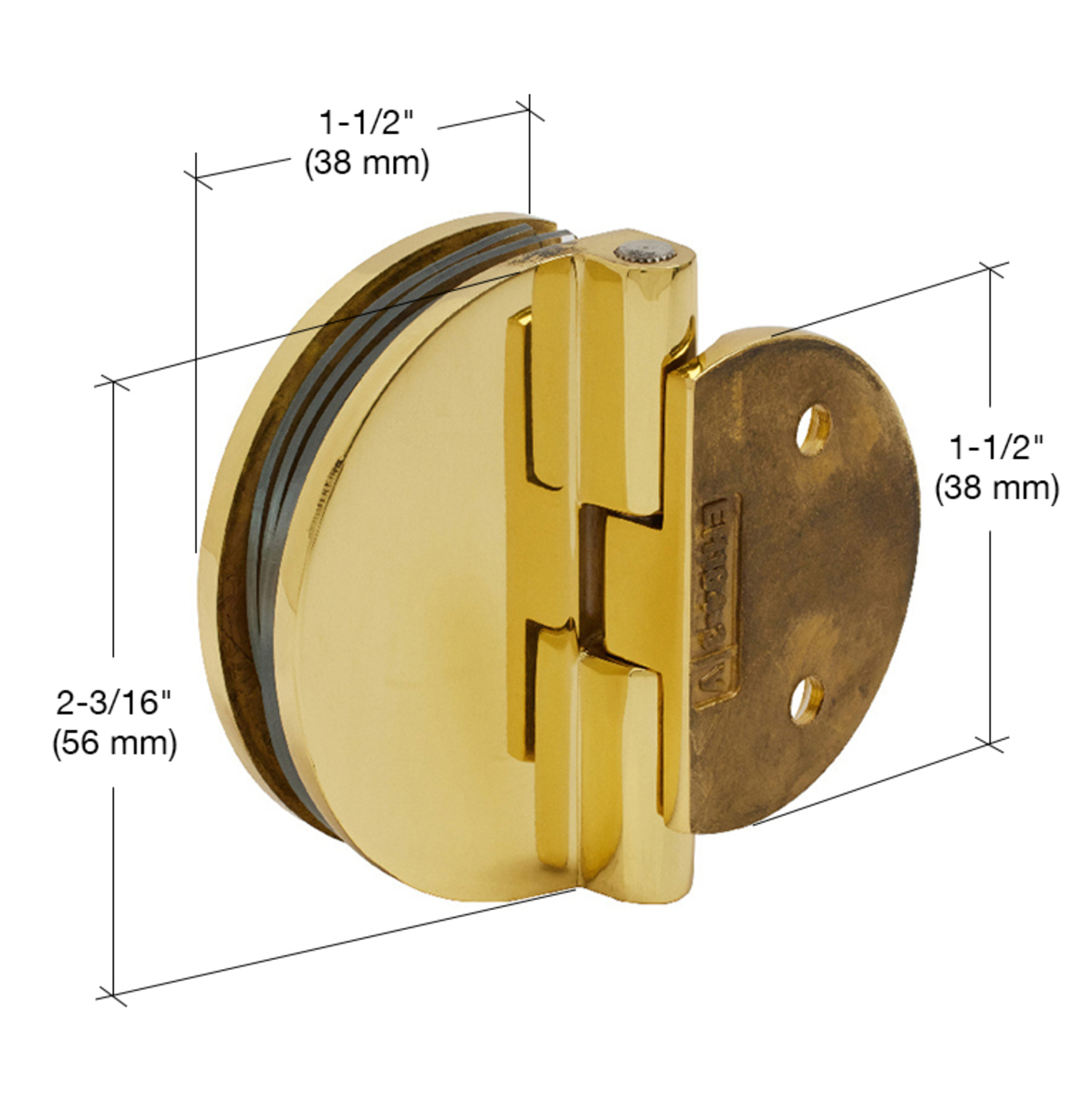

Height: 2-3/16 in. (56 mm)

Material: Brass

Maximum Door Weight - 2 Hinges: 50 lbs. (22.7 kg)

Maximum Door Weight - 3 Hinges: 75 lbs. (34 kg)

Maximum Door Width: 24 in. (610 mm)

Mounting Type: Wall Mount

Shipping Limitations: None

Width: 1-1/2 in. (38 mm)
