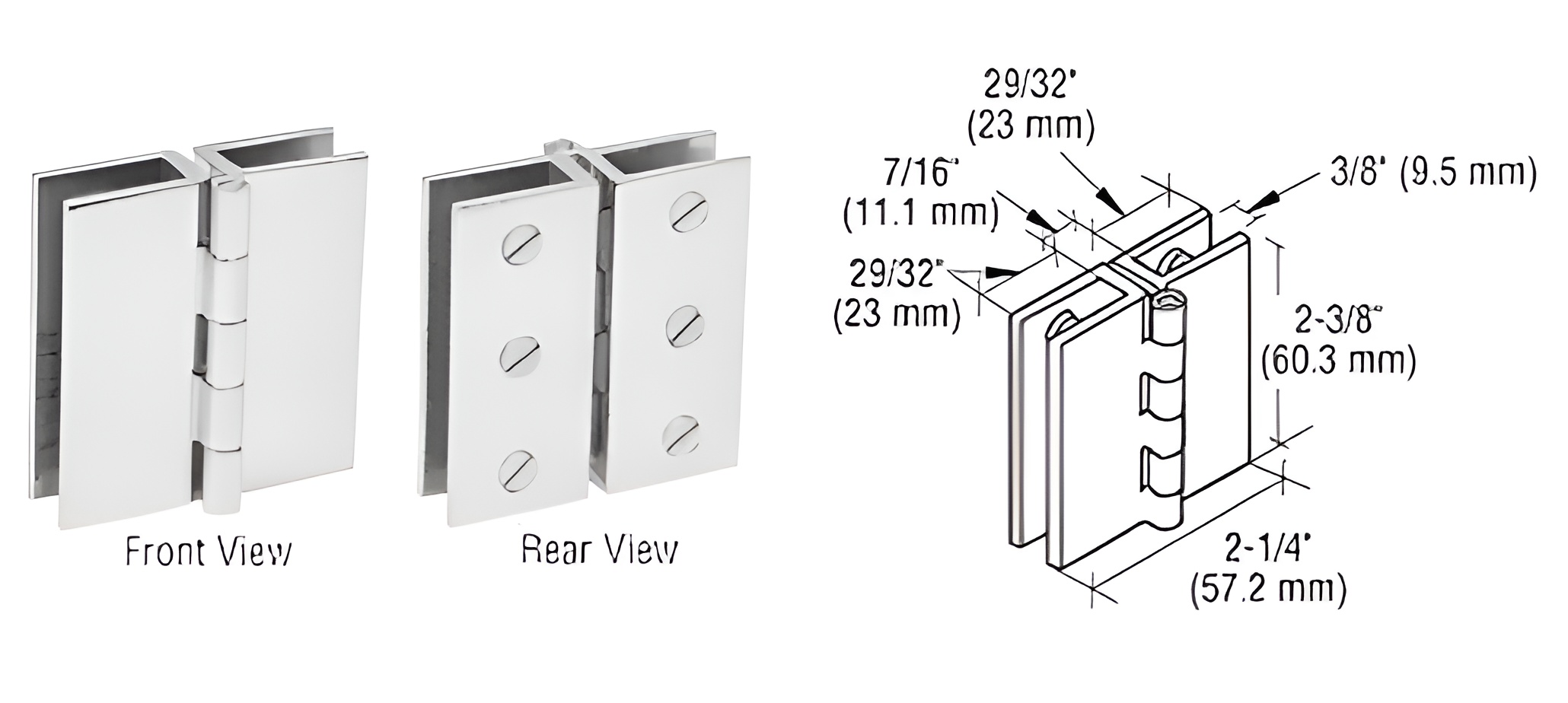

C.R. Laurence EH192 Chrome Large Glass-to-Glass Out-Swing Set Screw Hinge is engineered for elegance and functionality, making it an ideal choice for your glass showcases and stereo cabinets. Designed to accommodate 1/4" to 5/16" (6 mm to 8 mm) thick monolithic tempered glass, this hinge ensures a seamless connection between glass panels without the need for holes or cut-outs. Featuring a polished chrome finish, the hinge not only enhances the aesthetic appeal of your installation but also provides robust durability thanks to its brass construction. Each hinge can support a maximum door width of 18" (457 mm) and a weight capacity of up to 20 lbs. (9 kg), making it suitable for a variety of applications. The unique design utilizes plastic-tipped set screws for a no-drill attachment, simplifying installation while maintaining a clean look. Packaged with two hinges per order, the C.R. Laurence EH192 is versatile and easy to work with. With dimensions of 2-3/8" (60.3 mm) in height and an open width of 2-1/4" (57.2 mm), these hinges are designed to deliver both style and strength. Elevate your project with the reliability and sophistication of C.R. Laurence hardware.
Chrome Large Glass-to-Glass Out-Swing Set Screw Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 2-3/8 in. (60.3 mm)
Material: Brass
Maximum Door Width: 18 in. (457.2 mm)
Open Width: 2-1/4 in. (57.2 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 20 lbs. (9.1 kg)
