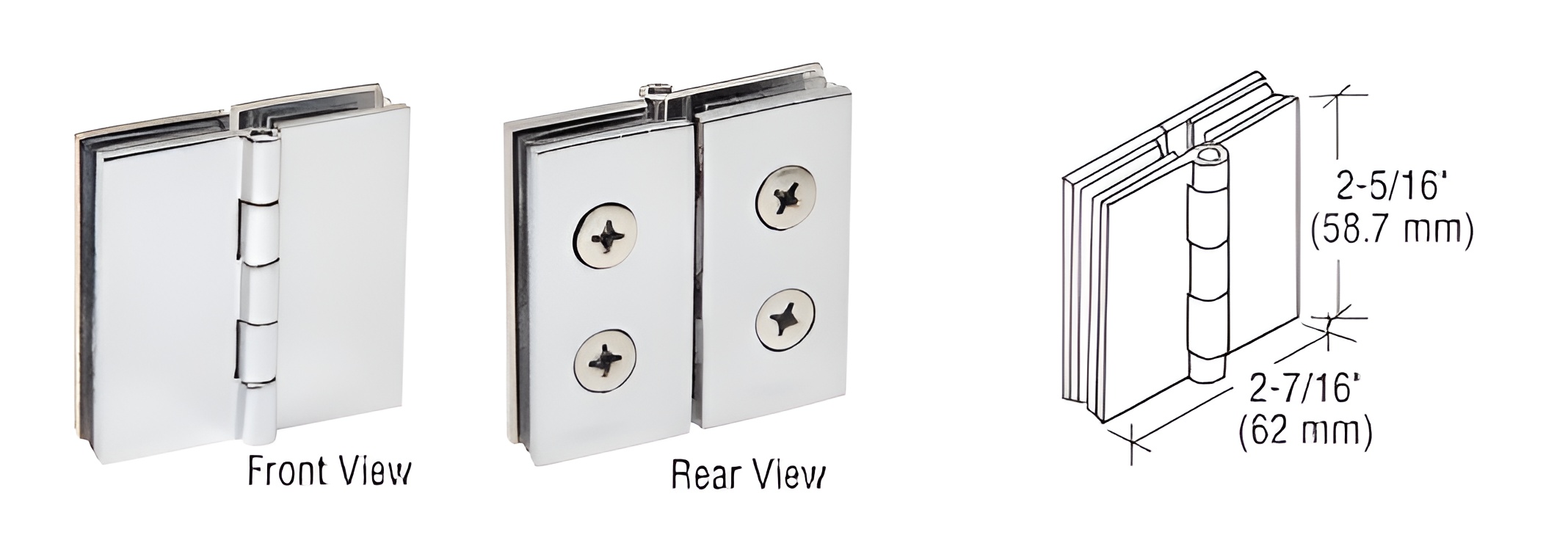

C.R. Laurence EH242 Chrome 180 Degree Glass-to-Glass Hinge is expertly crafted for seamless glass-to-glass inline applications. Designed to accommodate 1/4" to 5/16" (6 to 8 mm) tempered glass, this hinge ensures a robust and stylish installation. With a polished chrome finish, it adds a modern touch to any space while maintaining durability. Constructed from high-quality forged brass, the EH242 hinge features a screw attachment for secure mounting, requiring four 1/2" (12 mm) holes in the glass. Each package includes one hinge, with a maximum door width of 22" (559 mm) and a weight capacity of 30 lbs. (13.6 kg), making it ideal for a variety of applications. Additionally, clear vinyl pad inserts protect the glass, preventing scratches and ensuring longevity. The hinge opens to a width of 2-7/16 in. (61.9 mm) and stands at a height of 2-5/16 in. (58.7 mm), providing a sleek profile that complements any design aesthetic. The C.R. Laurence EH242 hinge is perfect for professionals seeking reliable and stylish solutions for glass installations, delivering both functionality and elegance in one package.
Chrome 180 Degree Glass-to-Glass Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 2-5/16 in. (58.7 mm)
Material: Brass
Maximum Door Width: 22 in. (558.8 mm)
Open Width: 2-7/16 in. (61.9 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 30 lbs. (13.6 kg)
