CRL EH244 Brass Double Wall-to-Glass Hinges

C.R. Laurence EH244 Brass Double Wall-to-Glass Hinges offer a robust and stylish solution for wall-mounted tempered glass applications. Crafted from high-quality forged brass, these hinges ensure durability and long-lasting performance. Designed for glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), they require two 1/2" (12 mm) holes for secure mounting. Each package contains two hinges, making them ideal for various installations. With a maximum recommended door width of 22" (559 mm) and a weight capacity of up to 30 lbs. (13.6 kg), these hinges provide reliable support for your glass doors while maintaining an elegant look. The clear vinyl pad inserts protect glass surfaces, preventing scratches and enhancing longevity. Available in a polished brass finish with a lacquered coating or chrome plating, the EH244 hinges complement a wide range of architectural styles. However, it's important to note that brass finishes can be prone to oxidation, which may lead to a tarnished appearance over time. With no shipping limitations and the ability to ship via UPS, these hinges are a practical choice for building professionals and discerning homeowners alike. Elevate your glass installations with the trusted quality of C.R. Laurence.

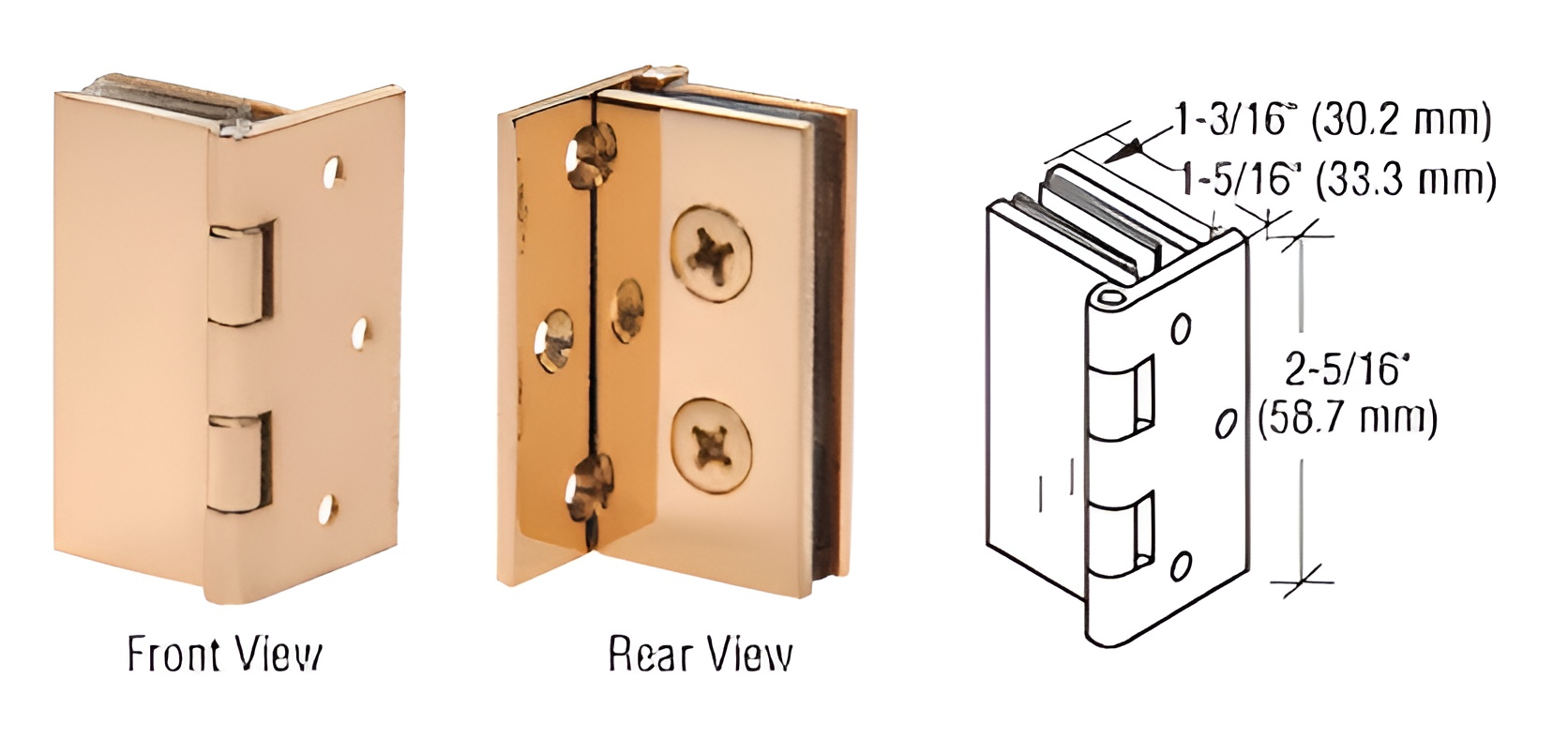

Brass Double Wall-to-Glass Hinges

• For 1/4" to 5/16" (6 to 8 mm) Glass
• Two Per Package
• Two 1/2" (12 mm) Holes Required

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• EH244 EH246 Glass Fabrication Drawings.dwg
• EH244 EH246 Glass Fabrication Drawings.pdf
• Glass Fabrication Details eh244 glass fab.dwg
• Glass Fabrication Details eh244 glass fab.pdf
