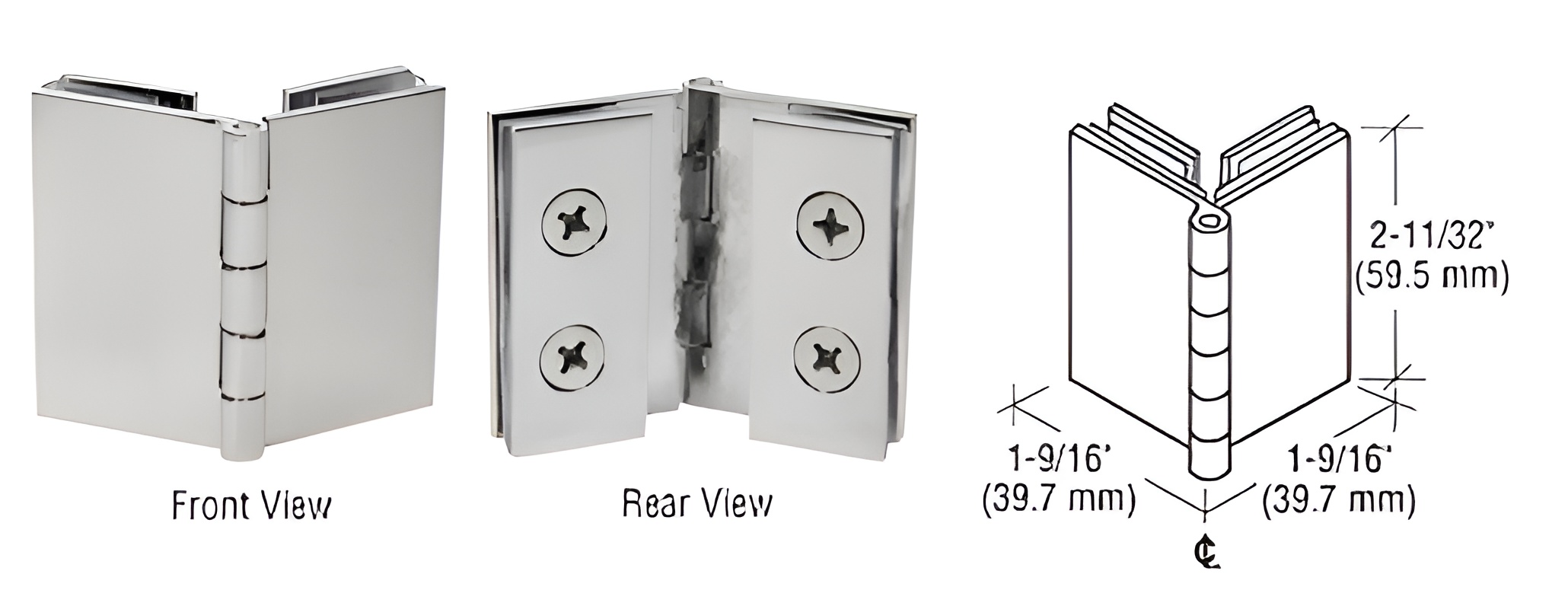

C.R. Laurence EH253 Brushed Nickel Double Glass-to-Glass 90 Degree Return Hinge offers a sleek and sturdy solution for your glass installation needs. Designed specifically for glass-to-glass applications, this hinge accommodates glazing thicknesses ranging from 1/4" to 5/16" (6 mm to 8 mm), ensuring compatibility with various glass types. Constructed from durable brass with a brushed nickel finish, the hinge not only provides aesthetic appeal but also reliable long-term performance. Each package includes two hinges, allowing for a complete installation. The design requires four 1/2" (12 mm) holes in the glass for secure mounting, making installation straightforward for professionals and DIY enthusiasts alike. With a maximum door width of 22" (558.8 mm) and a weight capacity of up to 30 lbs. (13.6 kg), the EH253 hinge is engineered to support a variety of glass door configurations. Clear vinyl pad inserts protect the glass from damage, ensuring a clean finish. Whether you are enhancing a modern shower enclosure or creating a stylish glass partition, the C.R. Laurence EH253 hinge combines functionality and elegance, making it an essential component for your architectural projects.
Brushed Nickel Double Glass-to-Glass 90 Degree Return Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 2-11/32 in. (59.5 mm)
Material: Brass
Maximum Door Width: 22 in. (558.8 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 30 lbs. (13.6 kg)
Width: 1-9/16 in. (39.7 mm)
