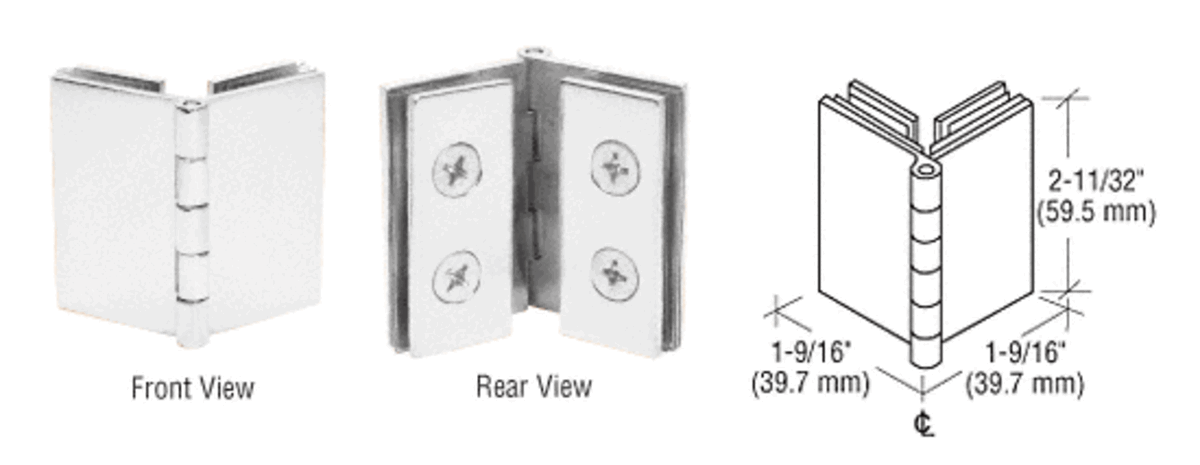

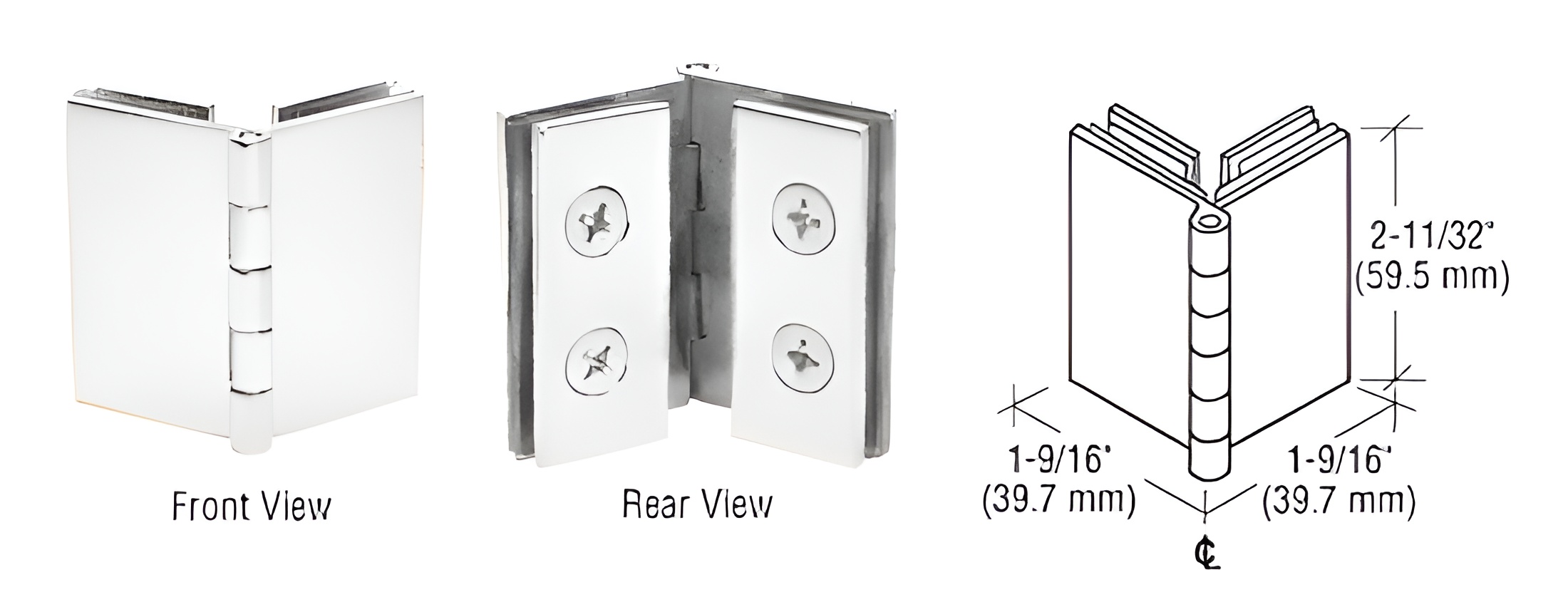

C.R. Laurence EH254 Chrome Double Glass-to-Glass 90 Degree Return Hinge offers a robust solution for your glass installation needs. Designed specifically for glass-to-glass 90-degree return applications, this hinge accommodates glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), ensuring compatibility with various glass setups. Each package includes two hinges, allowing for seamless installation and functionality. Crafted from high-quality forged brass, the EH254 hinge features a polished chrome finish that not only enhances its aesthetic appeal but also provides durability and resistance to wear. Clear vinyl pad inserts safeguard the glass from scratches and damage during operation. Installation is straightforward, requiring four 1/2" (12 mm) holes in the glass for secure mounting. This hinge supports a maximum door width of 22" (558.8 mm) and has a weight capacity of 30 lbs. (13.6 kg), making it suitable for a range of glass door applications. With a height of 2-11/32" (59.5 mm) and a width of 1-9/16" (39.7 mm), this hinge is designed to blend seamlessly with contemporary architectural styles. Choose C.R. Laurence EH254 for reliable performance and a polished finish in your next glazing project.
Chrome Double Glass-to-Glass 90 Degree Return Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 2-11/32 in. (59.5 mm)
Material: Brass
Maximum Door Width: 22 in. (558.8 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 30 lbs. (13.6 kg)
Width: 1-9/16 in. (39.7 mm)
